8
СТИРАЛЬНАЯ МАШИНА АВТОМАТ
AUTOMATIC WASHING MACHINE
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ • USEr GUIdE
Для слива воды непосредственно в канализацию сливной шланг машины уста-
навливается выше колена стока (сифона) в канализационную трубу с внутренним
диаметром не менее 40 мм во избежание обратного засасывания сточной воды в ма-
шину. Сливной шланг может подключаться непосредственно к сифону с патрубком.
P.10
P.11
Install Washing Machine
Install Washing Machine
2.Connect it to the branch drain pipe of the trough.
Electrical Connection
- As the maximum current through the unit is 10A when you are using its heating function,
please make sure the power supply system (current, power voltage and wire) at your
home can meet the normal loading requirements of the electrical appliances.
- Please connect the power to a socket which is correctly installed and properly earthed.
- Make sure the power voltage at your place is same to that in the machine's rating label.
- Power plug must matc
h the socket and cabinet must be properly and effectively earthed.
- Do not use multi-purpose plug or socket as extension cord.
- Do not connect and pull out plug with wet hand.
- When connecting and pulling out the plug, hold the plug tightly and then pull it out. Do
not pull power cord forcibly.
- If power cord is damaged or has any sign of being broken, special power cord must be
selected or purchased from its manufacturer or service center for replacement.
1.This machine must be earthed properly. If there is any short circuit, earthing can reduce
the danger of electrical shock.
This machin
e is equipped with power cord, which includes plug, earthing wire at earthing
terminal.
2.Washing machine shall be operated in a circuit separate from other electrical appliances.
Otherwise, power protector may be tripped or fuse may be burned out.
Operate Washing Machine
Checklist and Preparation before Washing Clothes
Please read this operation method carefully to avoid the troubles of washing machine and
damages of clothes.
Check if the first-washed clothes will bed decolorized.
After a white towel touched with liquid detergent is used to wash the invisible corners of the
clothes, check if the white towel is stained with
clothes' original color.
As for the scarves and those clothes that easily
get decolorized among imported clothes, please
wash them separately before washing.
As for the stains on sleeves, collars and pockets
,
use the liquid detergent and wash it with brush
gently. Finally put them into the washing machine
to achieve more ideal washing effects.
As for temperature-sensitive clothes, they shall
be washed as required in the labels. Otherwise,
it may cause color change or distortion.
Keep in Mind:
Never put the clothes to be washed in washing machine for a long period of time.
Otherwise it may get moldy and cause spots. Therefore, please wash the clothes in time.
The clothes also may get color changed or distorted if they are not washed according to
the stated washing temperature.
Cloth
es that can not be washed by washing machine
The clothes that may get distorted if being immersed in water:
Ties, waistcoats, western-style clothes, outer garments etc. may have obvious shrinkage
if being immersed in water; the decolorized clothes such as blended spinning clothes of
artificial fiber etc.
！
WARNING
Max.100cm
Min.60cm
Min.60cm
Max.100cm

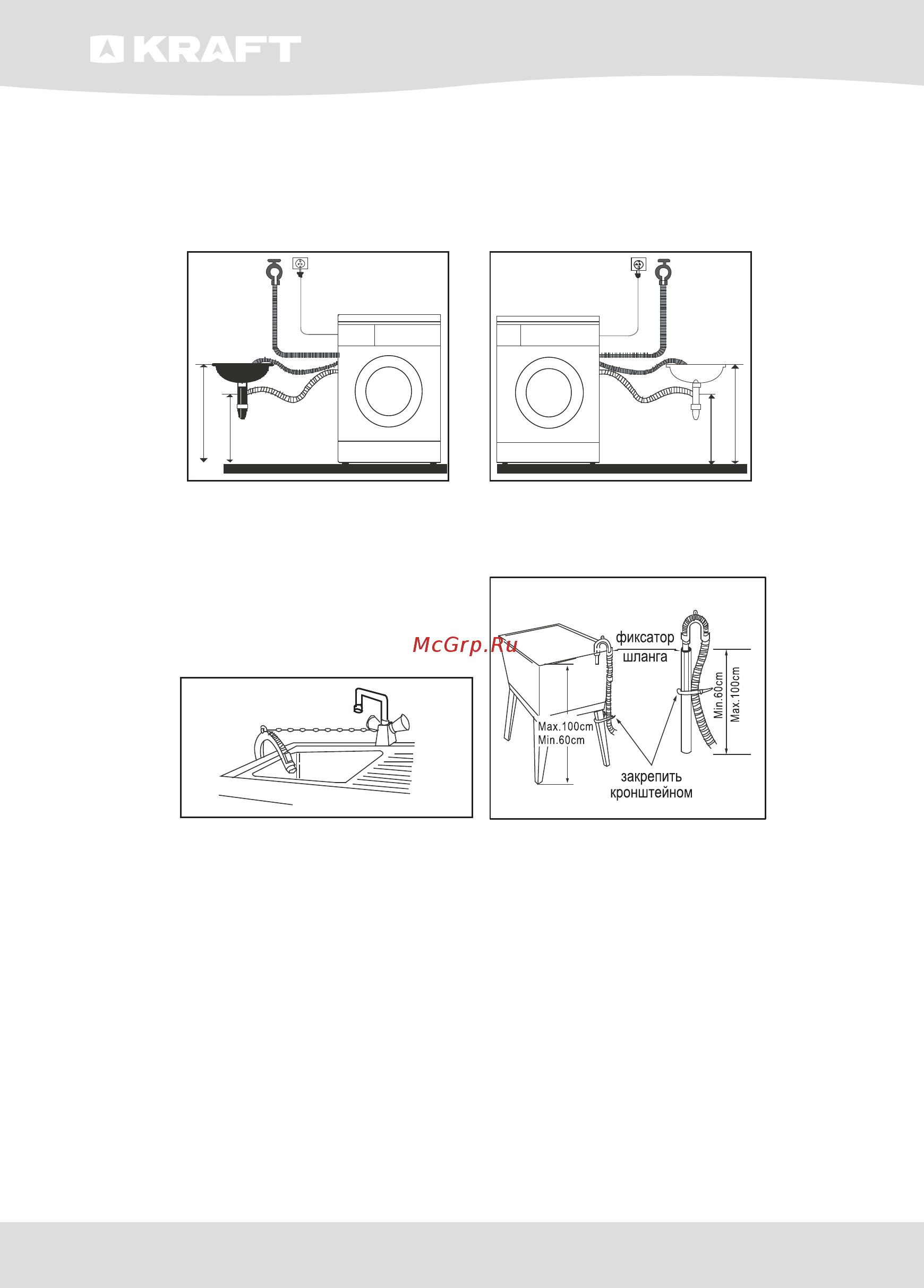

Position outlet hose properly so that the floor will not be damaged by water leakage.
- When installing outlet hose, fix it
properly with a rope.
- Position outlet hose properly so that
the floor will not be damaged by water
leakage.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
- If outlet hose is too long, do not force
it into washing machine as it will cause
abnormal noises.
Notes:
If the machine has
outlet hose support, please install it like the following pictures.
При сливе воды в мойку или ванну шланг необходимо закрепить в месте пере-
гиба специальным кронштейном, входящим в комплект поставки. Шланг не должен
быть погружен в воду!
P.10
P.11
Install Washing Machine
Install Washing Machine
2.Connect it to the branch drain pipe of the trough.
Electrical Connection
- As the maximum current through the unit is 10A when you are using its heating function,
please make sure the power supply system (current, power voltage and wire) at your
home can meet the normal loading requirements of the electrical appliances.
- Please connect the power to a socket which is correctly installed and properly earthed.
- Make sure the power voltage at your place is same to that in the machine's rating label.
- Power plug must matc
h the socket and cabinet must be properly and effectively earthed.
- Do not use multi-purpose plug or socket as extension cord.
- Do not connect and pull out plug with wet hand.
- When connecting and pulling out the plug, hold the plug tightly and then pull it out. Do
not pull power cord forcibly.
- If power cord is damaged or has any sign of being broken, special power cord must be
selected or purchased from its manufacturer or service center for replacement.
1.This machine must be earthed properly. If there is any short circuit, earthing can reduce
the danger of electrical shock.
This machin
e is equipped with power cord, which includes plug, earthing wire at earthing
terminal.
2.Washing machine shall be operated in a circuit separate from other electrical appliances.
Otherwise, power protector may be tripped or fuse may be burned out.
Operate Washing Machine
Checklist and Preparation before Washing Clothes
Please read this operation method carefully to avoid the troubles of washing machine and
damages of clothes.
Check if the first-washed clothes will bed decolorized.
After a white towel touched with liquid detergent is used to wash the invisible corners of the
clothes, check if the white towel is stained with
clothes' original color.
As for the scarves and those clothes that easily
get decolorized among imported clothes, please
wash them separately before washing.
As for the stains on sleeves, collars and pockets
,
use the liquid detergent and wash it with brush
gently. Finally put them into the washing machine
to achieve more ideal washing effects.
As for temperature-sensitive clothes, they shall
be washed as required in the labels. Otherwise,
it may cause color change or distortion.
Keep in Mind:
Never put the clothes to be washed in washing machine for a long period of time.
Otherwise it may get moldy and cause spots. Therefore, please wash the clothes in time.
The clothes also may get color changed or distorted if they are not washed according to
the stated washing temperature.
Cloth
es that can not be washed by washing machine
The clothes that may get distorted if being immersed in water:
Ties, waistcoats, western-style clothes, outer garments etc. may have obvious shrinkage
if being immersed in water; the decolorized clothes such as blended spinning clothes of
artificial fiber etc.
！
WARNING
Max.100cm
Min.60cm
Min.60cm
Max.100cm
Position outlet hose properly so that the floor will not be damaged by water leakage.
- When installing outlet hose, fix it
properly with a rope.
- Position outlet hose properly so that
the floor will not be damaged by water
leakage.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
- If outlet hose is too long, do not force
it into washing machine as it will cause
abnormal noises.
Notes:
If the machine has
outlet hose support, please install it like the following pictures.
Подсоединение к электросети
Машина должна подключаться к электрической сети через отдельную двухполюс-
ную розетку с контактом заземления, допустимый ток которой не менее 16 А. К ро-
зетке должен быть подведен трехпроводной кабель с медными жилами сечением
не менее 1,5 мм
2
или алюминиевыми жилами сечением не менее 2,5 мм
2
. Фазный
провод должен быть подключен через отдельное автоматическое устройство за-
щиты электрической сети, рассчитанное на максимальный ток (ток срабатывания)
16 А, с временем срабатывания не более 0,1 с и током отсечки 30 мА.
Подсоединение стиральной машины к электрической сети (сетевая розетка)
должно располагаться в доступном и удобном для пользователя месте!
Стиральная машина должна подсоединяться к электросети только при помощи
правильно установленной розетки с заземляющим контактом!
Запрещается использовать для подсоединения удлинитель!
По вопросу замены поврежденного кабеля питания обращайтесь в авторизован-
ный сервисный центр.
