MSI Z270 GAMING M5 [39/113] Jaud1 front audio connector

Overview of Components

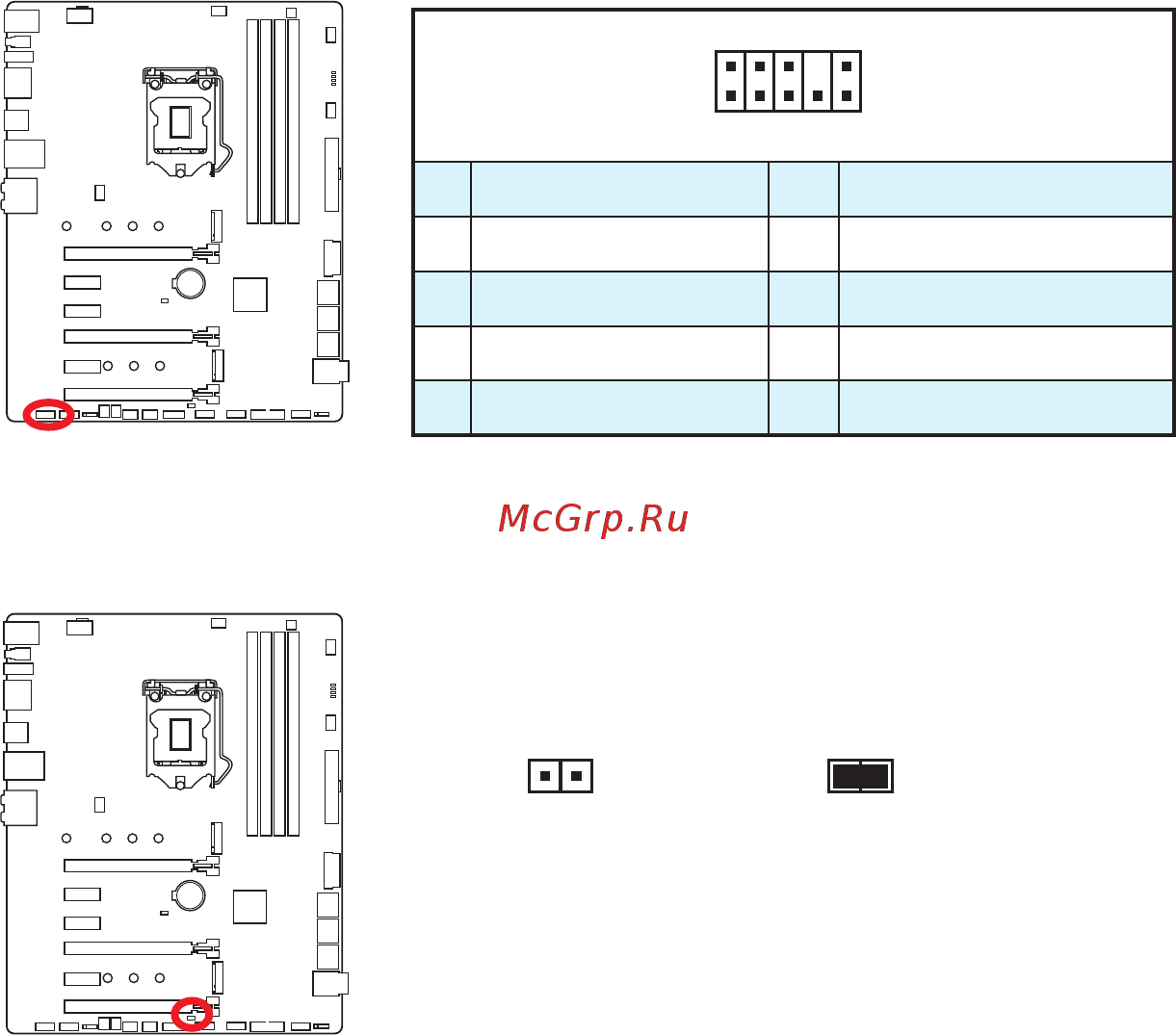

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

2 10

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L

Head Phone Detection

JCI1: Chassis Intrusion Connector

This connector allows you to connect the chassis intrusion switch cable.

Normal

(default)

Trigger the chassis

intrusion event

Using chassis intrusion detector

1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.

2. Close the chassis cover.

3. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.

4. Set Chassis Intrusion to Enabled.

5. Press F10 to save and exit and then press the Enter key to select Yes.

6. Once the chassis cover is opened again, a warning message will be displayed on

screen when the computer is turned on.

Resetting the chassis intrusion warning

1. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.

2. Set Chassis Intrusion to Reset.

3. Press F10 to save and exit and then press the Enter key to select Yes.
