ENGLISH

Connection

Attention: Before connecting DVD player to any other equipment, ensure power supply of player and other equipment is disconnected.

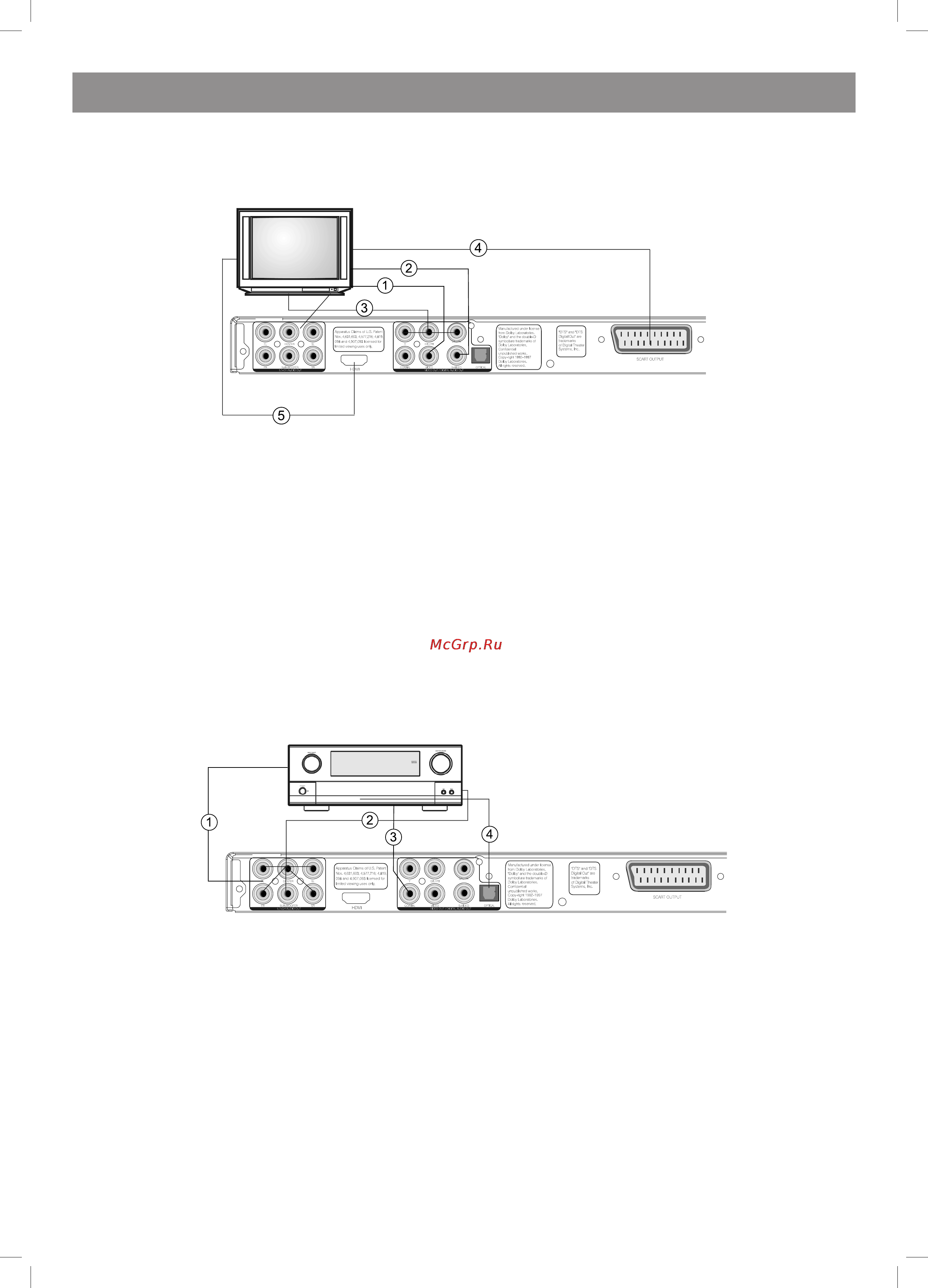

Connecting video cables

Choose the most appropriate type from the following types of connections according to capabilities of your TV-system.

(1) Composite video output

In order to display standard quality images, connect composite video output jack (VIDEO) of your DVD player to adequate input of your TV-set or

monitor using one audio-video cable (A/V) with yellow ending pins included into delivery set.

() S-Video output

In order to display high quality images connect S-VIDEO jack of your DVD player to adequate input of your TV-set or monitor using one S-Video cable

(not included into delivery set).

() Component video output

For exact color rendering and high quality picture view connect component video signal jacks Y Cb/Pb Cr/Pr (red/blue/green) to input jacks of your

TV-set using adequate cable (not included into delivery set).

(4) SCART output

Use 1-pins cable SCART (not included into delivery set) to connect SCART jack of your DVD player to the adequate jack of your TV-set.

(5) HDMI output

Special HDMI cable (included into delivery set) is used to connect DVD player to HDMI jack of TV-set. This way you can get high quality picture.

Notes:

• Parallel connection using several video outputs effects quality of image negatively.

• Only correct system connection and setting provides clear picture.

Audio System Connection

Choose the most appropriate type from the following types of connections according to capabilities of your TV-system.

(1)  channel analog audio output

Use jacks FR and FL 5.1 CH of analog audio output (5.1 CH AUDIO OUT) to connect -channel analog audio output. Switch the mode of audio output

to -channel mode (see dynamics’ setup page).

() 5.1 СН analog audio output

Use  pair of AV cables to connect 5.1-channel audio output (FL, FR, SL, SR, CENTER, SUB WOOFER) of DVD player to an adequate input (5.1) of an

amplifier/receiver.

() Coaxial digital audio output

Use special coaxial cable to connect COAXIAL jack of your DVD player to an adequate input of an amplifier.

(4) Optical digital audio output

Use special fiber optical cable to connect OPTICAL jack of your DVD player to an adequate input of an amplifier.

Note: Setup parameters should meet the type of jack used to connect DVD player to external devices.
