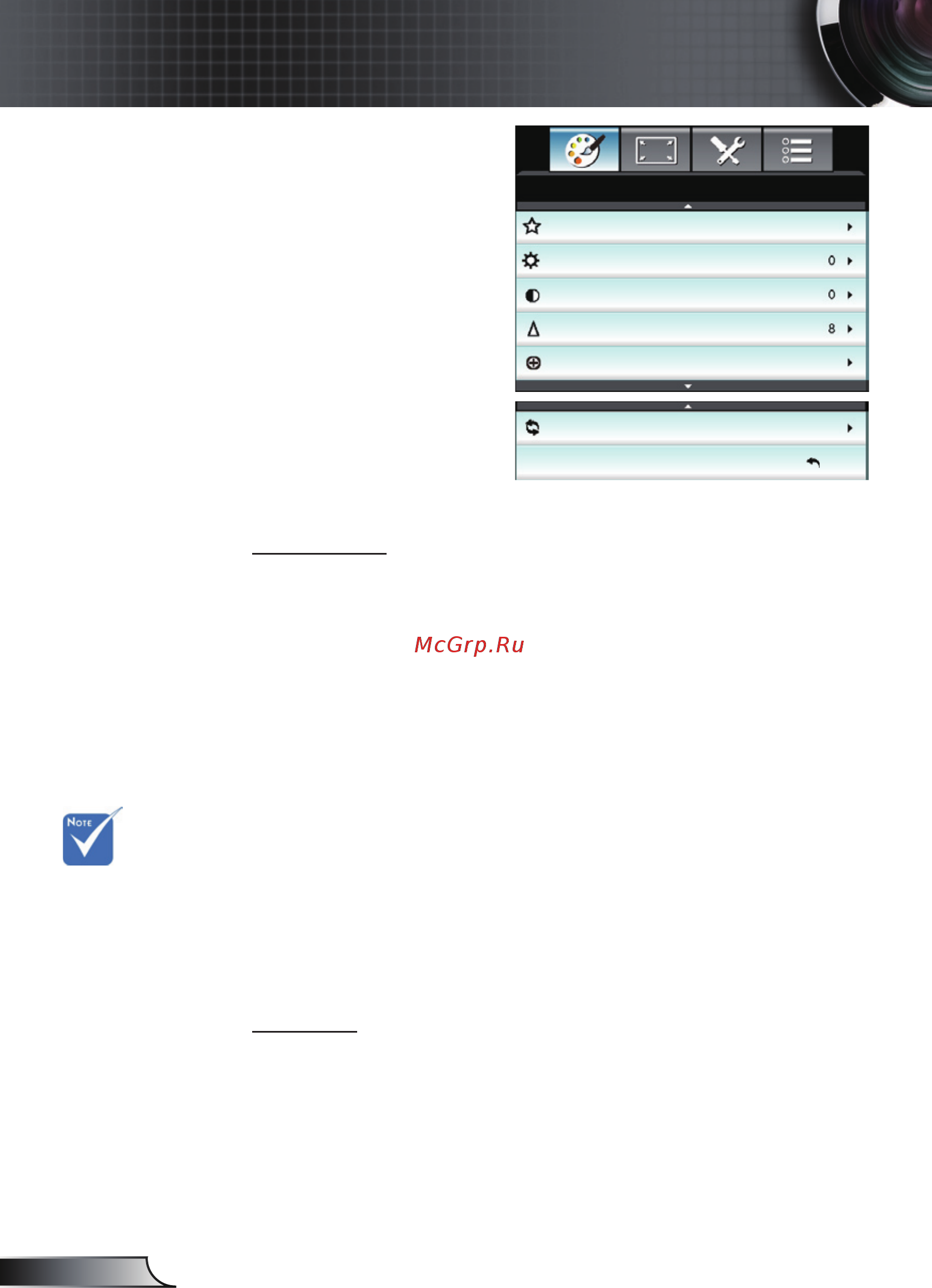

Optoma EH200ST [34/68] User controls
![Optoma EH200ST [34/68] User controls](/views2/1304320/page34/bg22.png)
34
English
User Controls
Display Mode
There are many factory presets optimized for various types of
images.
Cinema: For home theater.
Reference: This mode is intended to reproduce, as close as
possible, the image the way the movie director intended. Color,
color temperature, brightness, contrast and gamma settings are
all con gured to standard reference levels.
Vivid: Optimized to produce strikingly bright colorful images.
Bright: Maximum brightness from PC input.
3D: Recommended setting for 3D mode enabled. Any further
adjustments by the user in 3D will be saved in this mode for
further use.
User: User’s settings.
ISF Day: Optimize the image with the ISF Day mode to be
perfectly calibrated and high picture quality.
ISF Night: Optimize the image with the ISF Night mode to be
perfectly calibrated and high picture quality.
Game: For game content.
Brightness
Adjust the brightness of the image.
Press the ◄ to darken image.
Press the ► to lighten the image.
Display Mode
Brightness
Contrast
Sharpness
Advanced
Cinema
“ISF Night” will
not be shown
when the ISF
modes have not
been calibrated.
Reset
Exit
