- 38 -
o

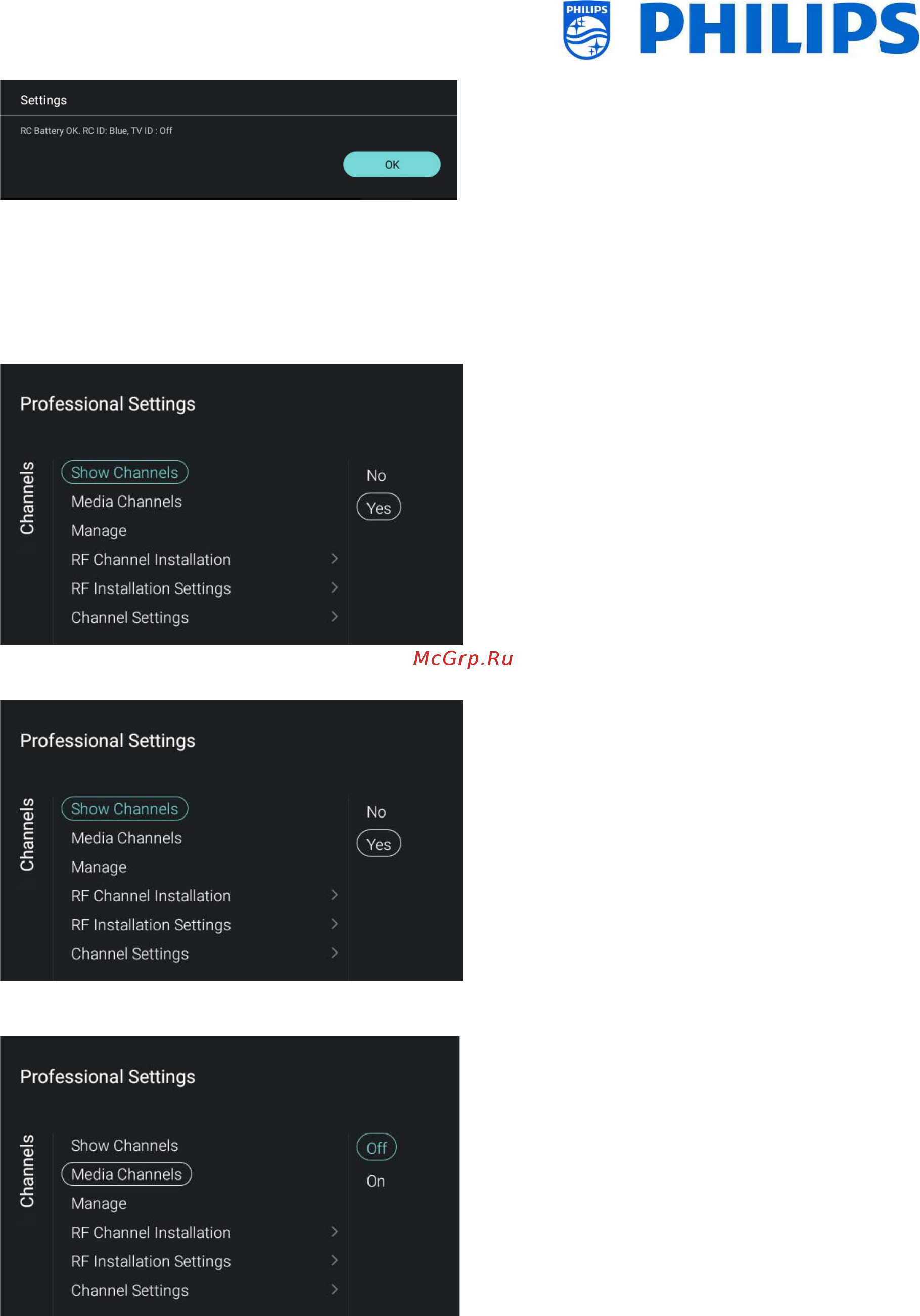

You will see the battery status of the RC, the
setting programmed in the RC (default = blue)
and the setting in TV
6.7 Channels
Navigate to the [Channels] menu and
open it
You will see the screen on the left
Navigate to the [Show Channels] menu
You will see below items:
o [No]: The channel list in the home
menu will be removed, it will not be
possible to go to any channel
o [Yes]: You will be able to access the
channel list
Navigate to the [Media Channels] menu
Note: Media channels are media files that
are mapped as channels
You will see below items:
o [Off]: Media channels will be disabled
o [On]: Media channels will be enabled
