42

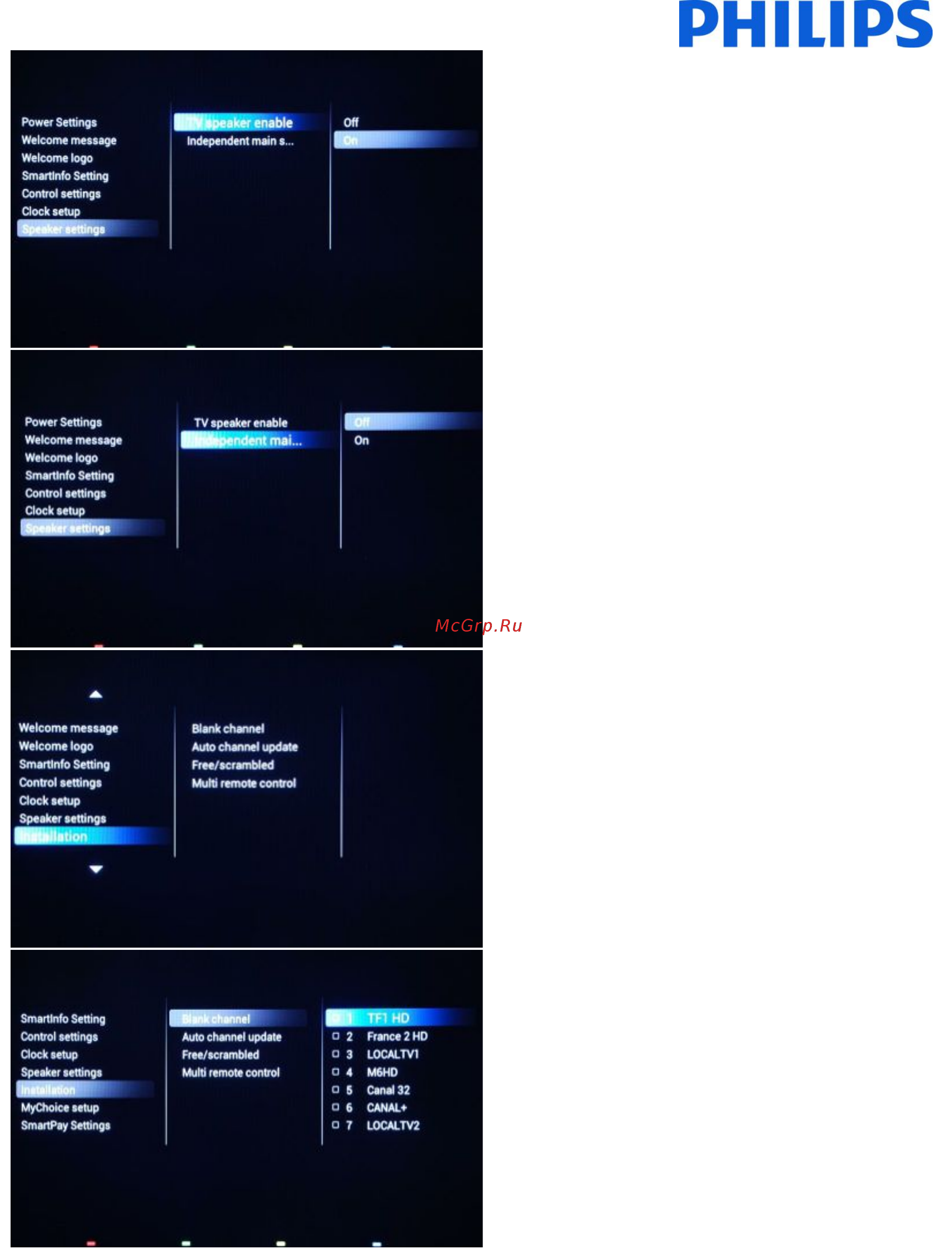

[TV speaker enable]
[Off]: Disables the TV Main speakers. The headphone
output is not affected by this setting.
[On]: Enables the TV Main speakers.
[Independent main speakers]
[Off]: The volume +/- on the Guest remote control will
affect both the TV Main speaker and the headphone
volume.
[On]: The volume +/- on the Guest remote control will
affect both the TV Main speaker and the headphone
volume.
After pressing “MUTE”, the volume +/- on the Guest
remote control will not reactivate the TV Main speaker
volume, but will only control the headphone volume.
[Installation]
Channel settings and multi remote control.
[Blank channel]
The Blank channel function disables the display of video
on the TV, but does not affect the audio output.
Selectordeselectcanbedonebypressing“OK”buttonon
the remote control.
Note: The channels marked with X will not display video on the TV.
