132
4.11 System Status
Go to "Control Panel" > "System Settings" > "System Status" to check the status of your
NAS.

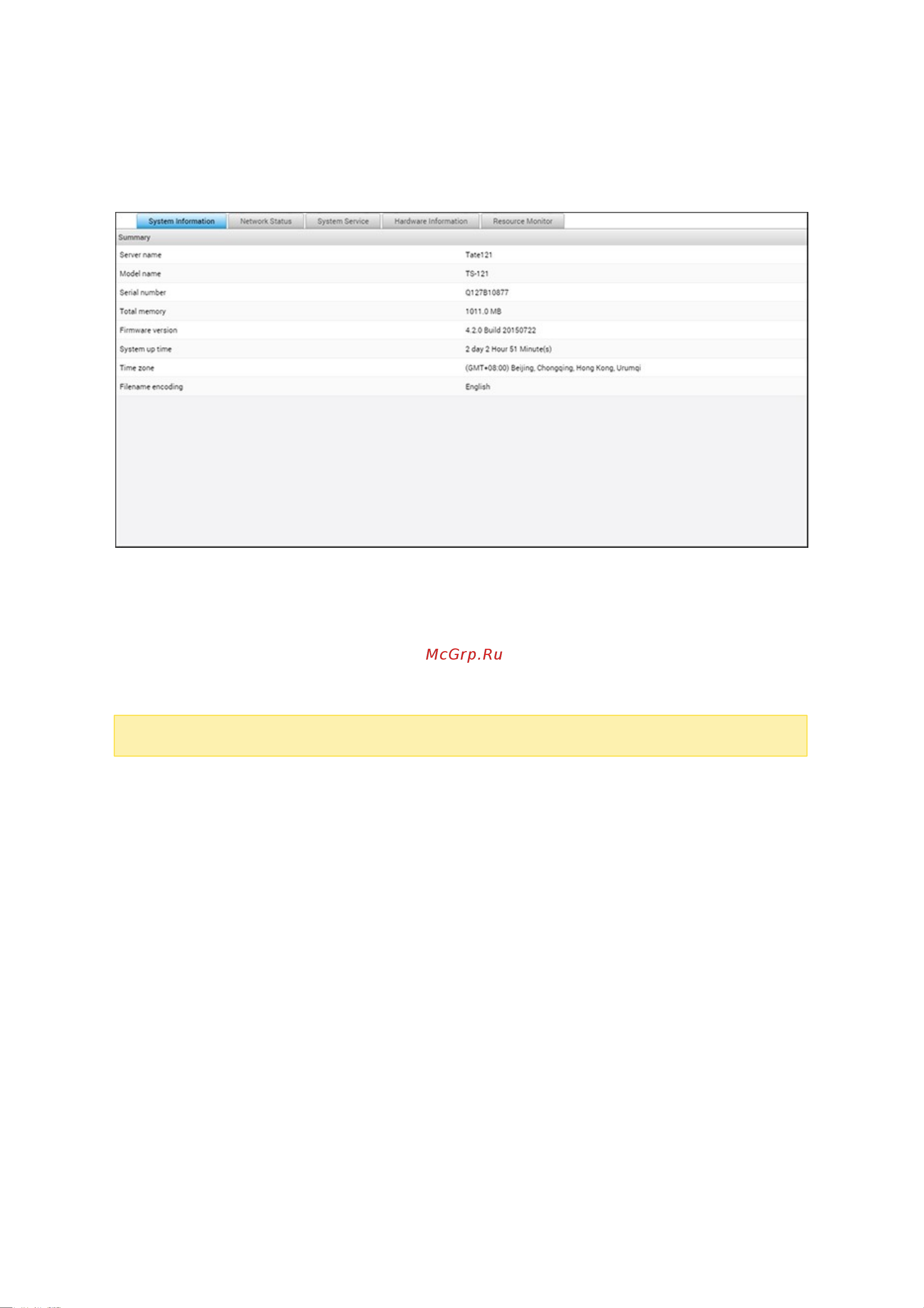

System Inform ation
View the summary of system information such as the server name, CPU, memory,
firmware and system up time on this page.
Note:
CPU and memory information is only available on certain NAS models.
Network Status
View the current network settings and statistics on this page. They are displayed based
on network interface. Click the up arrow in the top right to collapse the interface page
and the down arrow to expand it.
System Service
View the current settings of system services provided by the NAS.
Hardware Inform ation
View basic hardware information of the NAS.
