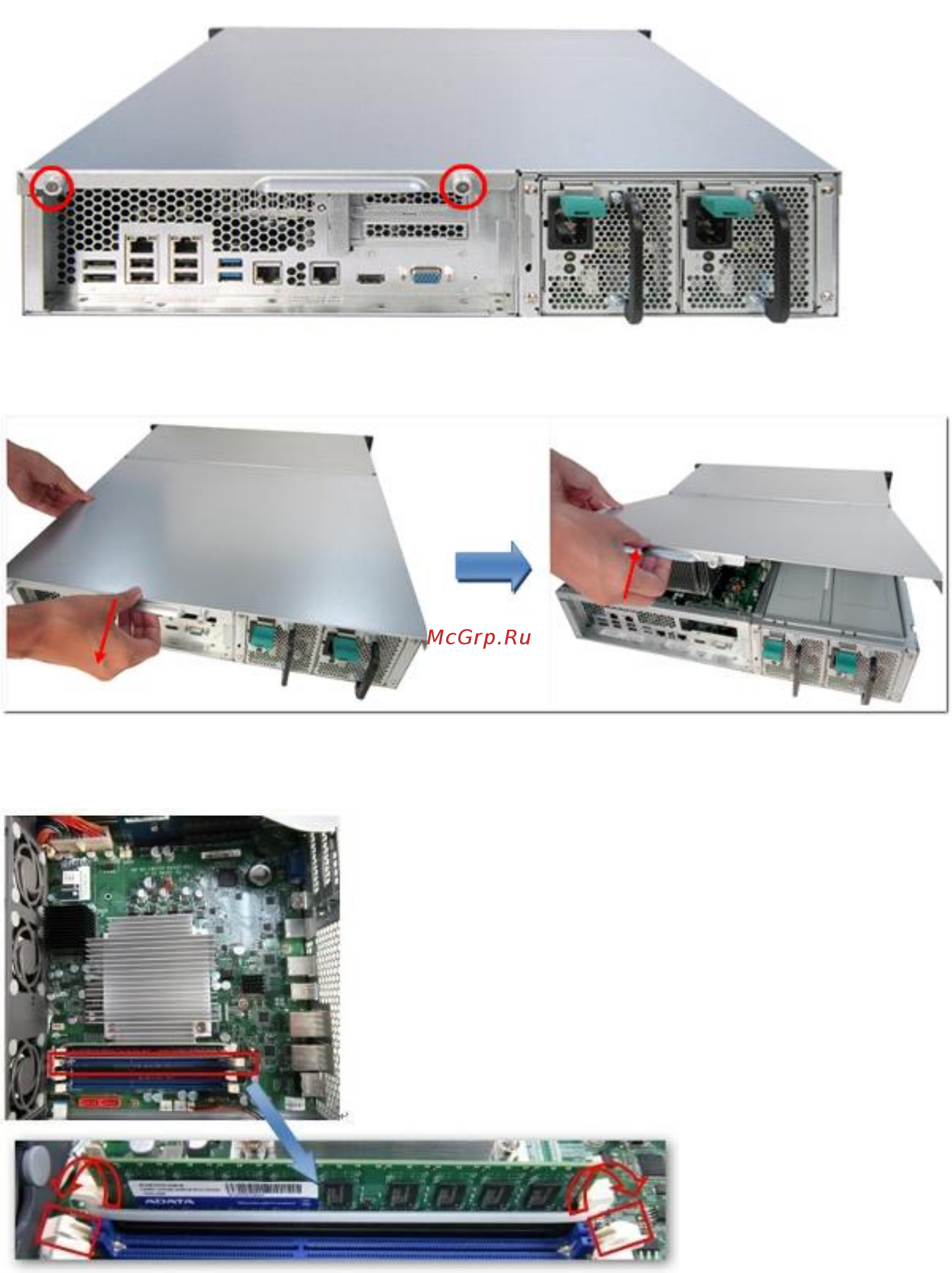

1. Loosen the 2 screws on the rear of the NAS as shown in the illustration.

2. Hold the notch at the edge of the top cover. Remove the top cover in both hands.

3. Release the ejector clips gently by pulling them out of the sides of the RAM slot.
