Compressor Operation –

Vehicle tyre inflation

Fig 1 Fig 2

Remove the Velcro retaining strap and uncoil all of the power cable on the rear of the

compressor, ensuring all the cable is unwound. Insert the 12v DC plug into the 12v

socket. (Fig 1)

Remove the dust cap from the tyre valve and store in a safe place.

Carefully pull out the air hose from the side of the compressor. Screw the valve

connector clockwise onto the tyre valve. Ensure the valve is correctly connected but do

not over tighten. (Fig 2)

Caution: Only inflate products to the manufacturer’s specifications. Vehicle

tyre pressures can generally be found in the handbook, on the door pillar or on

the inside of the fuel filler cap.

Push the ON/OFF for the compressor to start. When the pressure gauge reaches the

required value push the ON/OFF to turn OFF the compressor.

Replace the tyre valve dust cap.

Note:- The gauge on this compressor is for guidance only. Check pressure with a known

accurate gauge.

The compressor may be used without the engine running but this will drain the power

from the vehicle battery if used for long periods.

Inflatable & Leisure Inflation

Select the suitable adapter and screw into the valve connector.

Adapters are clipped onto the rear of the compressor under the coiled power cable.

Insert the connector adapter into the appropriate inlet of the inflatable

Plug the 12v DC plug into the vehicle 12v socket. (Fig 1)

Push the ON/OFF button to switch the compressor on.

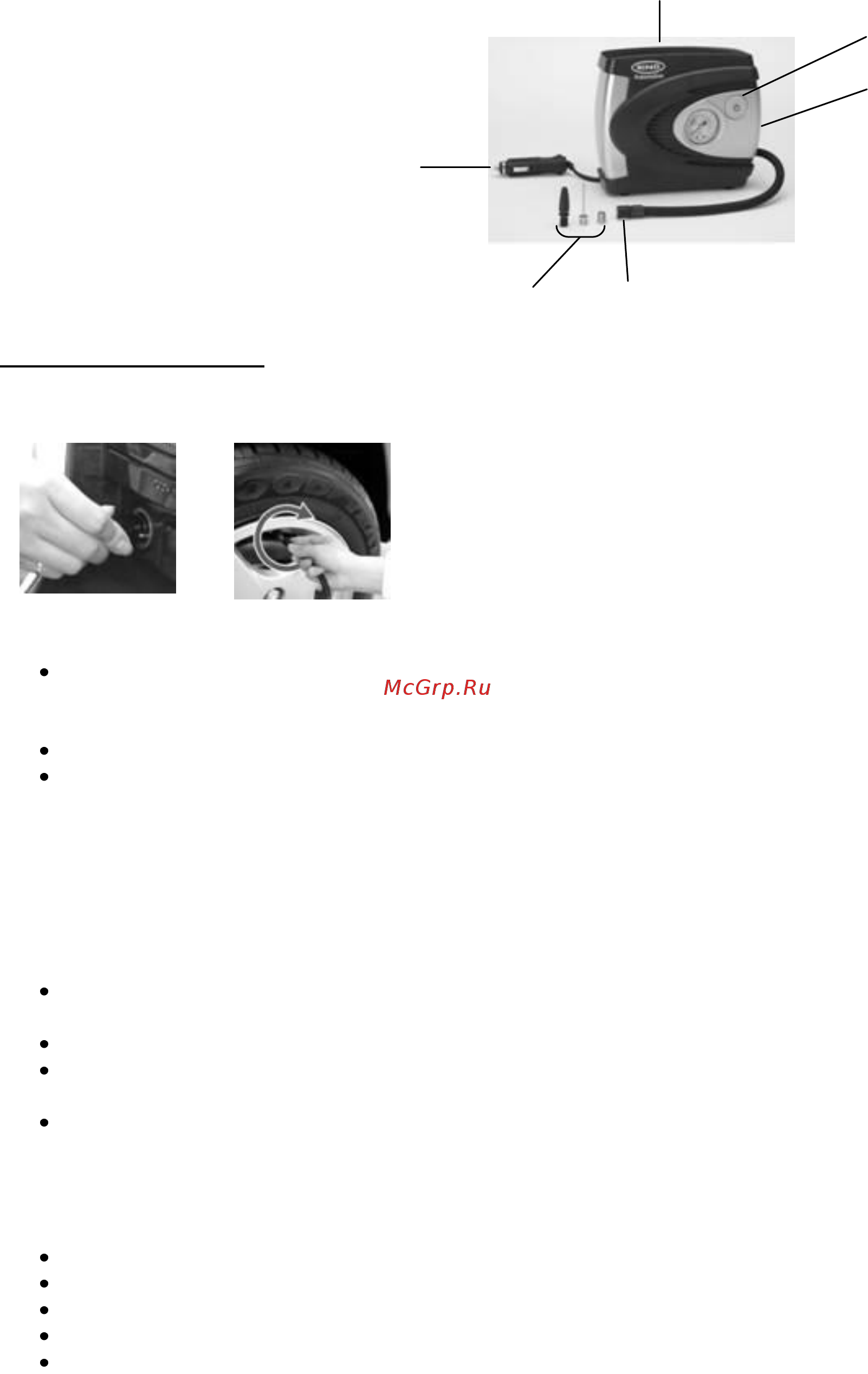

Control lay out

1) ON/OFF power button

2) Air hose stored in side compartment

3) Coiled power cable on rear

4) Fused 12v DC plug

5) Valve connector

6) 3x Valve adapters clipped on rear
