ENGLISH

Heater Stones

The main purpose of the stones in the heater unit is to store enough energy to

efficiently vaporize the water thrown on top of the stones to maintain correct

humidity in the sauna room. The stones must be replaced at least once a year

or every 500 hours which ever occurs first. All stone crumbles must be

removed from the heater unit and replaced with new ones as described in the

heater manual. The required amount of stones is also listed in the manual

provided. See page 20 (Technical Data).

NOTE! Never use the heater without stones as it may cause fire or damage

the heater. In household use recommended stones are Olivine, olivine diabase

or peridot in size less than 10 cm. Stones must be loaded into heater so that

there are space between stones for air circulation.

Vastuspidikkeet

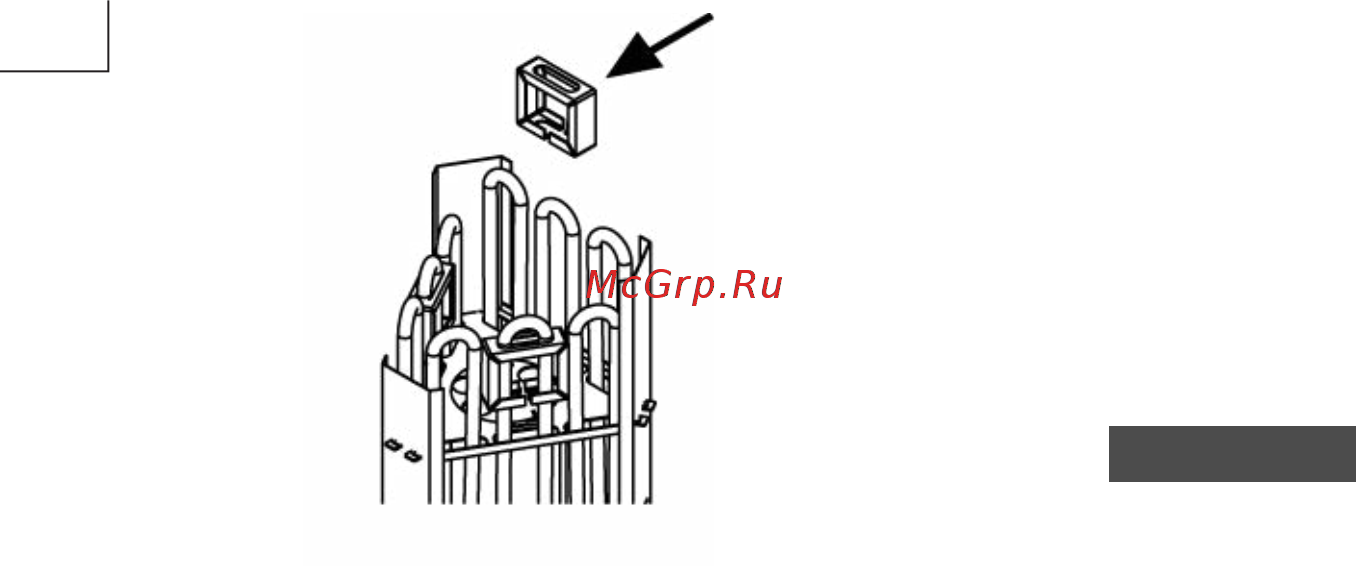

Heating element separator

Kuva. 4

Fig. 4

Loading stones into the heater

It is recommended that all stones should be rinsed to remove any stains or

dust that can cause unpleasant odor during the first few times of using the

heater. It is important that the stones are loaded carefully in a way that they

do not block air circulation through the heater. Load the stones to the heater so

that the heating elements are not visible from any angle. Make sure that the

elements don’t get bended or touch each other as a result of the loading by

properly installing the heating element spacer. Larger stones that won’t fit

between the heating elements must not be forced in place instead they must

be completely removed. Small crumble or stone pieces smaller than 35mm in

diameter must not be loaded into the heater because they will block the air

circulation and will cause overheating and possible heating element damage.

Use the three addtional heating element separator to make sure that heating

elements are in no contact with each other. Do not place stones inside the

heating element holder, but only around and on top of it. If heating elements

touch each others, it will significantly reduce the life span of heating

element.(fig.4)

NOTE! Heating element damage due to overheating caused by wrong kind of

stones or stones which were wrongly loaded into the heater is not covered by

the factory warranty.

Before the heater is filled with stones, electrician should test that the heater

works. Testing can be done by turning on the heater for a short time without

any stones and verifying that all heating elements are heating up.
