3.3.3 BIOS & Drivers
Installing BIOS or Drivers

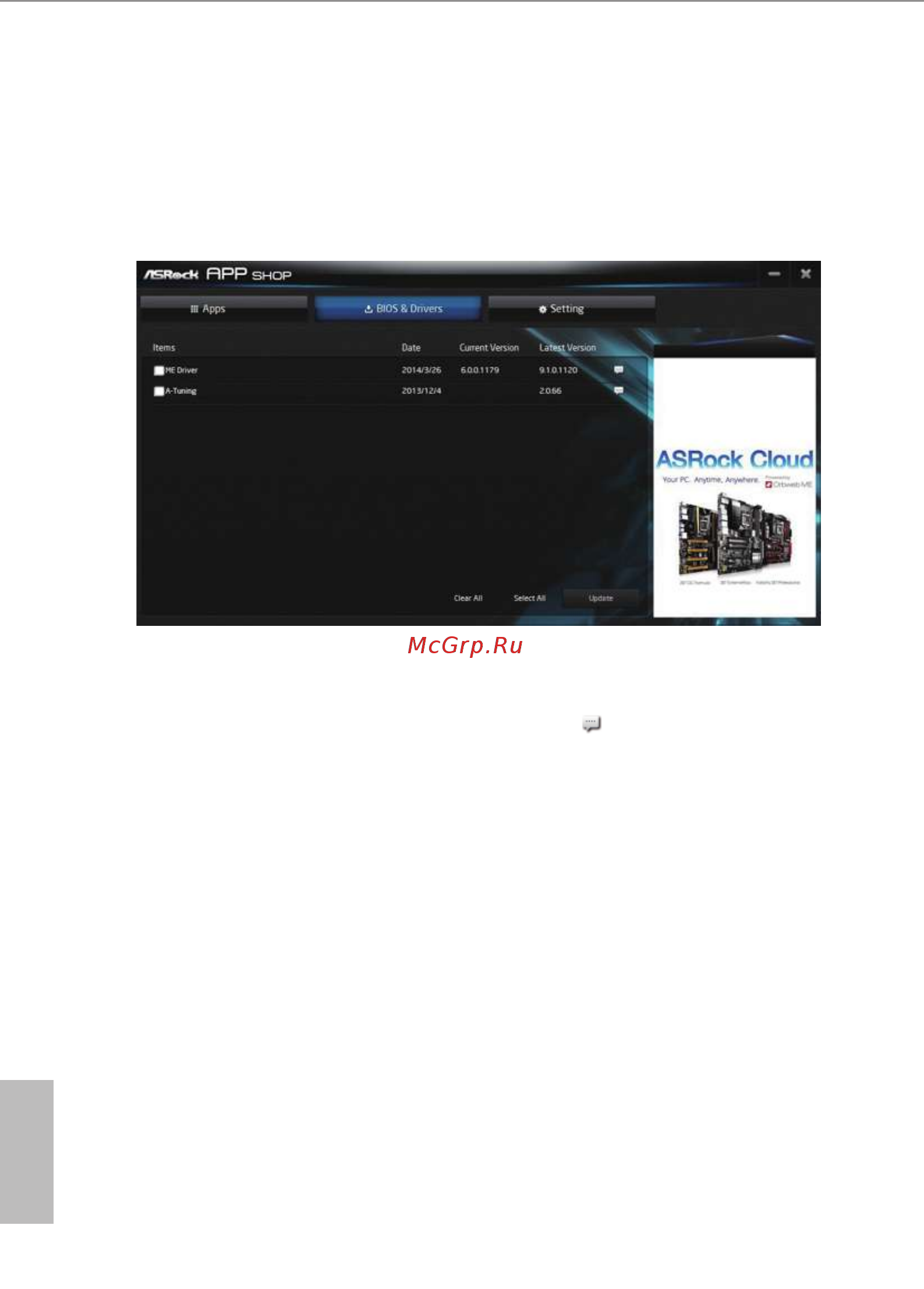

When the "BIOS & Drivers" tab is selected, you will see a list of recommended or
critical updates for the BIOS or drivers. Please update them all soon.
Step 1
Please check the item information before update. Click on
to see more details.
Step 2
Click to select one or more items you want to update.
Step 3
Click Update to start the update process.
