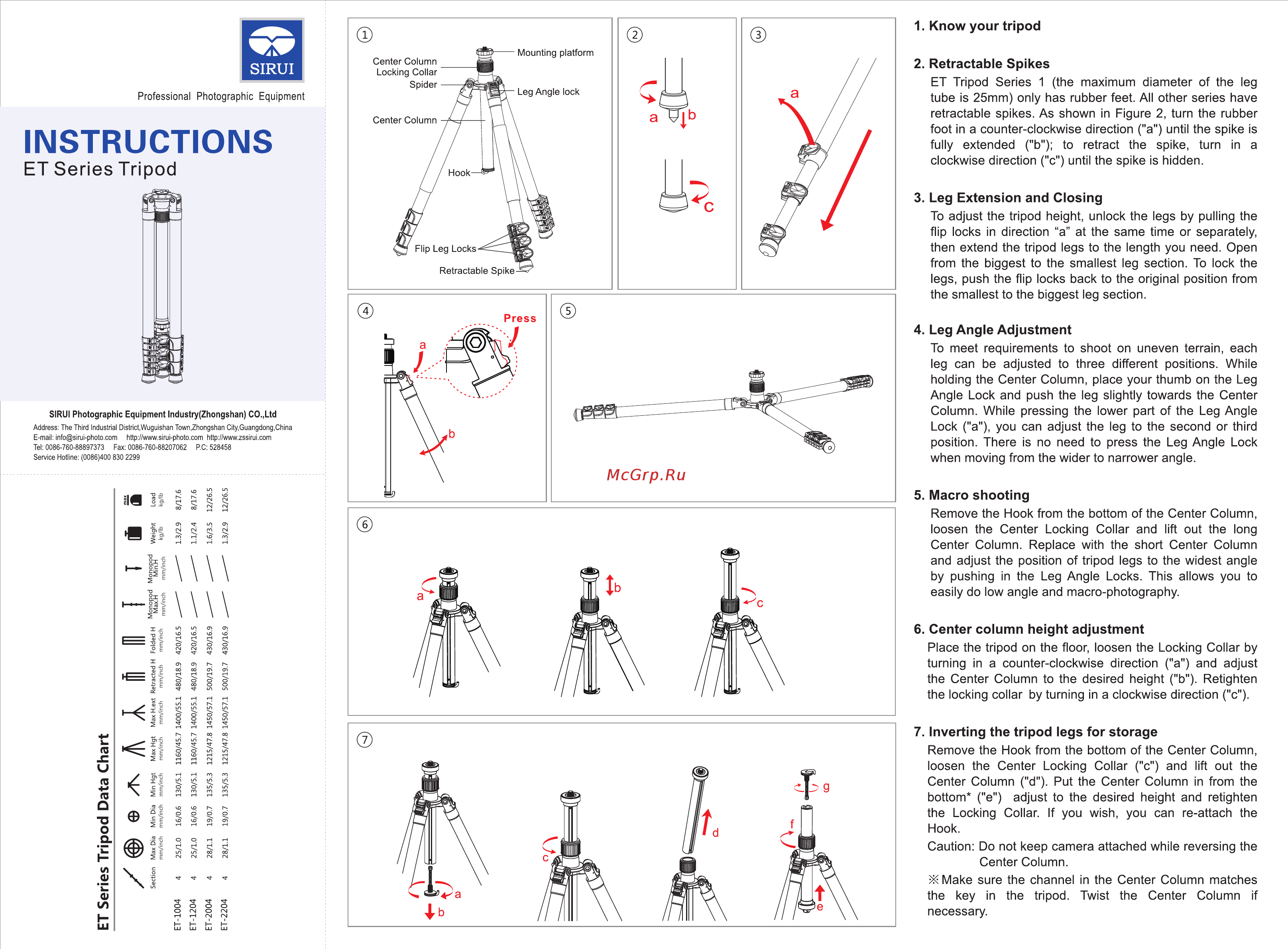

1 Know your tripod 2 Retractable Spikes Professional Photographic Equipment INSTRUCTIONS ET Series Tripod ET Tripod Series 1 the maximum diameter of the leg tube is 25mm only has rubber feet All other series have retractable spikes As shown in Figure 2 turn the rubber foot in a counter clockwise direction a until the spike is fully extended b to retract the spike turn in a clockwise direction c until the spike is hidden 3 Leg Extension and Closing To adjust the tripod height unlock the legs by pulling the flip locks in direction a at the same time or separately then extend the tripod legs to the length you need Open from the biggest to the smallest leg section To lock the legs push the flip locks back to the original position from the smallest to the biggest leg section 4 Leg Angle Adjustment SIRUI Photographic Equipment Industry Zhongshan CO Ltd Address The Third Industrial District Wuguishan Town Zhongshan City Guangdong China E mail info sirui photo com http www sirui photo comhttp www zssirui com Tel 0086 760 88897373 Fax 0086 760 88207062 P C 528458 Service Hotline 0086 400 830 2299 To meet requirements to shoot on uneven terrain each leg can be adjusted to three different positions While holding the Center Column place your thumb on the Leg Angle Lock and push the leg slightly towards the Center Column While pressing the lower part of the Leg Angle Lock a you can adjust the leg to the second or third position There is no need to press the Leg Angle Lock when moving from the wider to narrower angle 5 Macro shooting Remove the Hook from the bottom of the Center Column loosen the Center Locking Collar and lift out the long Center Column Replace with the short Center Column and adjust the position of tripod legs to the widest angle by pushing in the Leg Angle Locks This allows you to easily do low angle and macro photography 6 Center column height adjustment Place the tripod on the floor loosen the Locking Collar by turning in a counter clockwise direction a and adjust the Center Column to the desired height b Retighten the locking collar by turning in a clockwise direction c 7 Inverting the tripod legs for storage Remove the Hook from the bottom of the Center Column loosen the Center Locking Collar c and lift out the Center Column d Put the Center Column in from the bottom e adjust to the desired height and retighten the Locking Collar If you wish you can re attach the Hook Caution Do not keep camera attached while reversing the Center Column Z Make sure the channel in the Center Column matches the key in the tripod Twist the Center Column if necessary
