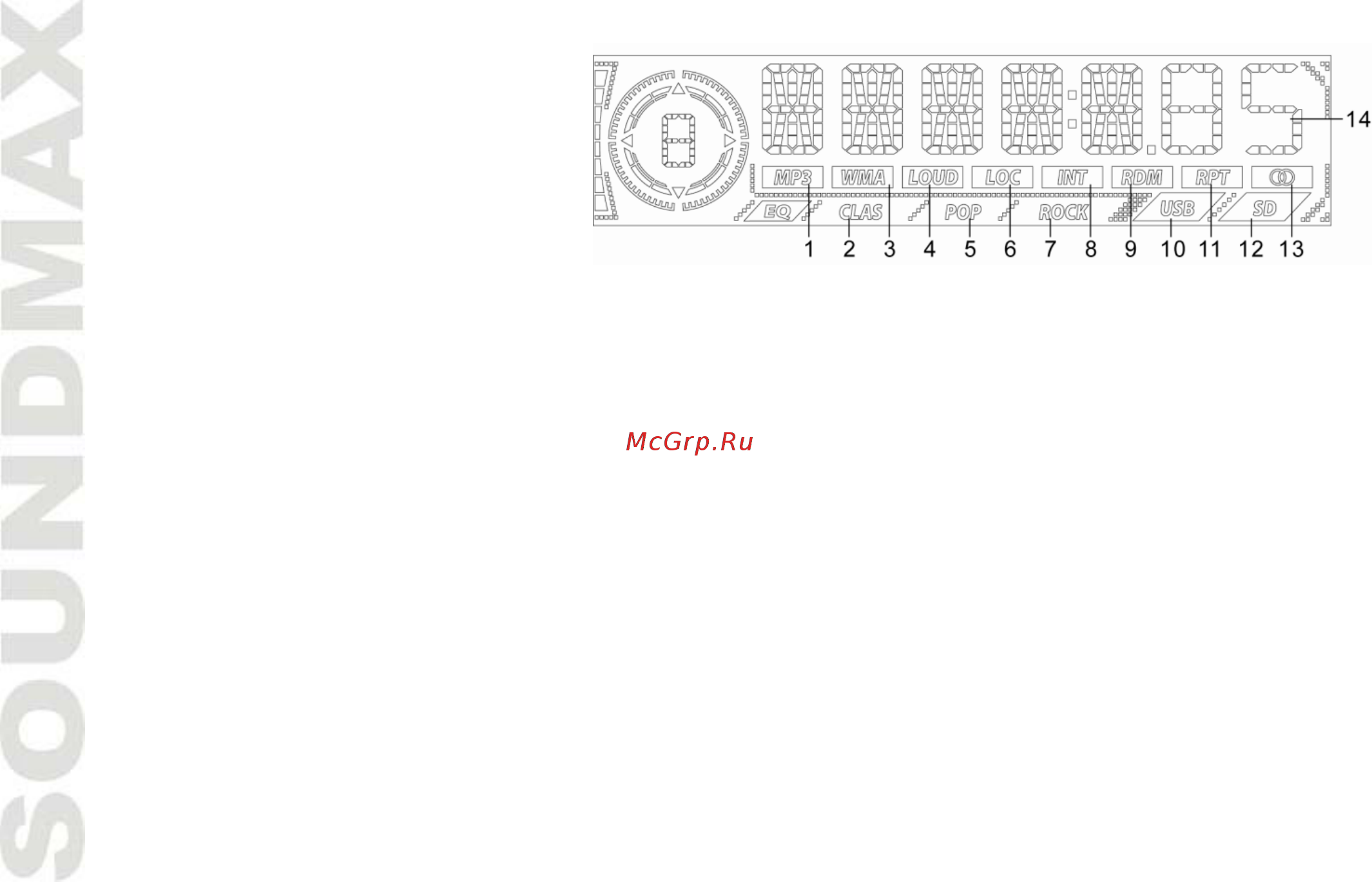

LCD layout

1, 3. Audio format indicators

2. CLASSIC equalizer mode

4. Loudness indicator

5. POP equalizer mode

6. Local station indicator

7. ROCK equalizer mode

8. Intro playback indicator

9. Random playback indicator

10. USB connection indicator

11. Repeat playback indicator

12. SD card indicator

13. Stereo reception indicator

14. Digits display

General operations

Power button

Press MODE/PWR button on the panel to switch the unit on. Press and hold this button to switch the unit off.

Volume control

Rotate VOLUME regulator to adjust volume level.

Audio settings adjustment

Press SELECT button shortly and repeatedly to select an option: BAS (bass) => TRE (treble) => BAL

(balance) => FAD (fader) => LOUD (loudness) => EQ (equalizer) => DX (distance) => STEREO/MONO =>

LOC (local) => VOL (volume). Rotate VOLUME regulator to adjust bass, treble, balance or fader.

Note: When equalizer is on, bass and treble adjustment is not available.

Caution: In each mode, the waiting time is several seconds, and when the waiting time is over, it returns to

the last display mode of radio or playback mode.
