Supermicro X11SSL-F-O [31/123] Removing the passive heatsink

Chapter 2: Installation

Removing the Passive Heatsink

Note: We do not recommend that the CPU or the heatsink be removed. However, if

you do need to remove the heatsink, please follow the instructions below to remove

the heatsink and to prevent damage done to the CPU or other components.

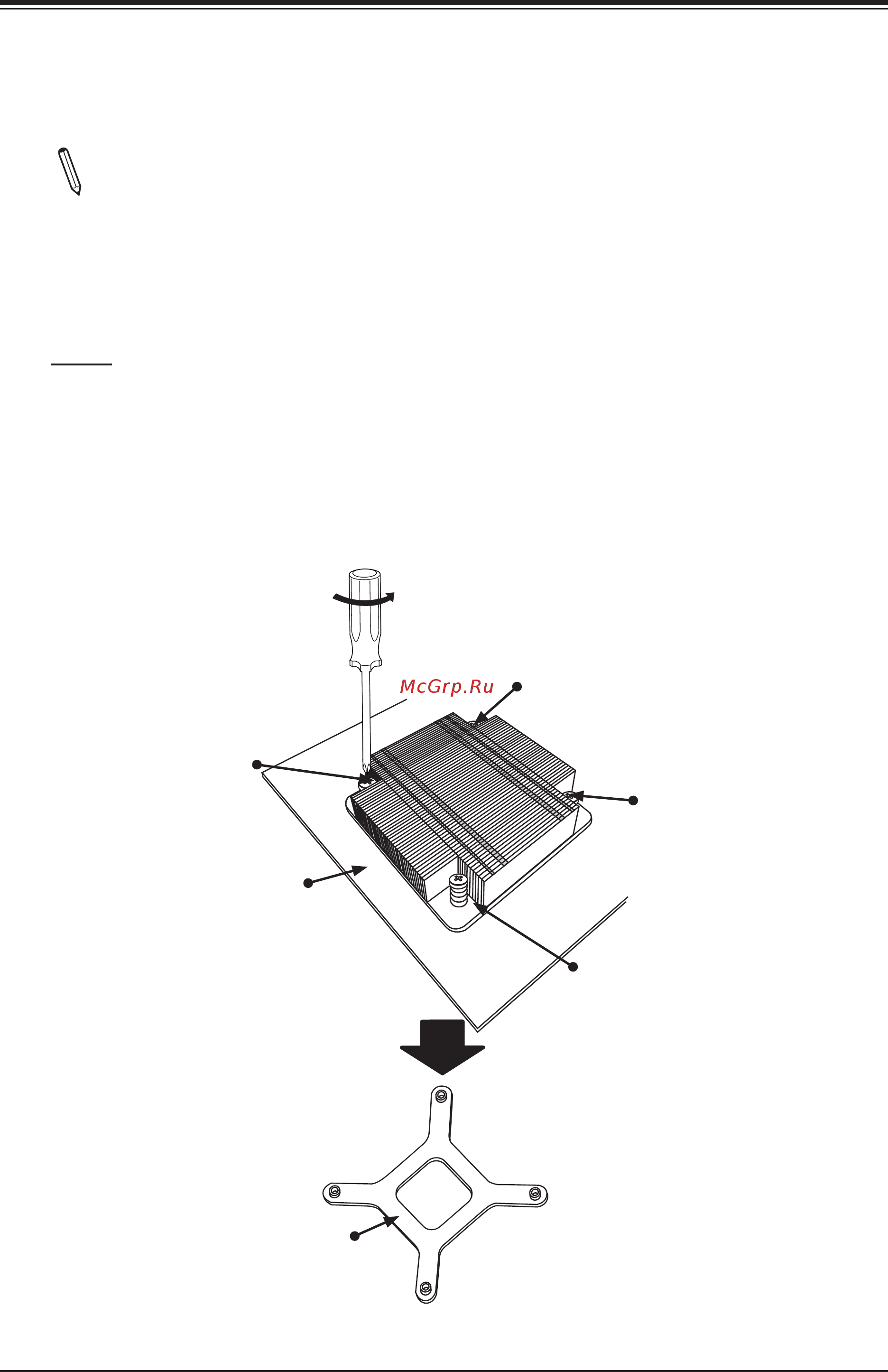

1. Unscrew the heatsink screws from the motherboard in the sequence as shown in the

gure below.

2. Gently wriggle the heatsink to loosen it from the CPU. (Do not use excessive force)

3. Once the CPU heatsink is loosened, remove the CPU heatsink from the CPU.

Loosen screws in sequence as

shown.

Screw#2

Motherboard

Screw#1

Screw#3

Screw#4

Heatsink Bracket
