Connecting your equipment03
28
En
Connecting your TV with no HDMI input

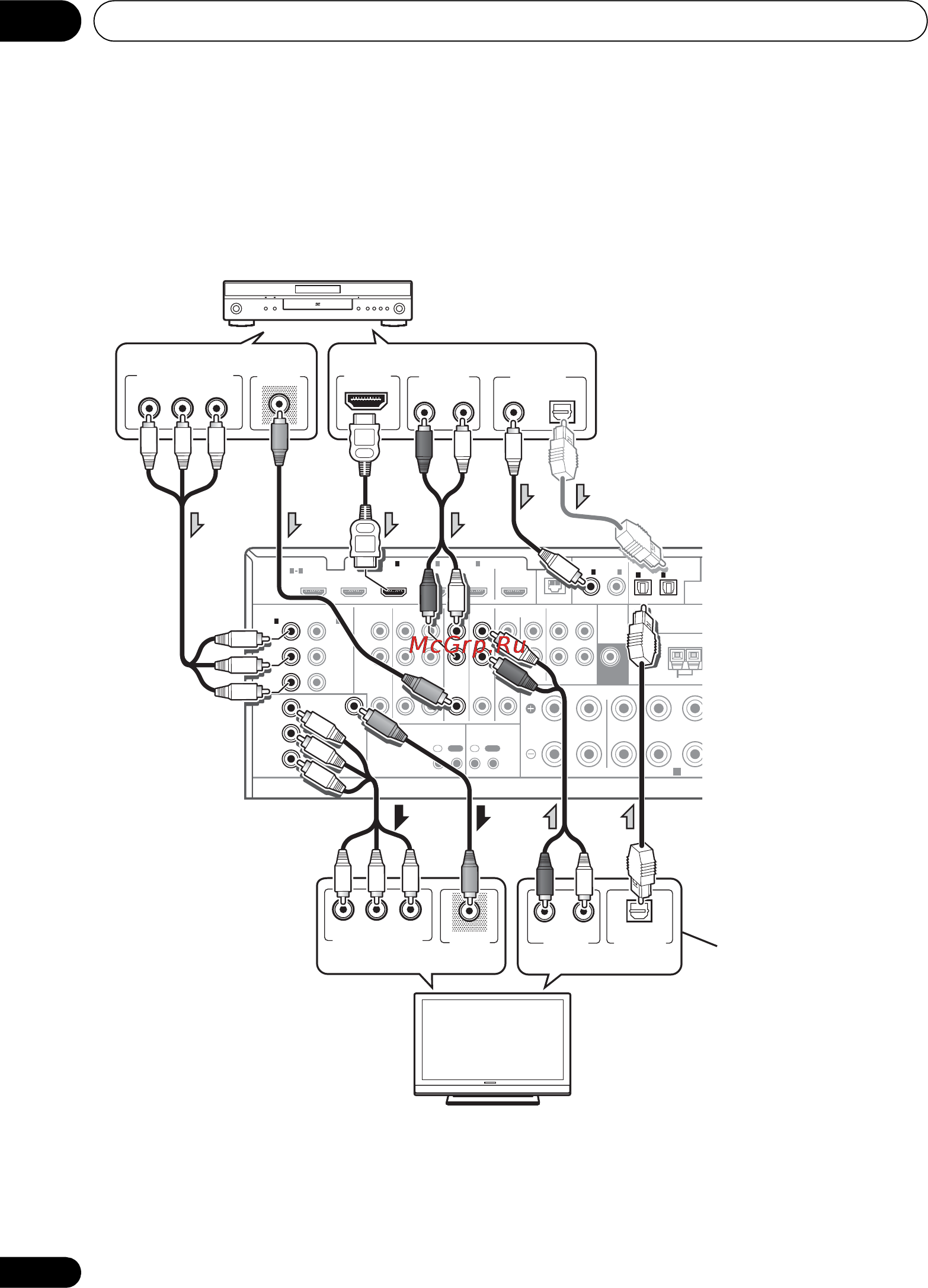

This diagram shows connections of a TV (with no HDMI input) and DVD player (or other playback
component) to the receiver.
• With these connections, the picture is not output to the TV even if the DVD player is connected with
an HDMI cable. Connect the DVD player’s video signals using a composite or component cord.
• Connect using an HDMI cable to listen to HD audio on the receiver. Do not use an HDMI cable
to input video signals.
Depending on the video component, it may not be possible to output signals connected by
HDMI and other methods simultaneously, and it may be necessary to make output settings.
Please refer to the operating instructions supplied with your component for more information.
HDMI
ASSIGNABLE
PB
PR
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
(
DVD
)
(
DVR/BDR
)
(
DVD
)
Y
P
B
PR
Y
P
B
PR
Y
L
R
R
FRONT CENTER SURROUND
LR
ZONE 2
OUT
DVR/BDR
DVD
OUT IN
CD-R/TAPE
OUT ININ
CD
IN
TV/SAT
IN
VIDEO
IN
(
DVR/BDR
)
(
OUTP
U
(
CD
)
SUBWOOFER
(
TV/SAT
)
AM LOOP
COMPONENT VIDEO
AUDIO
PRE OUT
ANTENNA
OPTICAL
VIDEO
IR CONTROL
SPEAKERS
MONITOR
OUT
LAN
COAXIAL
BD IN IN IN IN IN
OUT
(
10/100
)
IN
1
IN
2
1
IN
1
IN
2
1 4
2 3 4
IN
1
A
IN
2
IN
OUT
IN
OUT
VIDEO IN
Y
P
B
PR
COMPONENT VIDEO IN
DIGITAL OUT
COAXIAL OPTICAL
ANALOG
RL
AUDIO OUT
VIDEO OUT
Y
P
B
PR
COMPONENT VIDEO OUT
DIGITAL OUT
OPTICAL
ANALOG
RL
AUDIO OUT
HDMI OUT
DVD player etc.
TV
Select one
Select one
Select one
Select one
This connection is
required in order to
listen to the sound of
the TV over the receiver.
VSX-1020/
VSX-1025
• If the connection was made
using an optical cable, you’ll
need to tell the receiver which
digital input you connected
the DVD player to (see The
Input Setup menu on page 42).
VSX-1020_SYXCN.book 28 ページ ２０１０年３月１２日 金曜日 午前９時１０分
