Connecting your equipment03
22
En
Connecting other audio
components
The number and kind of connections depends
on the kind of component you’re connecting.
Follow the steps below to connect a CD-R, MD,
DAT, tape recorder or other audio component.
Important
• If the connection was made using an
optical or a coaxial cable, you’ll need to
press SIGNAL SEL button to select the
input signal corresponding to the audio
components (see Choosing the input signal
on page 26).
Note
• Note that you must connect digital
components to analog audio jacks if you
want to record to/from digital components
(like an MD) to/from analog components.

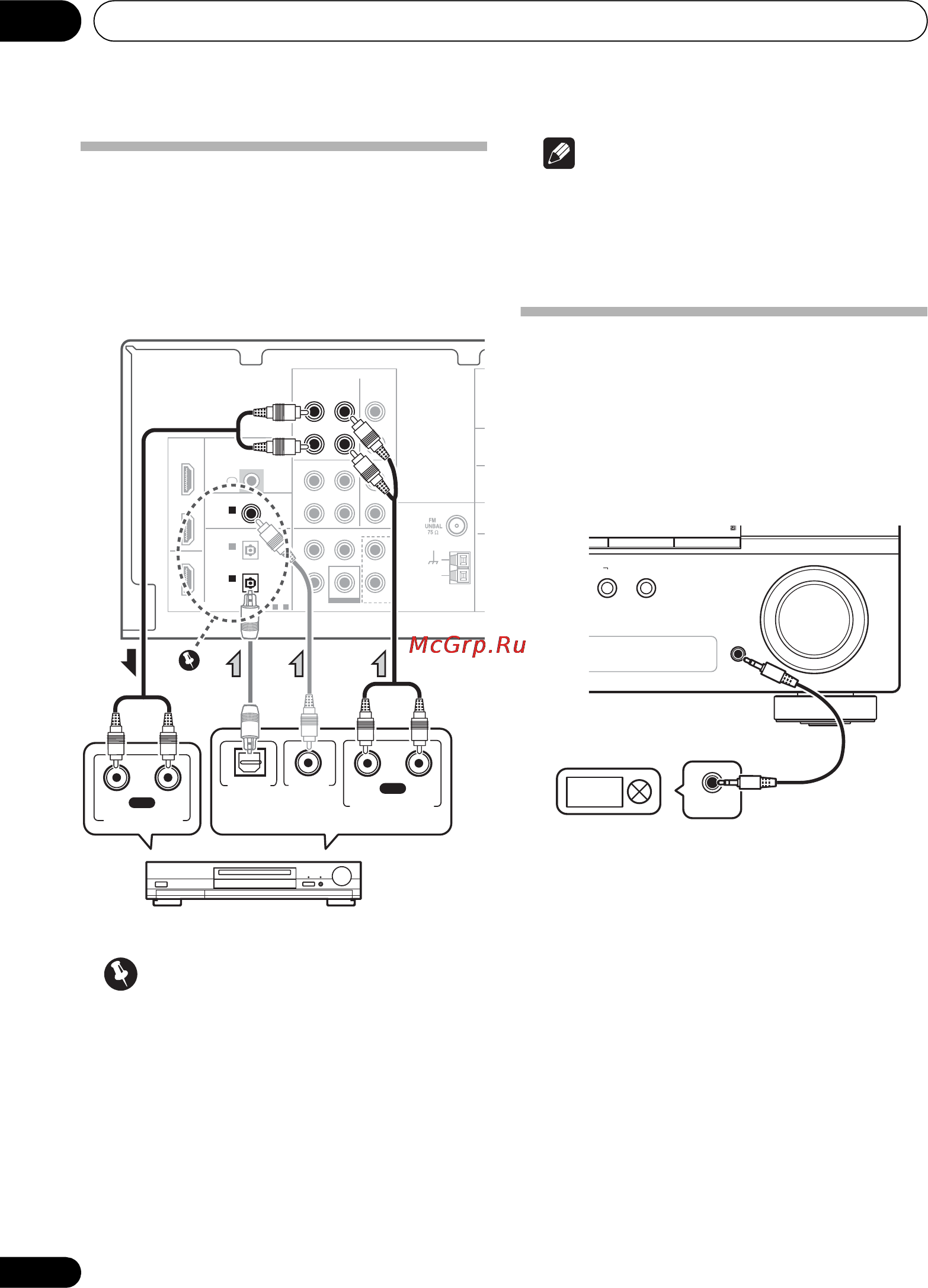

Connecting to the front panel
audio mini jack
Front audio connections are accessed via the
front panel using the INPUT SELECTOR or
PORTABLE button on the remote control. Use
a stereo mini-jack cable to connect a digital
audio player, etc.
AUDIO
DIGITAL
C
BD/TV MULTI CH IN
BD/TV IN
HDMI
ANTENNA
AM
LOOP
FRONT
L
R
L
R
CENTERSURROUND
COAXIAL
(CD)
IN 1
1
-
2
OPTICAL
ASSIGNABLE
IR
ASSIGNABLE
OUT
IN
MO
DVR/VCR
DVD/SAT
L
R
OUT
DVD/SAT
IN
BD/TV
IN
OUT
IN IN
IN
CD-R/TAPE CD
SUBWOOFER
IN
IN 1
(DVD/SAT)
IN 2
COAXIAL
(CD)
IN 1
DIGITAL
OPTICAL
L
R
AUDIO
OUT
IN
CD-R/TAPE
(BD/TV)
IN 1
PLAY
RL
DIGITAL AUDIO OUT
ANALOG AUDIO OUT
COAXIAL
REC
RL
ANALOG AUDIO IN
OPTICAL
CD-R, MD, DAT, Tape recorder, etc.
Select one
MASTER
VOLUME
SPEAKERS
ZONE
ON/OFF
PORTABLE
ENTER
PRESET
+
AUDIO OUT
Digital audio player, etc.
