Connecting your equipment 03
23
En
English
Français
Italiano
Español
Nederlands
Deutsch

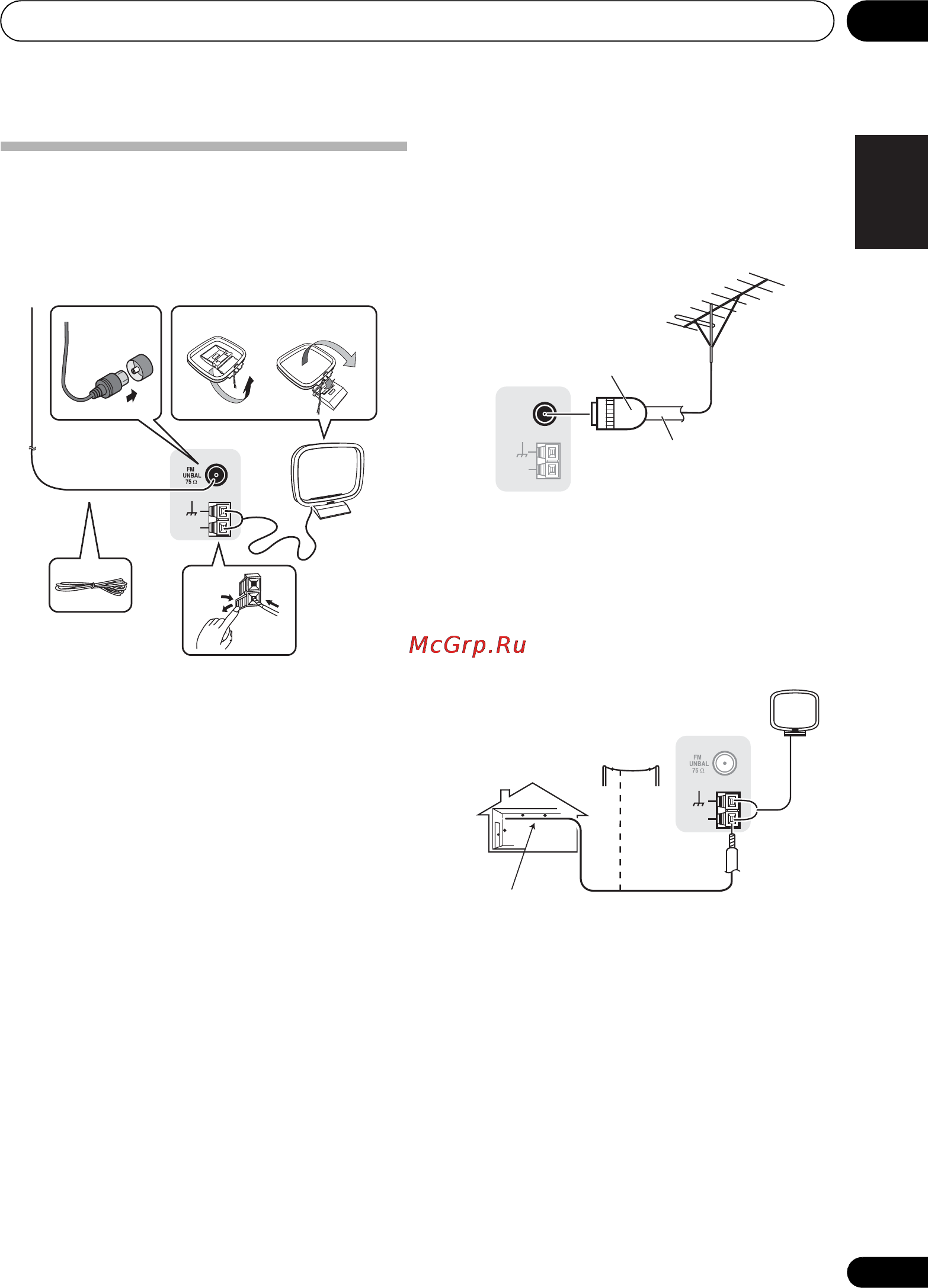

Connecting antennas
Connect the AM loop antenna and the FM wire
antenna as shown below. To improve reception
and sound quality, connect external antennas
(see Using external antennas below).
1 Push open the tabs, then insert one wire
fully into each terminal, then release the tabs
to secure the AM antenna wires.
2 Fix the AM loop antenna to the attached
stand.
To fix the stand to the antenna, bend in the
direction indicated by the arrow (fig. a) then
clip the loop onto the stand (fig. b).
3 Place the AM antenna on a flat surface
and in a direction giving the best reception.
4 Connect the FM wire antenna into the FM
antenna socket.
For best results, extend the FM antenna fully
and fix to a wall or door frame. Don’t drape
loosely or leave coiled up.
Using external antennas
To improve FM reception
Use a PAL connector (not supplied) to
connect an external FM antenna.
To improve AM reception
Connect a 5 m to 6 m length of vinyl-coated
wire to the AM antenna terminal without
disconnecting the supplied AM loop antenna.
For the best possible reception, suspend
horizontally outdoors.
ANTENNA
AM
LOOP
2
1
3
4
fig. a fig. b
ANTENNA
FM
UNBAL
75
Ω
AM
LOOP
75 Ω coaxial cable
One-touch
PAL connector
ANTENNA
AM
LOOP
Outdoor
antenna
5 m to 6 m
Indoor antenna
(vinyl-coated wire)
