Other settings

Testing SD card performance

109

H5 Handy Recorder

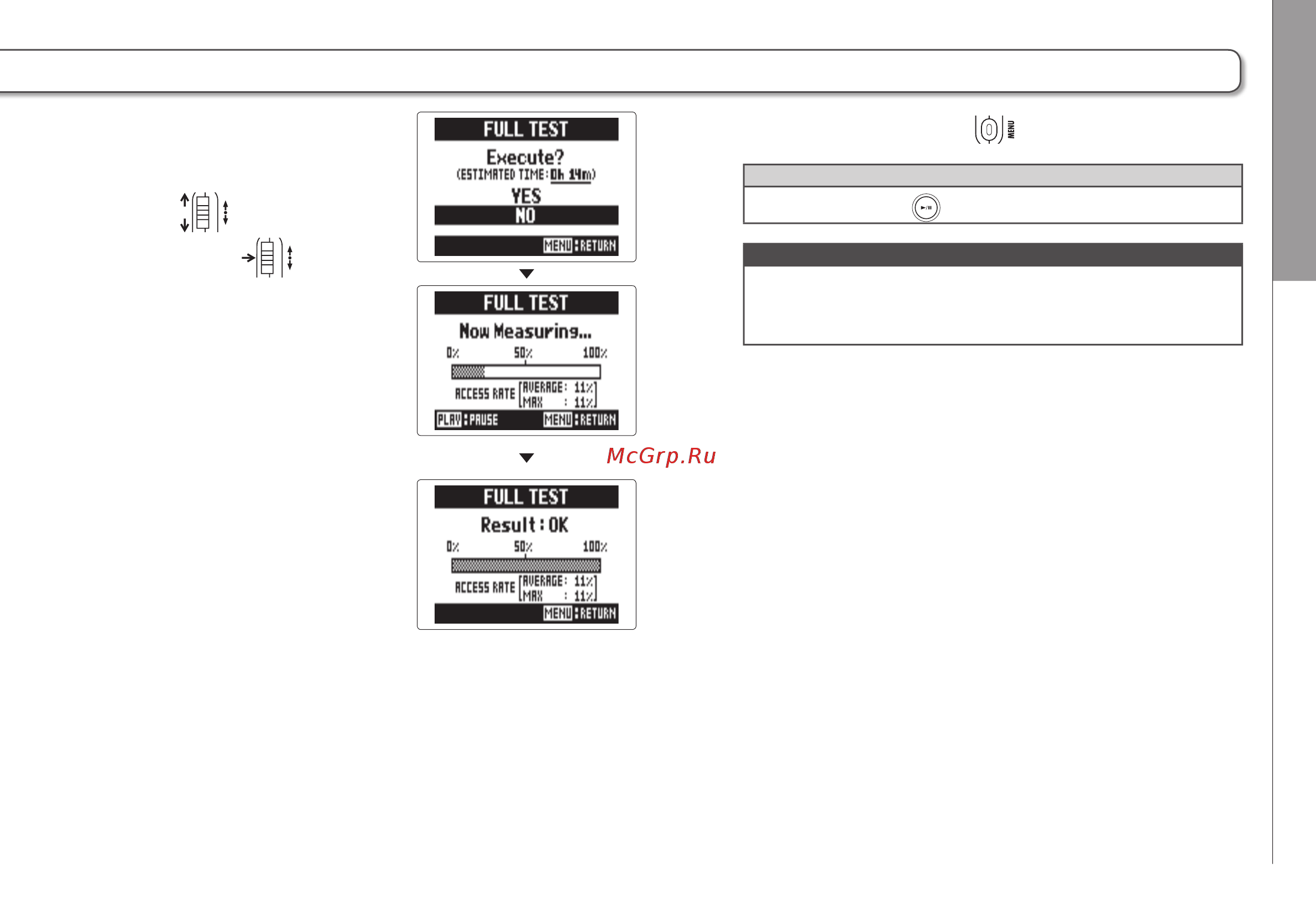

5. When the amount of

time required is shown,

use

to select “YES",

and press .

When the test completes,

if the MAX access rate is

100%, the card has failed

the test (NG).

6. To cancel testing, press .

HINT

You can also press

to pause and resume testing.

NOTE

Even if an SD card is evaluated as “OK” by the perfor-

mance test, this does not guarantee that write errors will

never occur. Please use this test just as a guide.
