32 sounds with 24 polyphonic.

LED indicator in the Transmitter and the Receiver.

8 volume settings of Speaker in the Receiver.

Transmission frequency is 433.92 MHz.

Wireless battery operated chime (3 x AA size 1.5 V DC batteries, not included).

Wireless battery operated Transmitter (1 x A23 size 12 V DC battery, included).

Water proof Transmitter (IP44).

100 m operating radius in the open air.

p. 1

WIRELESS BATTERY OPERATED DOOR CHIME

USER MANUAL

p. 2

USER MANUAL

WIRELESS BATTERY OPERATED DOOR CHIME

RECEIVER UNIT

INSTALLATION AND ACTIVATION OF THE CHIME

1. Insert the 3 x AA size 1.5 V DC batteries into the chime (Fig. 5) respecting the polarity specified inside the housing.

2. Fix the screws at the desired place and hang the chime at a reasonable height using the keyhole (Fig. 5).

For mobility purposes, you can remove the chime from its place at any time.

(Caution, sometimes it is necessary to move the chime for improved reception).

Do not fix this Receiver on metal surface, because it will affect its performance.

3. The chime has 32 different ring tones. Select the melody and desired volume level by the buttons on the face of

Receiver (Fig. 4).

4. When the melody rings, an LED illuminates on the front of the chime around the Stop/Play button (Fig. 4).

INSTALLATION AND ACTIVATION OF THE TRANSMITTER

The Transmitter can be used in a fixed or mobile way.

1. To open the Transmitter, slide a screwdriver in the top slot, apply a slight pressure and take off the base of the

button (Fig. 1). Insert the one А23 12 V battery respecting the polarity specified inside the housing (Fig. 2).

Important: do not lose or stretch the sealing ring.

2. Choose the appropriate place to fix your Transmitter, a place protected from rain is advisable, check the chime is

working properly before fixing it.

Do not fix this Transmitter on metal surface, because it will affect its performance. The range of your Transmitter de-

pends on the configuration of the installation, in open space it can reach 100 metres.

3. Then screw the wall bracket in your chosen location (Fig. 3). In case of “vertical” installation. Check the sealing

ring is correctly located and locate the button on its wall bracket.

FEATURES

TECHNICAL INFORMATION

TRANSMITTER UNIT

IMPORTANT

Use alkaline batteries, they have a higher life time and do not leak easily.

Do not use different types of batteries or new and worn batteries together.

Never use rechargeable “batteries”.

Remove the batteries if you do not use the kit during a long time.

Protect your device from rain or humidity.

Do not fix anything on metal surface.

Respect the environment, dispose of batteries in accordance with local requirements.

B801, B802 B801, B802

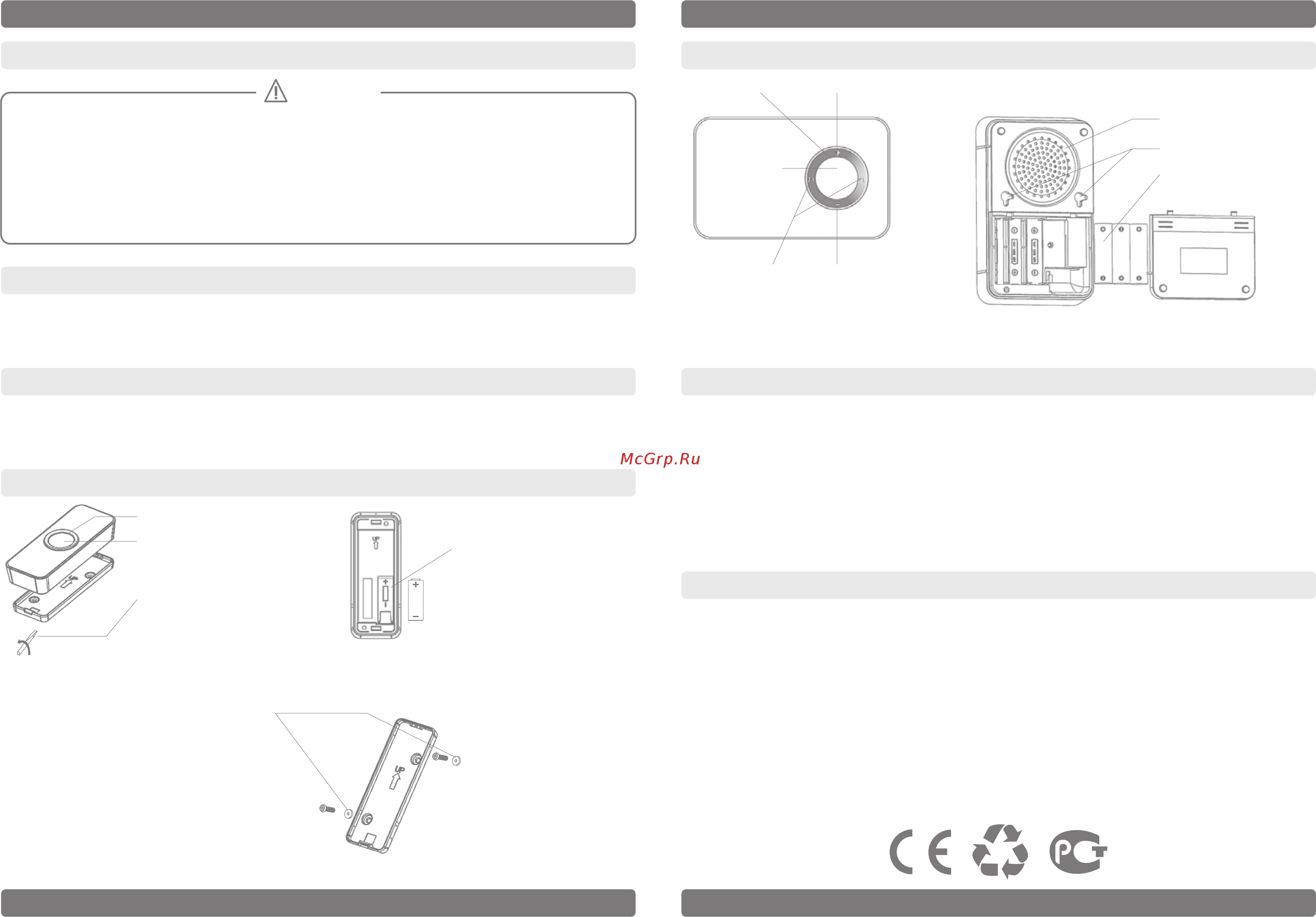

Fig. 4 Fig. 5

Speaker

Fixing points

Volume control (+)

Volume control (–)

LED indicator

Chime selection

button

Requires 3 x AA 1.5 V batteries

Stop/Play

button

LED indicator

Fig. 1

Fig. 2

Fig. 3

Push button

Use small flat at bladed screw driver

to remove the transmitter cover

Use two screws with two

water proof washer for fixing

Before replacing the

Transmitter cover, insert the

A23 12V battery

А23 12 V
