Instructions for the user
44

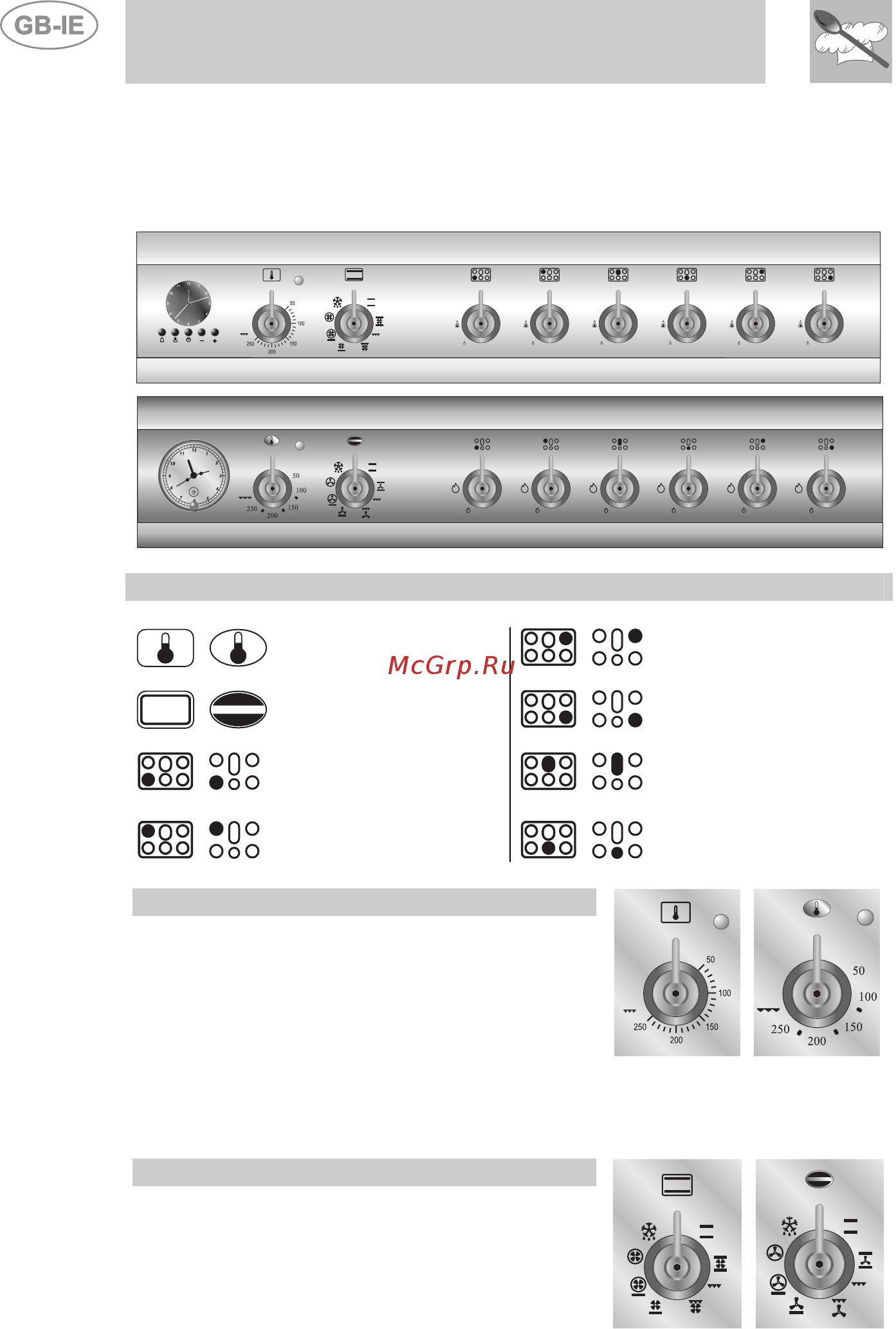

5. DESCRIPTION OF CONTROLS
5.1 Front control panel
All the cooker controls and commands are grouped on the front panel.
DESCRIPTION OF SYMBOLS
OVEN THERMOSTAT
REAR RIGHT-HAND
COOKING ZONE
OVEN FUNCTIONS
FRONT RIGHT-HAND
COOKING ZONE
FRONT LEFT-HAND
COOKING ZONE
FISH COOKING ZONE
REAR LEFT-HAND
COOKING ZONE
FRONT CENTRAL
COOKING ZONE
THERMOSTAT KNOB
Selection of cooking temperature is carried
out by turning the knob clockwise to the
required temperature, between 50° and
250°C.
The indicator light comes on to indicate that
the oven is warming up.
When it goes out it means that the required temperature has been
reached. Regular flashing means that oven temperature is being
constantly maintained at the programmed level.
FUNCTION SWITCH KNOB
Turn the knob to select from the following
functions:
