17
GB

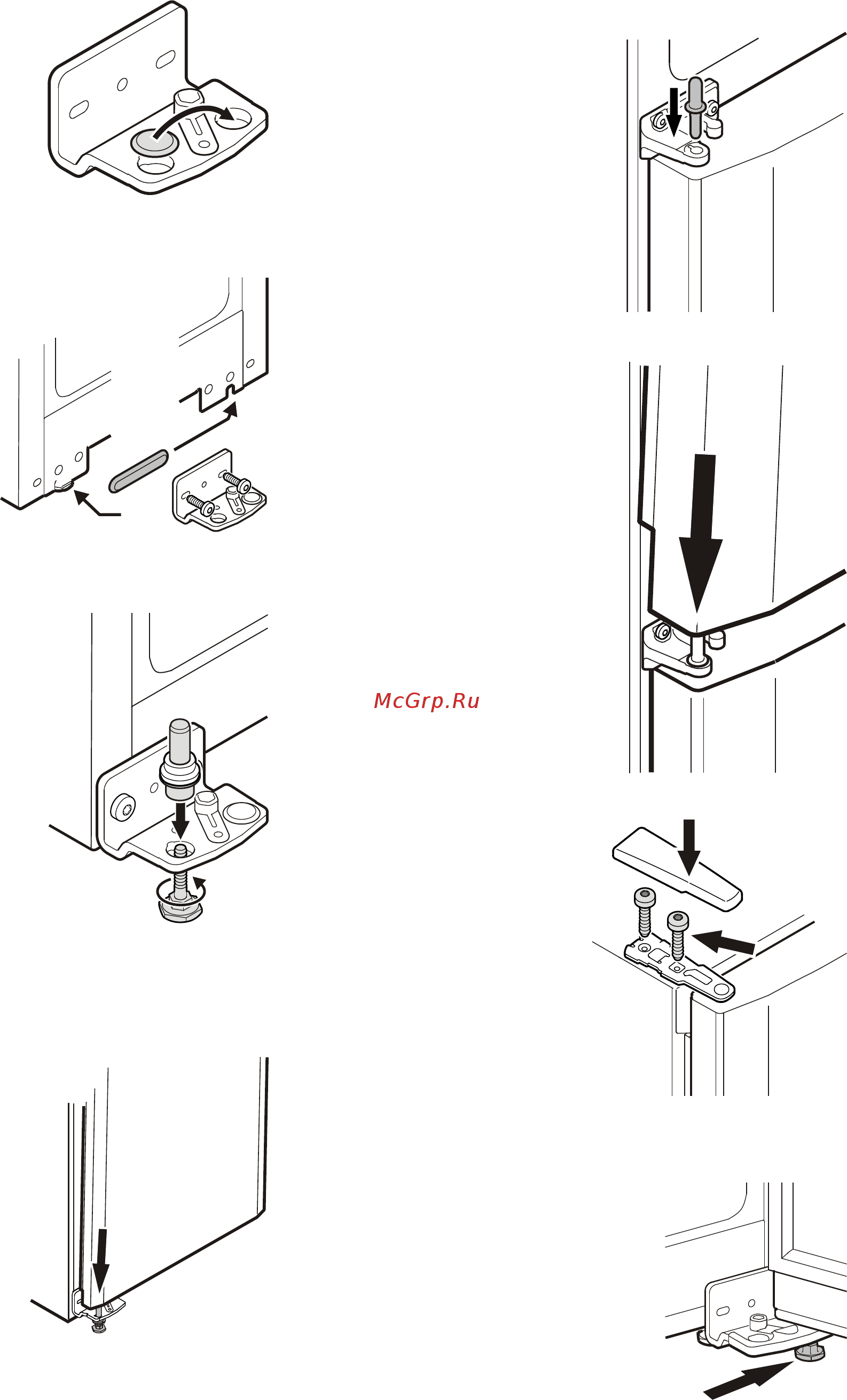

25. Suspend top door on the middle
hinge pin and close.
23. Suspend bottom door on the
bottom hinge pin and close.
20. Transfer cover plate to the op-
posite side.
21. Screw hinge bracket into place.
22. Tilt appliance slightly backwards,
insert pin and attach using the
adjustable foot.
24. Insert middle hinge pin.
26. Insert hinge bracket and screw into
place.
27. Click cover into place.
19. Transfer cover to the opposite side.
19
20
21
23
22
24
25
26
27
28. Place the appliance in its final position
at the place of installation.
Extend the adjustable foot at the bottom
hinge bracket until it rests on the floor
and then make a further 90° turn.
