WKTn / WKT-Dn

Rev. 4.0 01/2008

3.3 Connection to the electricity supply system

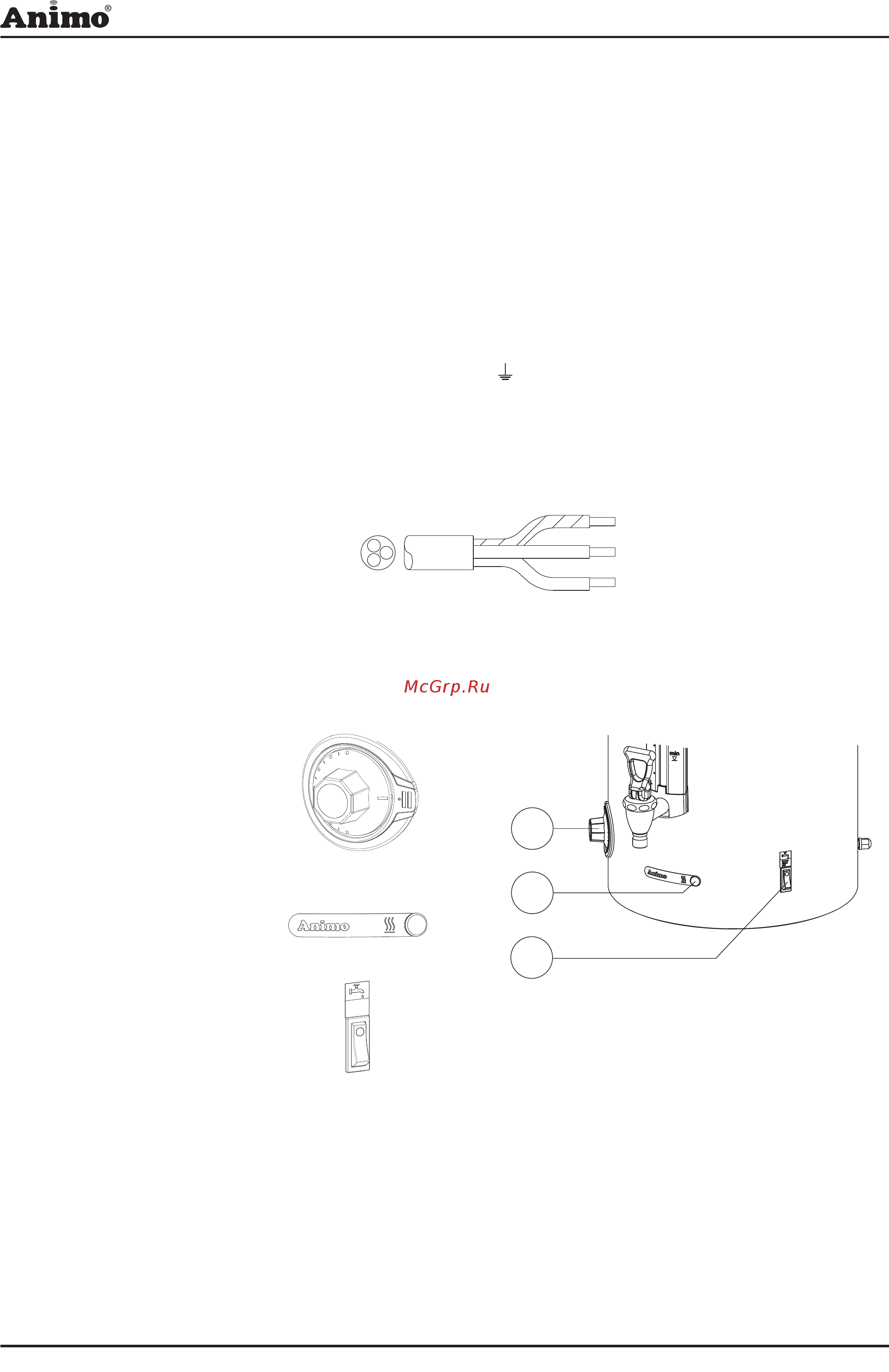

Depending on the model, the appliance should be connected according to the instructions in (fig. 3).

 For 240V 1 phase with plug socket.

 For 240V 1 phase (3-core cable).

The following remarks apply to fig. 3:

 If the plug fitted on the electric cable does not fit in your socket, you have to replace it

with a suitable one.

 The replaced plug should be thrown away as it can be dangerous if plugged in a socket.

The following points should be observed when wiring a new plug:

1. The green/yellow-coloured wire (“EARTH”) should be connected to the terminal which is

either marked with the letter “E”, the “earth” symbol (

), coloured green or green/yellow.

2. The blue-coloured wire (“NEUTRAL”) should be connected to the terminal which is either

marked with the letter “N” or coloured black.

3. The brown-coloured wire (“PHASE”) should be connected to the terminal which is either

marked with the letter “L” or coloured red.

IMPORTANT!

The 3 core main cable (fig. 3) has the

following wiring code:

4. CONTROLS

A. Adjustable thermostat /

ON/OFF

B. Heating indicator light

C. On/Off switch filling system

(model VA)

Green/yellow - Earth (E)

Blue - Neutral (N)

Brown - Phase (L)

fig. 3

fig. 4
