Recirculation mode:
Leave the motor intake free. Install the active carbon
filters as shown in page 7.
Warning: if the hood is not supplied with an active
carbon filter, it is necessary to buy it separately and
assemble it before using the hood.

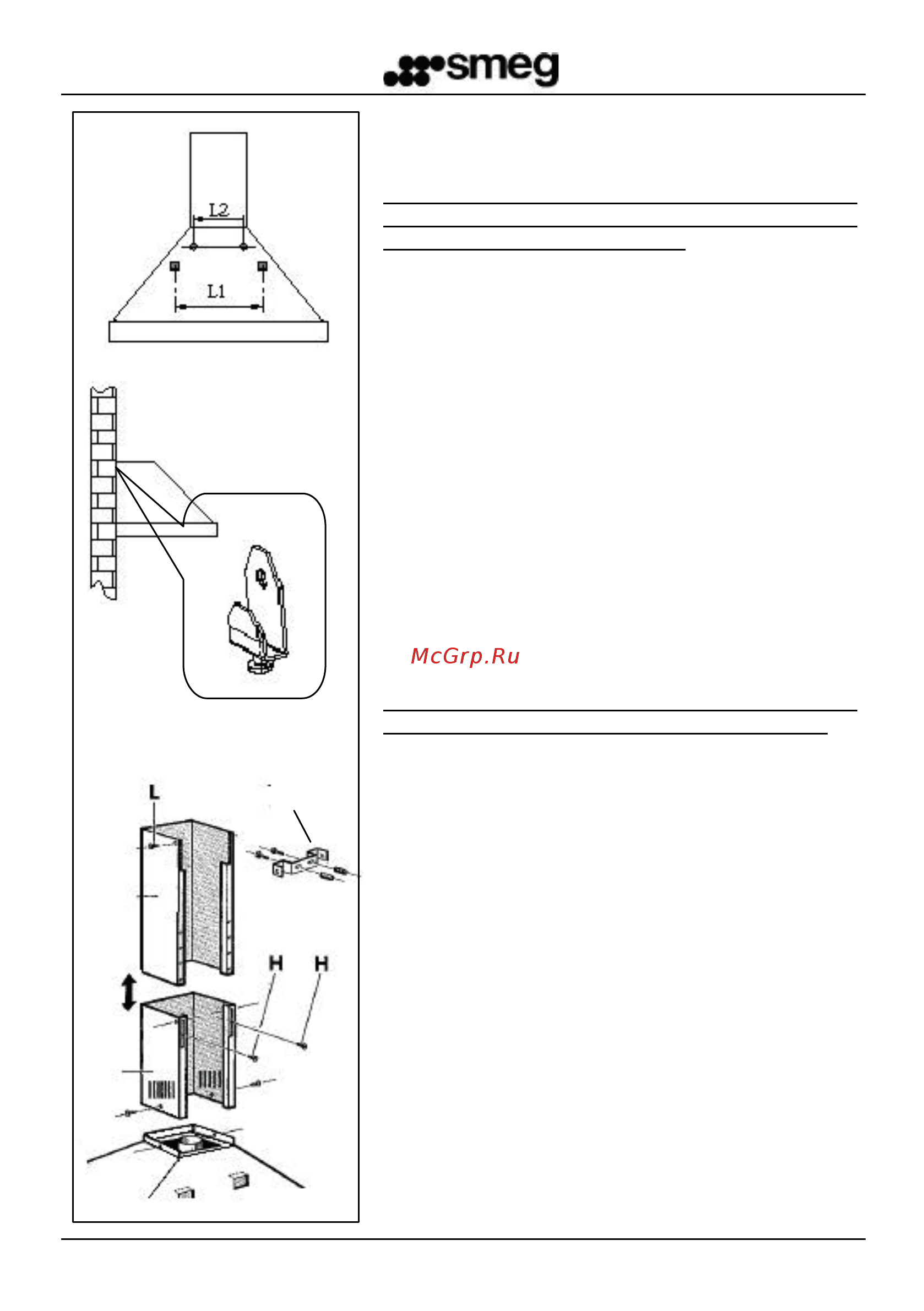

m) Chimneyassembly:
Adjust the two telescopic chimneys to the required
length (fig. 6).
Block the chimneys by tightening the two H screws .
Place the chimneys group on the top side of the hood
carefully. Put the chimney bracket K on the
B
chimney (fig. 6). Mark the holes on the wall for fixing
the chimney bracket to the wall.
Remove the chimney set, drill and fix the support
racket to the wall by means of wall anchors. . Put the
chimney group back in place and fix it to the hood with
the Z screws and to the chimney bracket with the L
screws as shown in figure 6.
ELECTRICAL CONNECTION
It is recommended that all electrical connection
operations are performed by a qualified technician.
The appliance is supplied WITHOUT A PLUG. It is
therefore necessary to fix a plug to the wire. The plug
and fuse must be in accordance with the rating plate
inside the hood. Then connect it to a nearby, easily
reachable socket in accordance with the rules in
force.
In the case of a direct connection to the mains supply,
it is necessary to put a switched spur between the
appliance and the mains supply. The switch must be
suitable for the load, compliant with the rules in force
and must have a minimum contact opening of not less
than 3mm.
EN 03
OPERATING INSTRUCTIONS:
CONTROL PANEL:
In order to achieve the best performance, it is recommended to start the hood a few
minutes before starting cooking and keep it on for at least 15 minutes after finishing
cooking or after all fumes and odours have disappeared.
To start the hood, identify your type of control panel and follow the instructions:
SLIDER:
- Key (A) to turn on/off the hood’s light.
- Four-position Cursor (B):
0: Off
1/2/3: On/Speed adjustment
ELECTROMECHANICAL PUSHBUTTONS:
Light ON/OFF Button

 Motor OFF button
On/speed adjustment button
WITH KNOBS
:
- Two-position Knob
(A) to turn on/off
the light (0-1)
- Four-position Knob
(B):
0 Motor OFF
1-2-3 Speed adjustment
IT 04
A
B
(A) (B)
(A) (B)
Fig.4
Fig.5
Fig.6
K
B
Z
Z
