25
GB

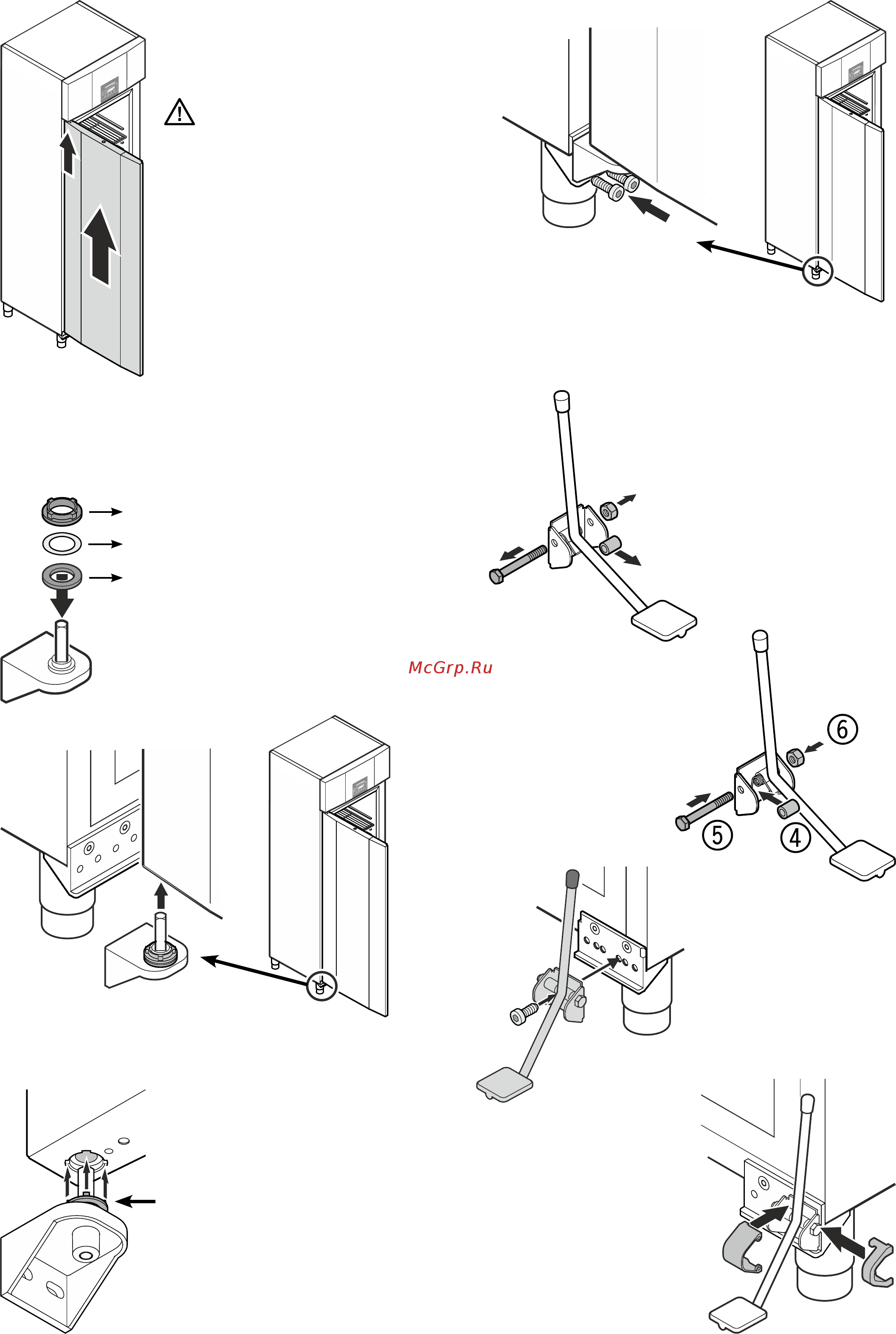

8. Keeping door open at 90°, suspend
in top square pin.
WARNING!
It is essential that the door is
open at an angle of 90° during
installation.
If the door is installed in the
closed position, this will lead to
destruction of the self-closing
mechanism on the rst opening
and closing of the door.
Important
As a result of its heavy weight, the door
must be held secure by one person.
10. Install the hinge bracket with the fitted
hinge components in the lower door
mounting.
Bearing ring
Brass washer
Plastic washer
9. Fit the hinge components on the hinge bracket.
Note on point 10
The tabs on the bearing ring must t into
the recesses of the door mounting during
installation.
I f n e c e s s a r y, g e n t l y r ot a t e t h e u p p e r r i n g .
11. Screw hinge bracket into place.
Installation of the foot pedal opener for the left-
hand hinged door
1
2
3
1 Unscrew the nut.
2 Remove the screw.
3 Remove the spacer sleeve.
4 Position the foot pedal with the spring
to the right. Insert the spacer sleeve.
5 Insert the screw.
6 Screw on the nut and slightly tighten.
7
8
7Screw on the foot pedal (third
hole from the right).
8Fit the covers.
