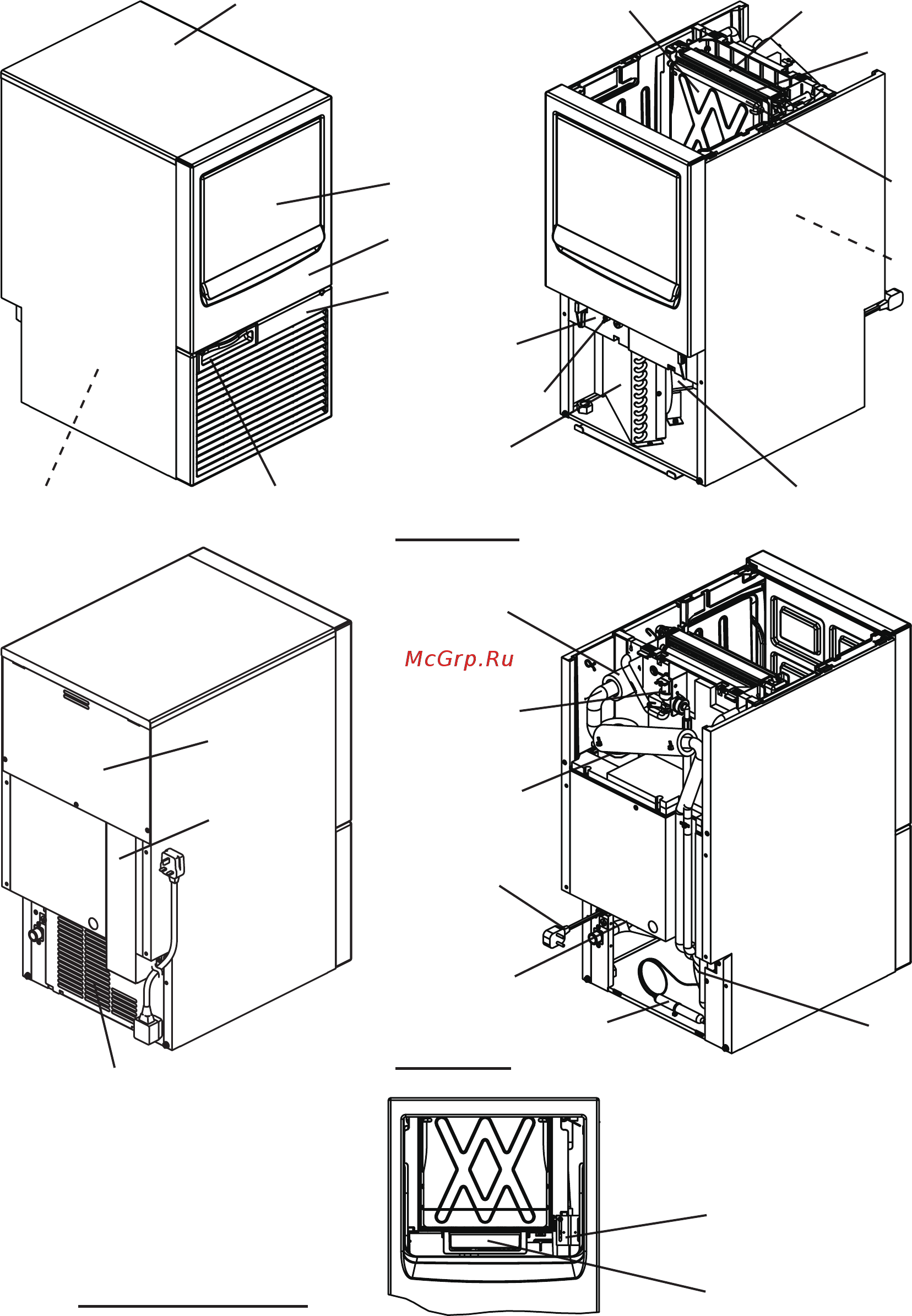

Hoshizaki KM-35A [10/65] Construction

   TopPanel   Separator  SprayTube

           Evaporator

     Door      WaterSupply

           Tube

     FrontPanel      

           Tank

     Louver

     ControlBox

     ControlSwitch

     Condenser

HotGasValve  AirFilter      FanMotor 

    

Front View

     Thermistor

    

     WaterValve

  RearPanel

     PumpMotor

  PipeCover

     PowerSupply

     Cord

     DrainValve

       Drier    Compressor

    

Rear View

 RearCover

         FloatSwitch



With Tank Removed

     BinControlSwitch

II. GENERAL INFORMATION

1. CONSTRUCTION

[a] KM-30A, KM-35A, KM-50A
