GE Monogram ZISP 480 DX SS [11/32] Ice storage bin
![GE Monogram ZISP 480 DX SS [11/32] Ice storage bin](/views2/1324291/page11/bgb.png)
11

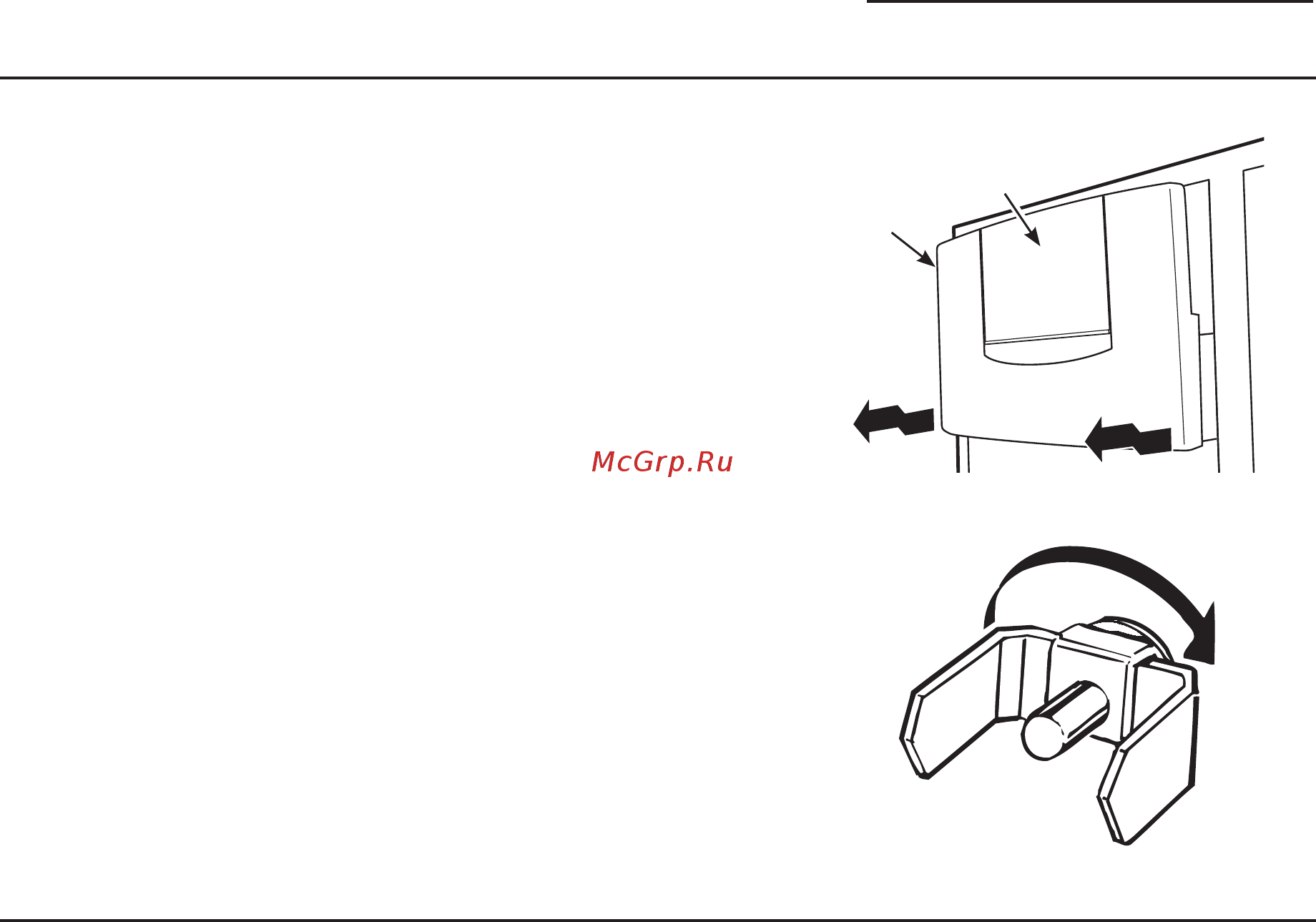

Ice storage
bin
To remove:
Lift up the access door to reach the icemaker.
Set the icemaker power switch to the OFF
position. With the access door closed, support
the storage bin at the bottom while slightly
lifting. Pull bin straight out.
To replace:
Slide the bin back until the tab on the bin locks
into the slot on the shelf. If the bin does not go
all the way back, remove it and rotate the drive
mechanism 1/4 turn. Then push the bin back
again.
Important
facts about
your ice
& water
dispenser
• Do not add ice from trays or bags to
the storage bin. It may not crush or
dispense well.
• Avoid overfilling glass with ice and use
of narrow or extra-tall glasses. Backed-up
ice can jam the chute or cause the door in
the chute to freeze shut. If ice is blocking
the chute, poke it through with a wooden
spoon.
• Beverages and foods should not be
quick-chilled in the ice storage bin. Cans,
bottles or food packages in the storage bin
may cause the icemaker or auger to jam.
• To keep dispensed ice from missing
the glass, put the glass close to, but not
touching, the dispenser opening.
• Some crushed ice may be dispensed even
though you selected CUBES. This happens
occasionally when a few cubes accidentally
get directed to the crusher.
• After crushed ice is dispensed, some water
may drip from the chute.
• Sometimes a mound of ice chips will form
on the door in the ice chute. This condition
is normal and usually occurs when you have
dispensed crushed ice repeatedly. The ice
chips will eventually evaporate.
• Dispensed water is not ice cold. For colder
water, simply add crushed ice or cubes before
dispensing water.
• The first glass of water dispensed may
be warmer than the following ones.
This is normal.
• To eliminate drips on the spill shelf, tilt
the glass in slightly when dispensing water.
Rotate
Drive
Mechanism
Ice Storage Bin
Access Door
Ice & Water Dispenser (on some models)
