Hiton T-70 Инструкция по эксплуатации онлайн [4/13] 275373
![Hiton T-70 Инструкция по эксплуатации онлайн [4/13] 275373](/views2/1325058/page4/bg4.png)
Содержание

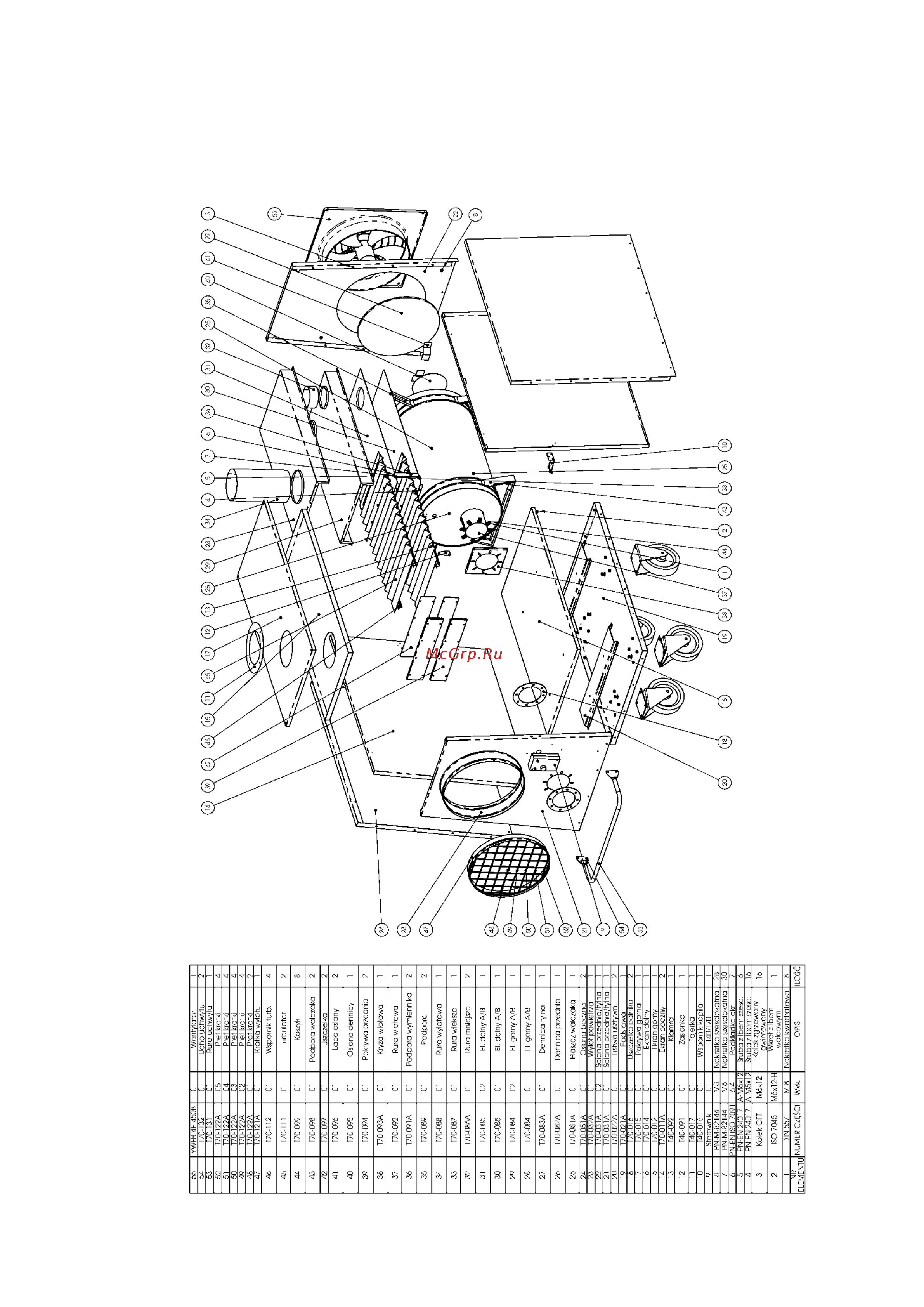

- Fig t40 construction 2
- Round washer 3
- Description 5
- Part no 5
- Round washer 5
- C basic component parts of the heater include cylindrical combustion chamber made of acid proof sheet and heat exchanger fitted with turbulators heat of burned oil is absorbed by air which is ventilated by fan and passes through heat exchanger and combustion chamber some of the heat is transported outside through the flue in form of combustion fumes excellent capacity of the heaters compensates for the heat losses and minimizes them maximum air temperature at the outlet is 8 7
- C both inlet and outlet points are secured with protective screens outlet and inlet points should never be obstructed t range heaters require disposal of combustion fumes flue connection should be made of insulated tin pipes and the flue should be in vertical position 1m above the rooftop of the heated building chimney flue diameter cannot be inferior to the diameter of the heaters flue horizontal connection between the heater and flue should be slightly inclined and not longer than 2 meters flue can be fitted by means of elastic spiro pipes provided that the above requirements are met t range heaters are powered by voltage rating 220 v in case of heaters 7
- C the device is additionally equipped with safety thermostat set at 11 7
- C the temperature is controlled by means of a thermostat with the range of 6 7
- T range heaters are portable devices each t 40 is equipped with a fuel tank external tanks of any capacity may be used t 70 heaters are not equipped with fuel tanks and can be fuelled from any plastic or metal tank meeting technical requirements blower heater is used for producing air heated up to max temperature of 8 7
