6
Setting up
• Avoid positioning the appliance in direct sunlight or near
cookers,radiators and similar sources of heat.
• The oor on which the appliance stands should be horizontal
and level.Compensate for uneven oors with the adjustable
feet.
• There must be a gap of at least 20 cm between the upper
edge of the appliance and the ceiling. Always ensure that there
is good ventilation and that the outward owing air is able to
escape.
• Standard EN 378 species that the room in which you install
your appliance must have a volume of 1 m
3
per 8 g of R 600a
refrigerant used in the appliance, so as to avoid the formation
of inammable gas/air mixtures in the room where the appli-
ance is located in the event of a leak in the refrigerant circuit.
The quantity of refrigerant used in your appliance is indicated
on the type plate on the inside of the appliance.
Connecting to the mains
Power supply (a.c.) and voltage at the operating point must
comply with the details on the type plate, which is located in the
refrigerator compartment on the left-hand side. The socket must
be fused with a 10 A fuse or higher, it must be away from the rear
of the appliance and must be easily accessible.
Connect the appliance with a properly earthed fused plug
and socket only.

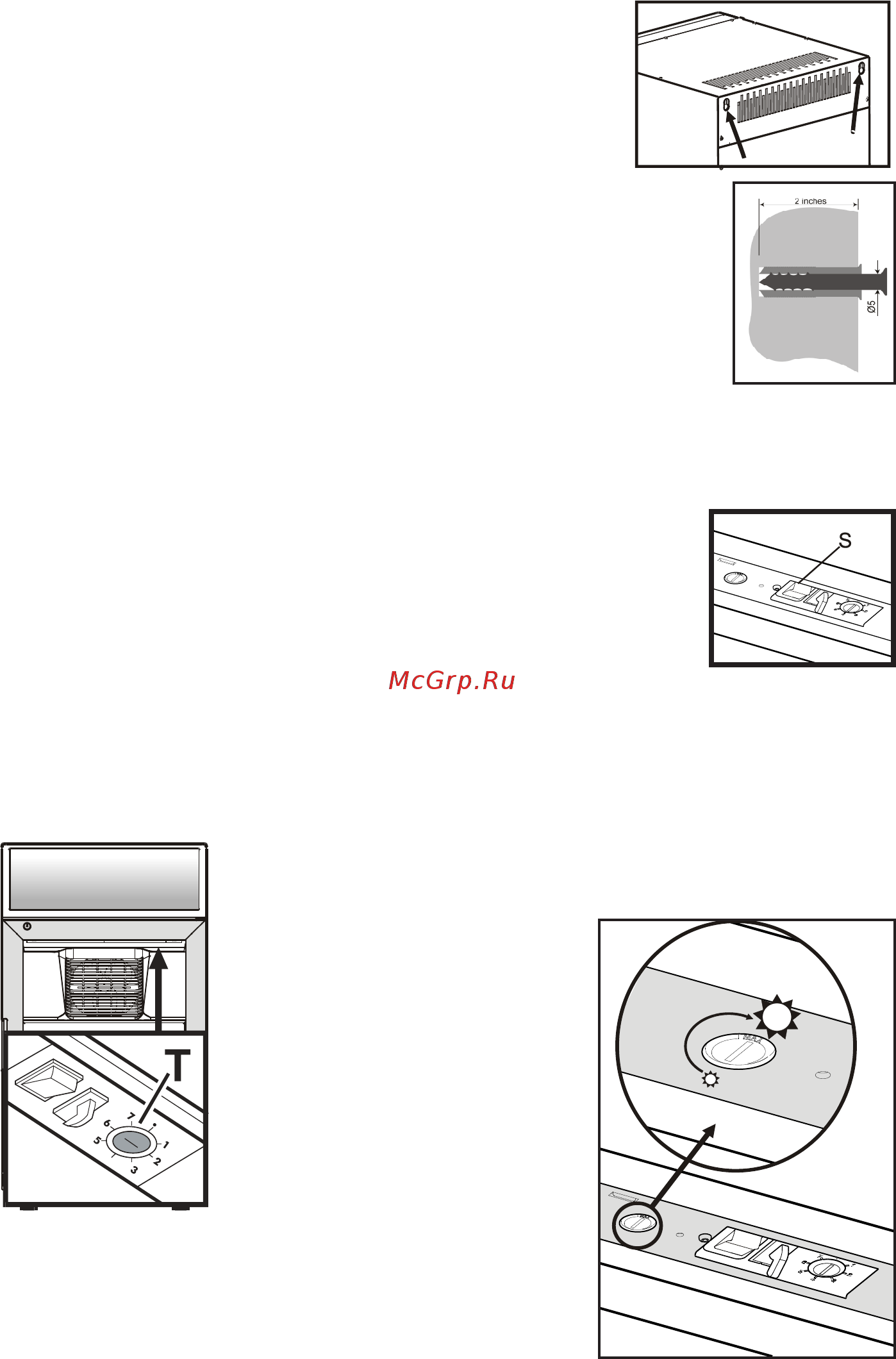

Wall mounting
The appliance can be wall-mounted.
There are two mounting holes at the
top of the back of the appliance.
Make sure the wall and the fasten-
erscan withstand the weight of the
appliance when fully loaded.
Remove goods and shelves on the
appliance interior before mounting.
Mount the appliance on concrete walls only.
Use wall plugs matched for screws with 5mm
diameter.
Use screws with adequate length. Insert the
screw at least 50mm
Switching the appliance on and o
You are recommended to clean the ap-
pliance before switching it on for the rst
time. The appliance is delivered ready
for use and wired for normal operation.
When it is connected up the appliance
is ready for operation. The appliance is
switched o at the “•” setting.
Setting the temperature
Using a coin, turn the arrow on the tem-
perature
control T to a setting between “1” and “7”.
Setting “1” = highest temperature
Setting “7” = lowest temperature
Cooling
This appliance can be used for chilling all types of drinks and
food. The grid shelves can be moved to accommodate dierent
height bottles or packages. High-percentage alcohols should be
tightly sealed and stored upright.
Lighting
LED strips are installed to illuminate the ap-
pliance interior and the display. The interior
light together with the display light can be
turned on and o using the switch S.
Caution - class 1M laser radiation. When
cover is removed, do not look directly
at light through optical instruments.
Severe eye injury can occur.
The lighting may only be replaced by the customer service
technician or by competent skilled personnel!
Do not try to change the LED strips yourself!
Brightness control
To adjust the brightness of the
LED strips :
Insert something (coin , •
screwdriver etc) into knob
slot.
Turn clockwise for brighter •
illumination.
Turn anti-clockwise for dim-•
mer illumination.
GB
