Liebherr Fkvesf 1805 [3/3] Changing over door hinges

Malfunctions

You may be able to rectify the following faults by checking

the possible causes yourself:

• Appliance does not function:

– Is the appliance switched on?

– Is the plug correctly fitted in the mains socket?

– Is the socket fuse intact?

• Loud running noise:

– Is the appliance set up firmly on the floor?

– Does the appliance cause nearby items of furniture or objects to

vibrate? Ensure that the appliance is stable and that all parts at

the back can vibrate freely.Please note that noises caused by the

refrigerant circuit cannot be avoided.

• The temperature is not low enough:

– Is the temperature setting correct (see „Setting the temperature“)?

– Does the separately installed thermometer show the correct read-

ing?

– Is the ventilation system working properly?

– Is the appliance set up too close to a heat source?

If none of the above causes apply and you cannot rectify the fault

yourself, contact the nearest cus-

tomer service department stating

the type of appliance ➊, service

number ➋ and appliance number

➌ as indicated on the type plate.

The type plate is located in the

refrigerator compartment on the

left-hand side.

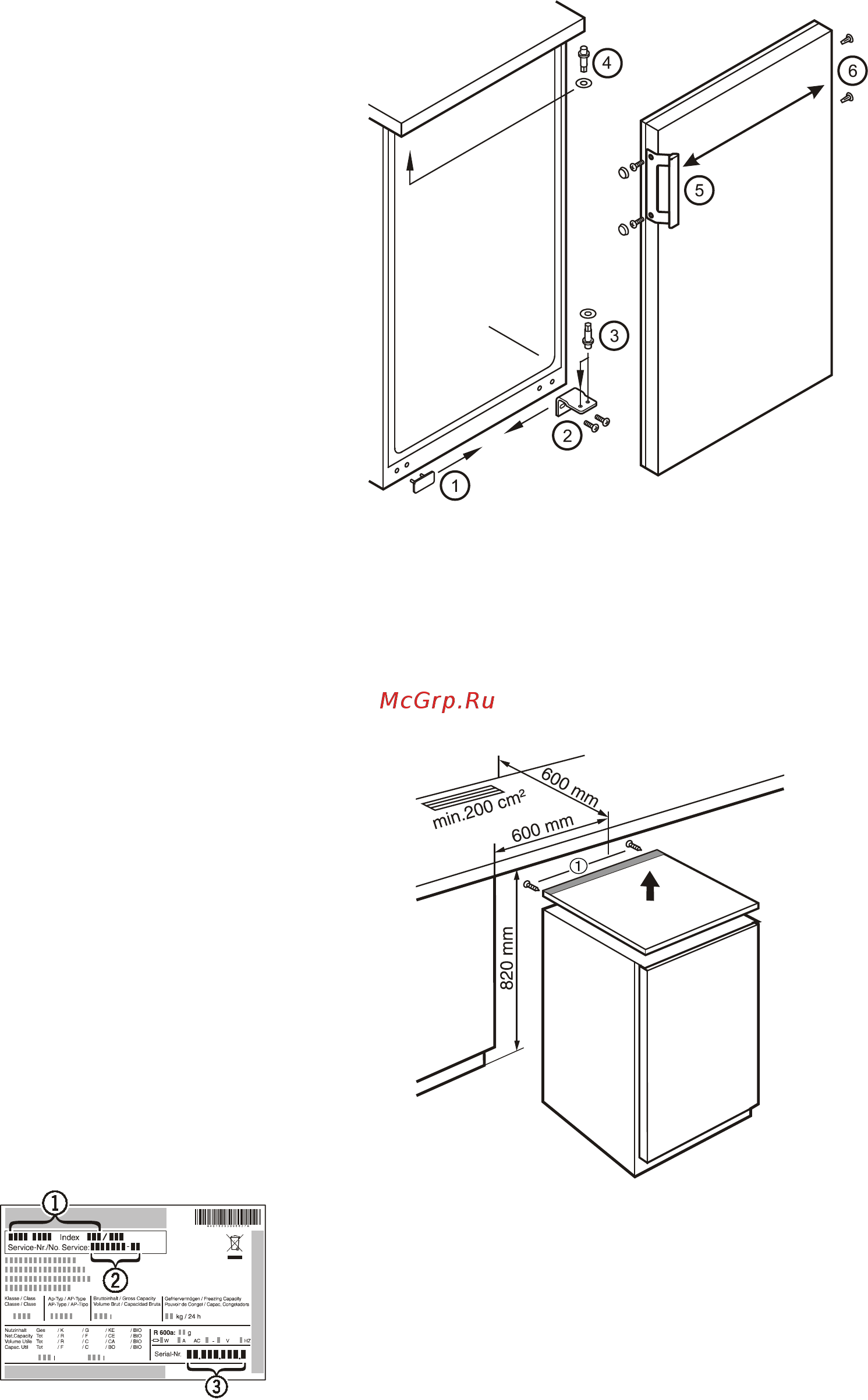

Changing over door hinges

• Close the door and unscrew the hinge bracket ➋.

• Pull the door out at the bottom and lift o.

• Unscrew the hinge pin ➌ from the hinge bracket ➋ and screw

into the adjacent re tain ing hole.

• Unscrew hinge pin ➍ and screw in on opposite side.

• Fit handle ➎ and stoppers ➏.

• Lift o the cover ➊ and seal the exposed retaining holes on the

other side with it.

• Mount door on hinge pin ➍ and close.

• Insert hinge bracket ➋ in lower door mount ing and screw onto

plinth.

Installing beneath a worktop

For continuous worktops the refrigerator‘s tabletop can be de-

tached. The refrigerator can then be pushed under the existing

worktop.

• To take off tabletop remove screws ➊.

• Lift up tabletop and remove.

• A cross-section of min. 200 cm

is re quired in the worktop for

ventilation of the rear of the appliance.

Cleaning

Before cleaning always switch o the appliance. Pull out the

mains plug or remove/unscrew the fuse.

Clean the inside, equipment parts and outer walls with lukewarm

water and a little detergent. Do not use abrasive or acid cleaners

or chemical solvents.

Do not use steam cleaners because of the risk of injury and

damage.

• Ensure that no cleaning water penetrates into the elec trical com-

ponents or ventilation grille.

• Dry all parts well with a cloth.

• The dust should be removed from the refrigeration unit and heat

exchanger - metal grid at the back of the appliance - once a year.

• Do not damage or remove the type plate on the inside of the ap-

pliance. It is very important for servicing purposes.

Cooling

This appliance can be used for chilling all types of drinks and

food. The grid shelves can be moved to accommodate dierent

height bottles or packages. To remove the shelves the door must

be opened wider than 140°.

Shutting your appliance down

If your appliance is to be shut down for any length of time, switch it

o and disconnect the plug or remove the fuse. Clean the appliance

and leave the door open in order to prevent unpleasant smells.

Defrosting

The refrigerator compartment defrosts automatically.

When operating at the coldest thermostat setting, the interior rear

wall may, however, ice up. In this case, the appliance must be

defrosted manually.

• Pull out the mains plug.

• Remove the food from the appliance and store in a cool place.

• Leave the door of the appliance open while defrosting. After

defrosting mop up the remaining water and clean the appliance.

Do not use any mechanical devices or other articial aids for

defrosting other than those recommended by the

manufactur er.
