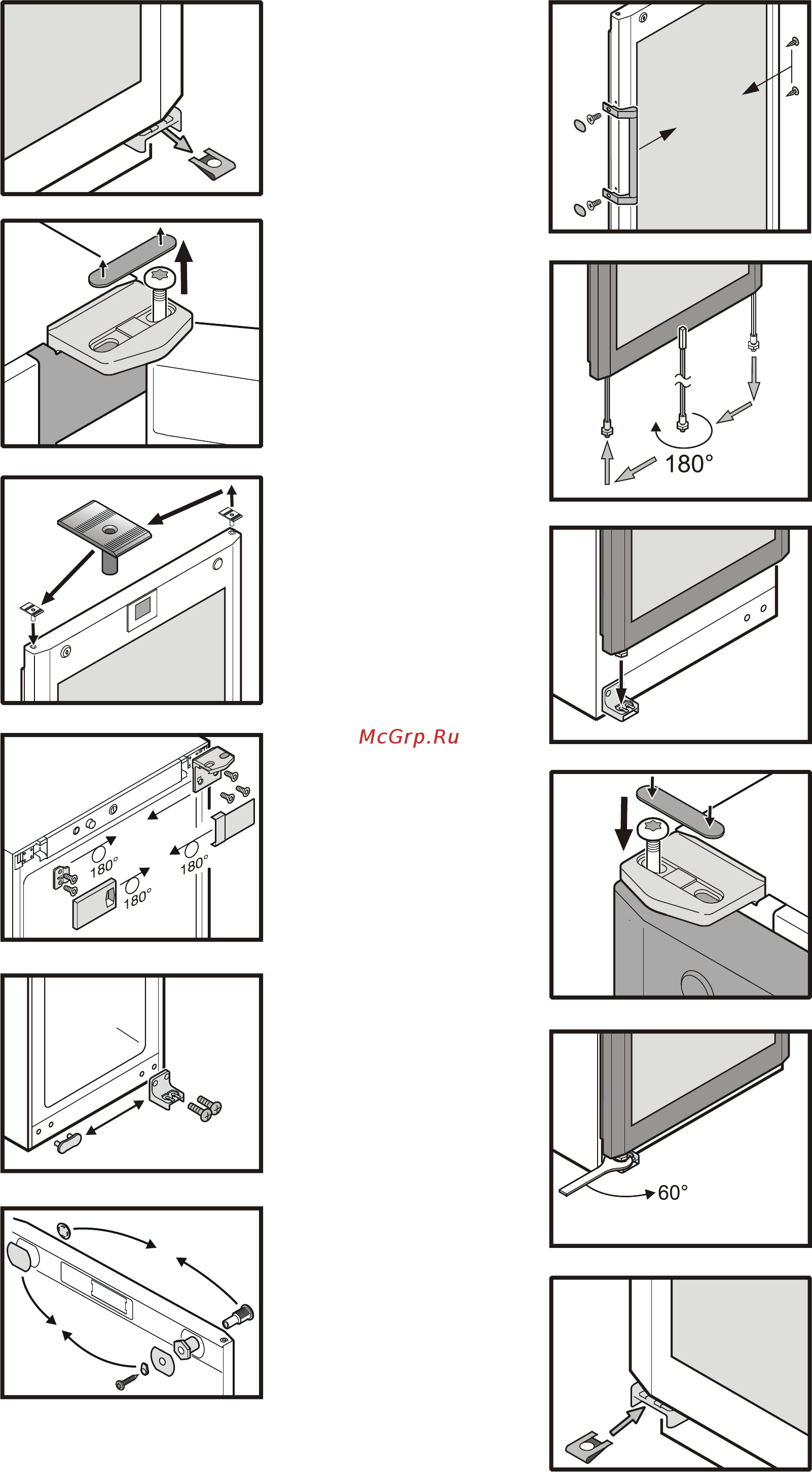

Liebherr FKvsl 3613 [5/5] Changing over door hinges

16. Tighten the torque rod with

the open-ended spanner

provided. > 60°

The hexagon of the torque rod

will lock into the lower hinge

bracket.

17. Fit the circlip on the lower

hinge bracket.

10. Pull out the torque rod from

the right-hand door mount-

ing. The bar is approx. 1130

mm long.

11. Turn the torque rod through

180° horizontally and insert

into the left-hand door

mounting.

12. Place the door on the lower

hinge bracket.

13. Screw in the hinge pin.

14. Align the door at the side

and tighten the hinge pin.

15. Replace cover plate.

9. Transfer handle and plugs to

the opposite side of the door.

1. Pull out the circlip from the

lower hinge bracket.

2. Remove cover plate.

3. Unscrew the hinge pin from

the upper hinge bracket.

4. Remove the door.

5. Transfer clamping plate.

6. Transfer hinge components

and cover plates to the op-

posite side.

7. Transfer lower hinge bracket

and cover plate to the op-

posite side.

8. Transfer lock and cover plates

to the opposite side of the

door.

Changing over door hinges
