–35–

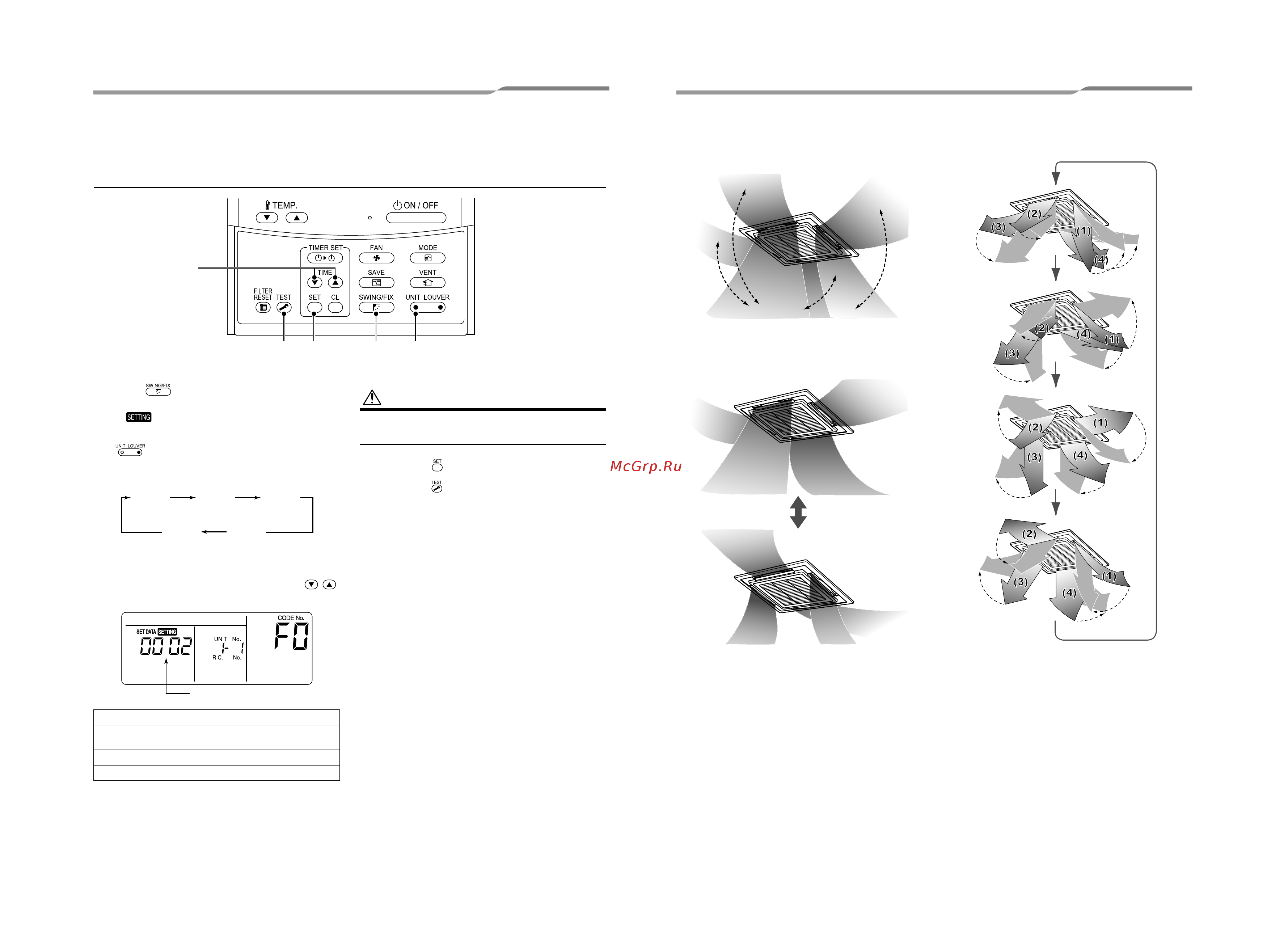

9 Advanced settings
How to set up swing type
1 Push for at least four seconds when
the air conditioner is not working.
• , symbol, and numbers flash.
2 Select an indoor unit to be set by pushing
(left side of the button).
• Each time you push the button, unit numbers
change as follows:
The fan of the selected unit runs and the louvers
start swinging.
3 Select a swing type by pushing TIME
buttons.
CAUTION
Do not set the swing setup code to “0000”.
(This setting may cause a failure of the louvers.)
4 Push the button.
5 Push the button to finish the setting.
2145
3
Swing setup code Swing of louvers
0001
Standard swing
(Factory default)
0002 Dual swing
0003 Cycle swing
Not
display
Unit No.
1-1
Unit No.
2-1
Unit No.
3-1
Unit No.
4-1
Swing setup code
▼ Standard swing
All four louvers swing simultaneously at the same
angle.
▼ Dual swing
Adjoining louver alternately swing horizontally and
downward.
▼ Cyclic swing (Recommended for cooling)
All four louvers swing at different times like waves.
Swing
Horizontal
Downward
Downward
Horizontal
Downward
Downward
Horizontal
Horizontal
