En-3
● OPERATING INSTRUCTIONS ●
RESET
CLOCK
• Make sure the polarity of the batteries is correct.
• Do not use manganese batteries and leaking batteries. The remote controller
could malfunction.
• Do not use rechargeable batteries.
• Replace all batteries with new ones of the same type.
• Batteries can be used for approximately 1 year. However, batteries with
expired shelf lives last shorter.
Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.
• Press RESET and CLOCK gently using a thin
stick.
If the RESET button is not pressed, the remote
controller may not operate correctly.
RESET
CLOCK
Display section
Operation indicator
lamp
Remote control
receiving section
Emergency
operation switch
Page 4
Air inlet (back and side)
Piping
Air outlet
Drain outlet
Remote controller
holder
Signal transmitting
section
Distance of signal :
About 6 m
Beep(s) is (are) heard from
the indoor unit when the
signal is received.
Operation display
section
ON/OFF
(operate/stop)
button
Temperature buttons
Page 4
Operation
select button
Page 4
ECONO
COOL
button
Page 5
FAN speed
control button
Page 5
Off-timer button Page 5
On-timer button Page 5
VANE
control button
Page 5
TIME set buttons Pages 3, 5
Increase time
Decrease time
CLOCK button Page 3
RESET button Page 3
Lid
Slide down to open
• Install the remote control-
ler holder to a place where
the signal can be received
by the indoor unit.
Only use the remote controller provided with the unit.
Do not use other remote controllers.
If two or more indoor units are installed in proximity to one another, an indoor
unit that is not intended to be operated may respond to the remote controller.
Horizontal vane
Vertical vane
Air outlet
Air fi lter
(Catechin air
fi lter, option)
Air inlet
Air cleaning fi lter
(Anti-Allergy Enzyme
Filter, option)
Outdoor unit
Installing the remote controller batteries Setting current time

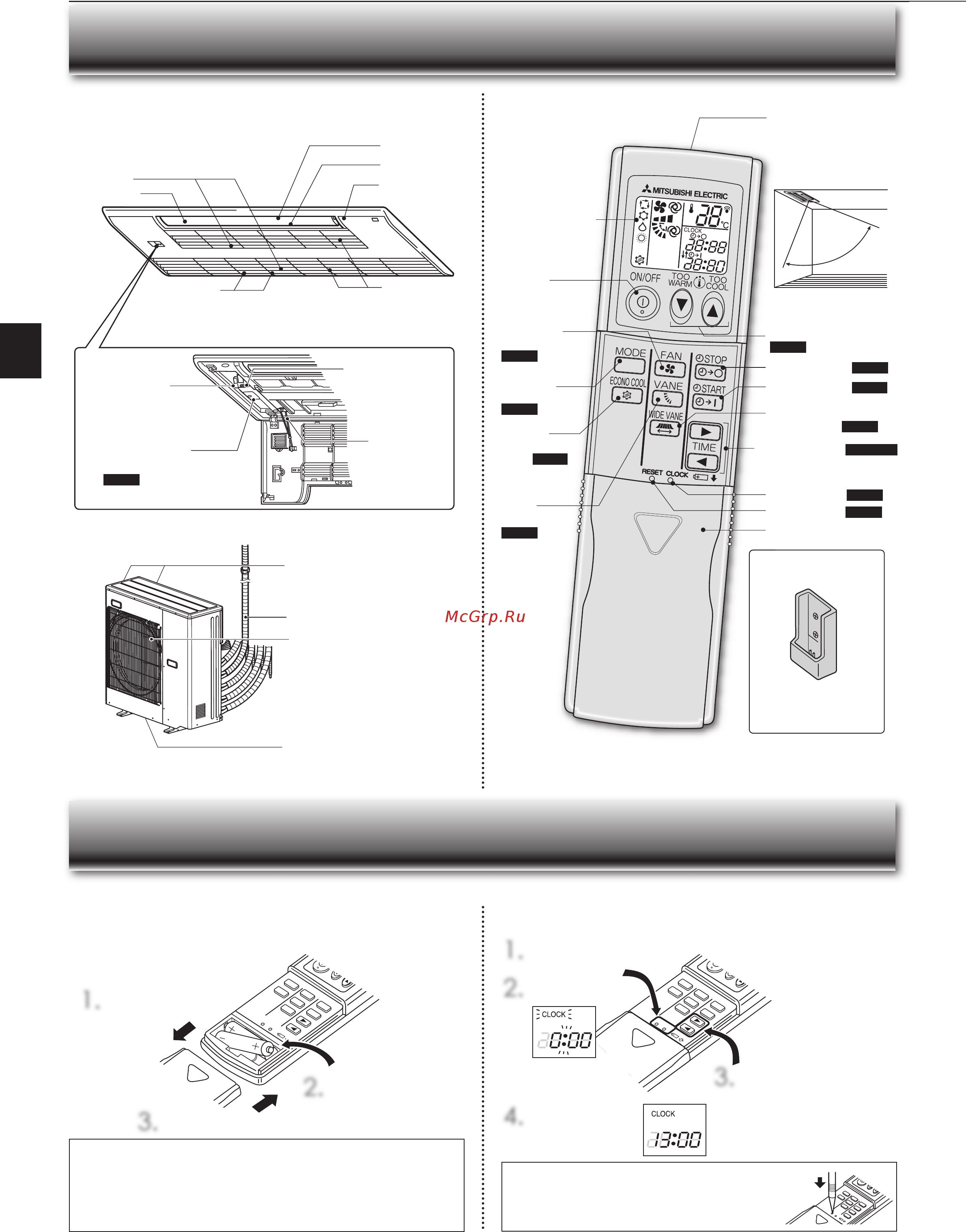

NAME OF EACH PART
PREPARATION BEFORE OPERATION
1.
Remove the front lid.
3.
Install the front lid.
1.
Press RESET.
2.
Press CLOCK.
4.
Press CLOCK again.
3.
Press the TIME buttons to set
the time.
Each press increases/de-
creases the time by 1 minute
(10 minutes when pressed
longer).
Indoor unit Remote controller
Outdoor units may be different in appearance.
Intake grille
Safety strings
WIDE VANE
control button
Page 5
90°
Operate the remote control-
ler in the area where signal is
received, and beep is heard.
2.
Insert the negative
pole of AAA
alkaline batteries fi rst.
JG79A654H03_en.indd 3 2014/06/17 18:56:56
