F1 F2 F3 F4

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

Note:

●

During swing operation, the directional indication on the screen

does not change in sync with the directional vanes on the unit.

● Available directions depend on the type of unit connected.

●

In the following cases, the actual air direction will differ from the

direction indicated on the remote controller display.

1. While the display is in “STAND BY” or “DEFROST” states.

2. Immediately after starting heat mode (while the system is wait-

ing for the mode change to take effect).

3. In heat mode, when room temperature is higher than the tem-

perature setting.

The message at left will appear if

the user selects a function not sup-

ported by the corresponding indoor

unit model.

F1 F2 F3 F4

Title

Not available

Unsupported function

Return:

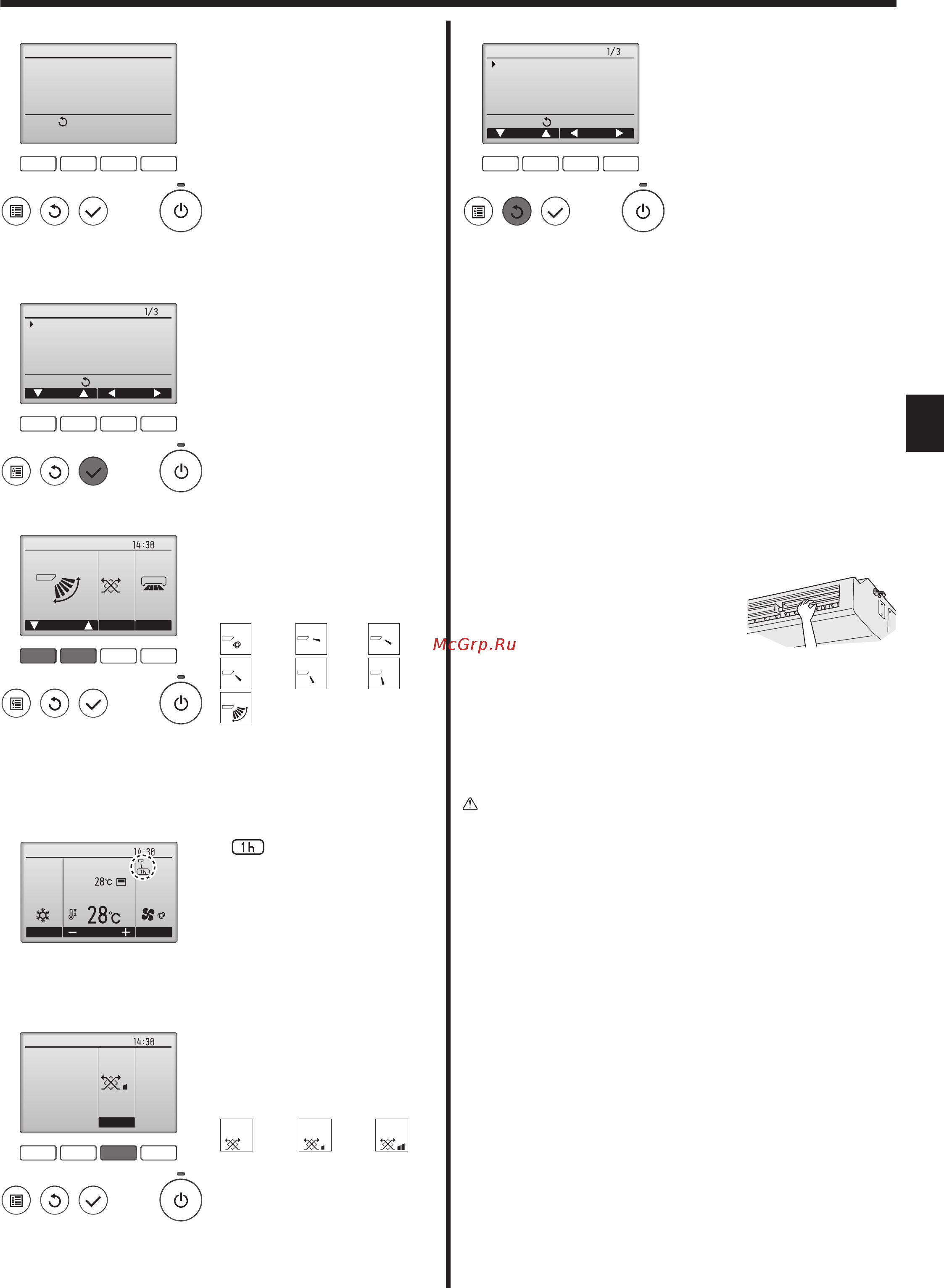

3.5.2 Vane·Vent. (Lossnay)

F1 F2 F3 F4

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

Select "Vane·Louver·Vent. (Loss-

nay)" from the Main menu (refer to

page 8), and press the [SELECT]

button.

F1 F2 F3 F4

Fri

Swing Off Off

LouverVent.Vane

Cool

Room

AutoSet temp.

Mode Temp. Fan

Fri

<Vent. setting>

F1 F2 F3 F4

Fri

Low

Vent.

3. Operation

Press the [RETURN] button to go

back to the Main menu.

Press the [F1] or [F2] button to go

through the vane setting options:

"Auto", "Step 1", "Step 2", "Step 3",

"Step 4", "Step 5" and "Swing".

Select the desired setting.

Auto

Swing

Step 1 Step 2

Step 4Step 3

Swing

Step 5

Select "Swing" to move the vanes

up and down automatically.

When set to "Step 1" through "Step

5", the vane will be ﬁ xed at the se-

lected angle.

• under the vane setting icon

This icon will appear when the

vane is set to "Step 2" to "Step 5"

and the fan operates at "Mid 1"

to "Low" speed during cooling or

dry operation (depends on the

model).

The icon will go off in an hour, and

the vane setting will automatically

change.

Press the [F3] button to go through

the ventilation setting options in the

order of "Off", "Low", and "High".

* Settable only when LOSSNAY

unit is connected.

Off Low High

• The fan on some models of in-

door units may be interlocked

with certain models of ventilation

units.

■

PCA-RP•HAQ

Move the vane to the desired position. (The position of the vane can be

changed within the range from 10

up to 45

down.)

* If the vane is in the downward position during cooling or dry mode,

condensation may form and drip from the air outlet. If this occurs, ad-

just the airﬂ ow direction.

* If the cool airﬂ ow blows directly onto a ﬂ ame, cooking table, or food,

and affects the cooking, adjust the airﬂ ow direction.

<[Manual] To Change the Airﬂ ow's Left/Right Direction>

* The louver button cannot be used.

■

Model PKA-RP·KA

• Stop the unit operation, hold the lever of the louver, and adjust to

the desired direction.

* Do not set to the inside direction when the unit is in the cooling or

drying mode because there is a risk of condensation and water

dripping.

Caution:

To prevent falls, maintain a stable footing when operating the unit.

3.6. Ventilation

For LOSSNAY combination

■ The following 2 patterns of operation is available.

• Run the ventilator together with indoor unit.

• Run the ventilator independently.

Note: (for wireless remote controller)

● Running the ventilator independently is not available.

● No indication on the remote controller.
