- 5 -

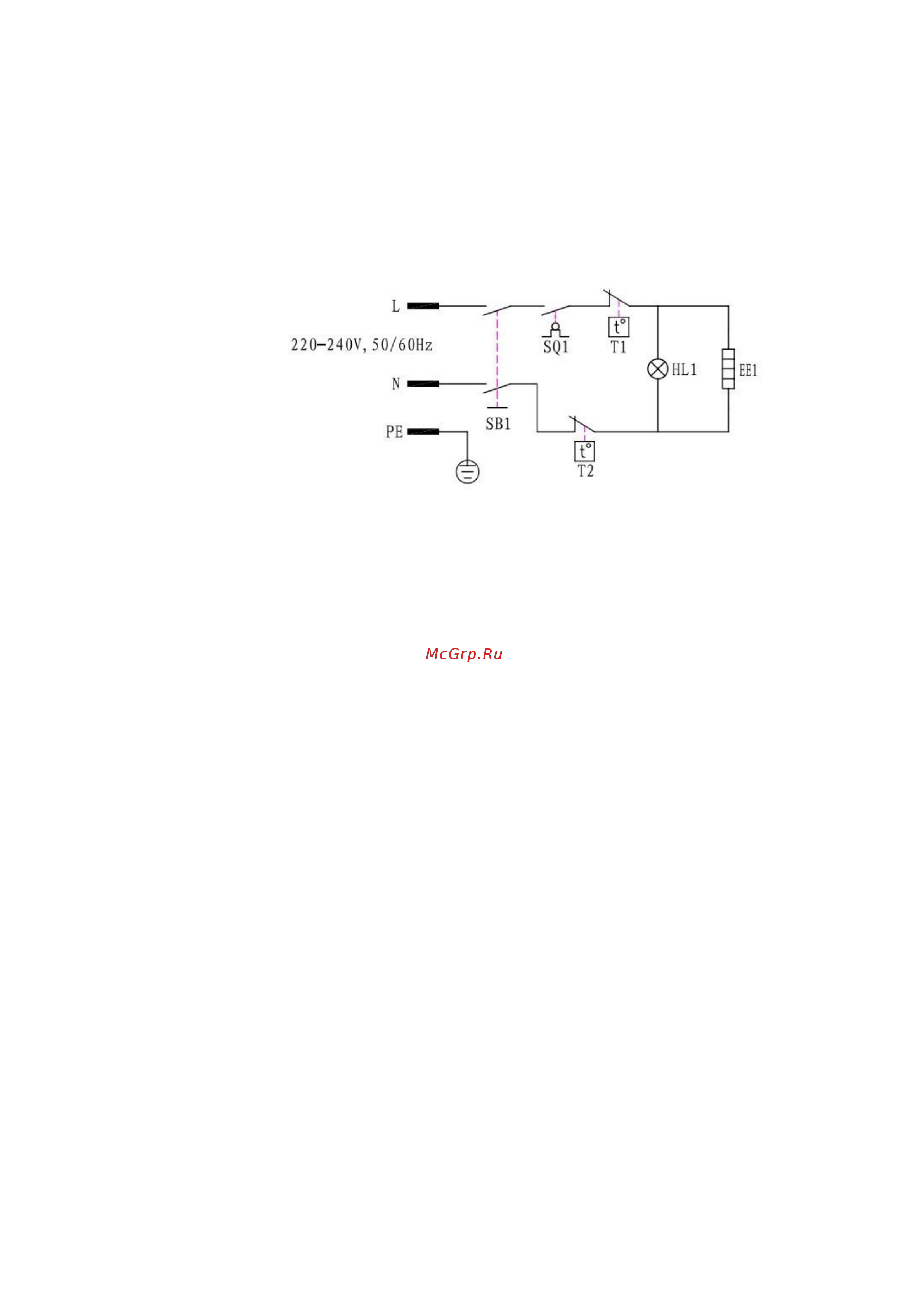

D. Circuit diagram

NOTE: THE CIRCUIT PRINCIPLE OF HDF SERIES 1-TANK/2-TANK DEEP

FRYER IS DIFFERENT. THE DIFFERENCE IS THAT 2-TANK DEEP FRYER

HAS TWO TANK AND TWO ELECTRIC BOX AND TWO SEPARATE

TEMPERATURE CONTROLLER.

E. Instruction

1. Check if the installation of power supply is normal, and make sure

the supplied voltage is coordinated with the using voltage.

2. There is oil level mark in the internal oil pot, when using the quantity

of oil in oil pot should be kept in certain level. “MAX” shows the most

volume of oil, “MIN” shows the less volume of oil .When using, user can

adjust the volume oil according to user

，

s need.

3. 1） Plug the machine and get through power supply ,orange indicator

light is on ,At that time current has been supplied to the machine.

2) Rotate the temperature controller clockwise, put the needed
