Rosso HDF8 [3/16] A structure

The design of this product is new and function is stale .It has

features of beautiful appearance ,reasonable structure ,easy

operation, constant temperature control ,fast heating and saving

oil and energy .It can cook ,fry and warm food .It is an ideal

assistant and first choice for cooking .

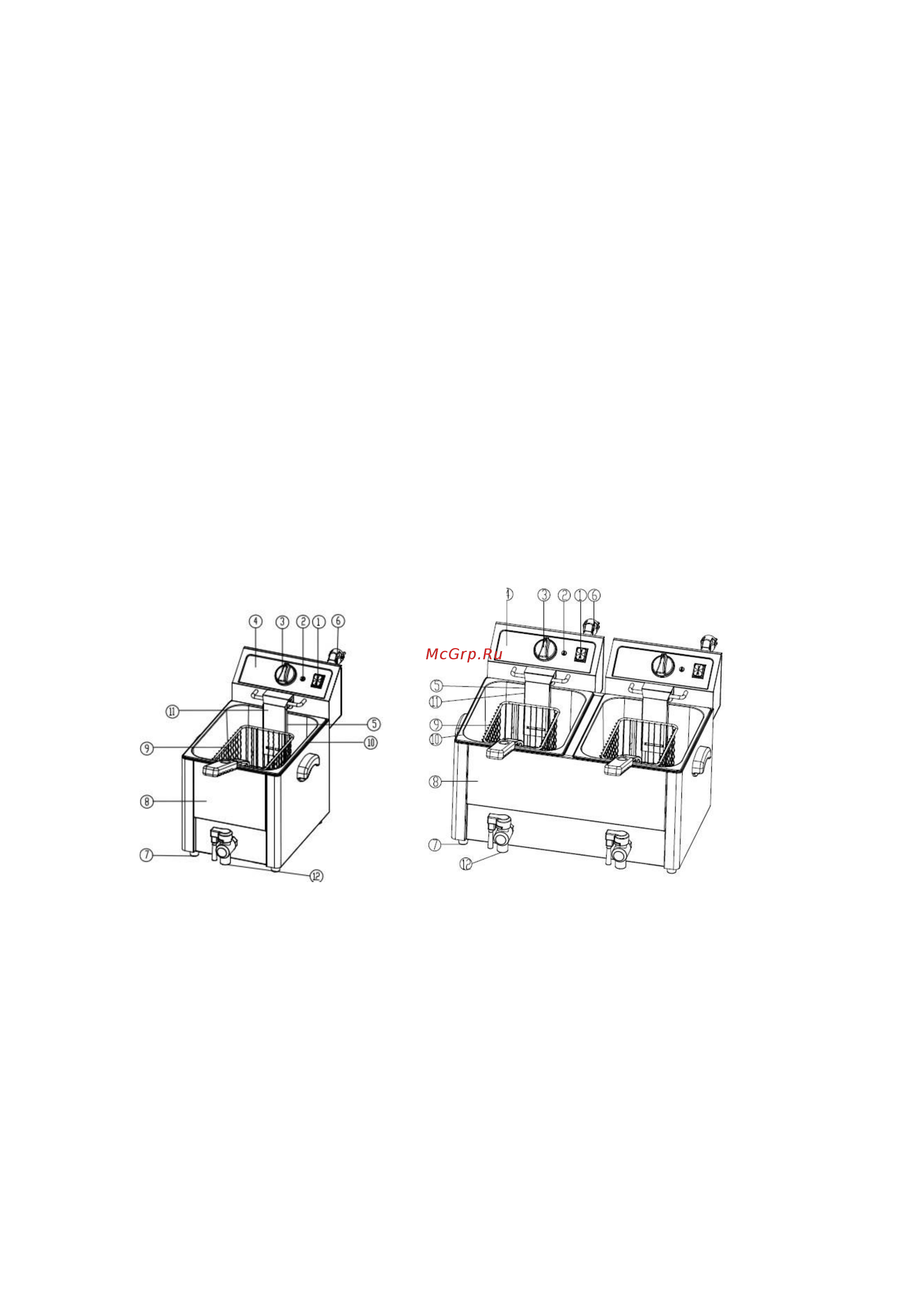

A. Structure

HDF series 1-tank deep fryer HDF series 2-tank deep fryer

1. SWITCH 2. INDICATOR LIGHT 3 TEMPERATURE CONTROLLER

4. ELECTRIC BOX 5. ELECTRIC HEATING TUBE 6. POWER CABLE

7.RUBBER FOOT 8. FRAME 9.FRYING BASKET 10. OIL POT

11.PROTECTING BOARD FOR ELECTRIC HEATING TUBE 12. OIL TAP
