EN
11
Installing Water Filter
(in some models)
Two different water sources may
be connected to the refrigerator for
water supply: the mains cold water
supply and water in a bottle.
Installation Requirements
A pump should be used for bottle water
usage.

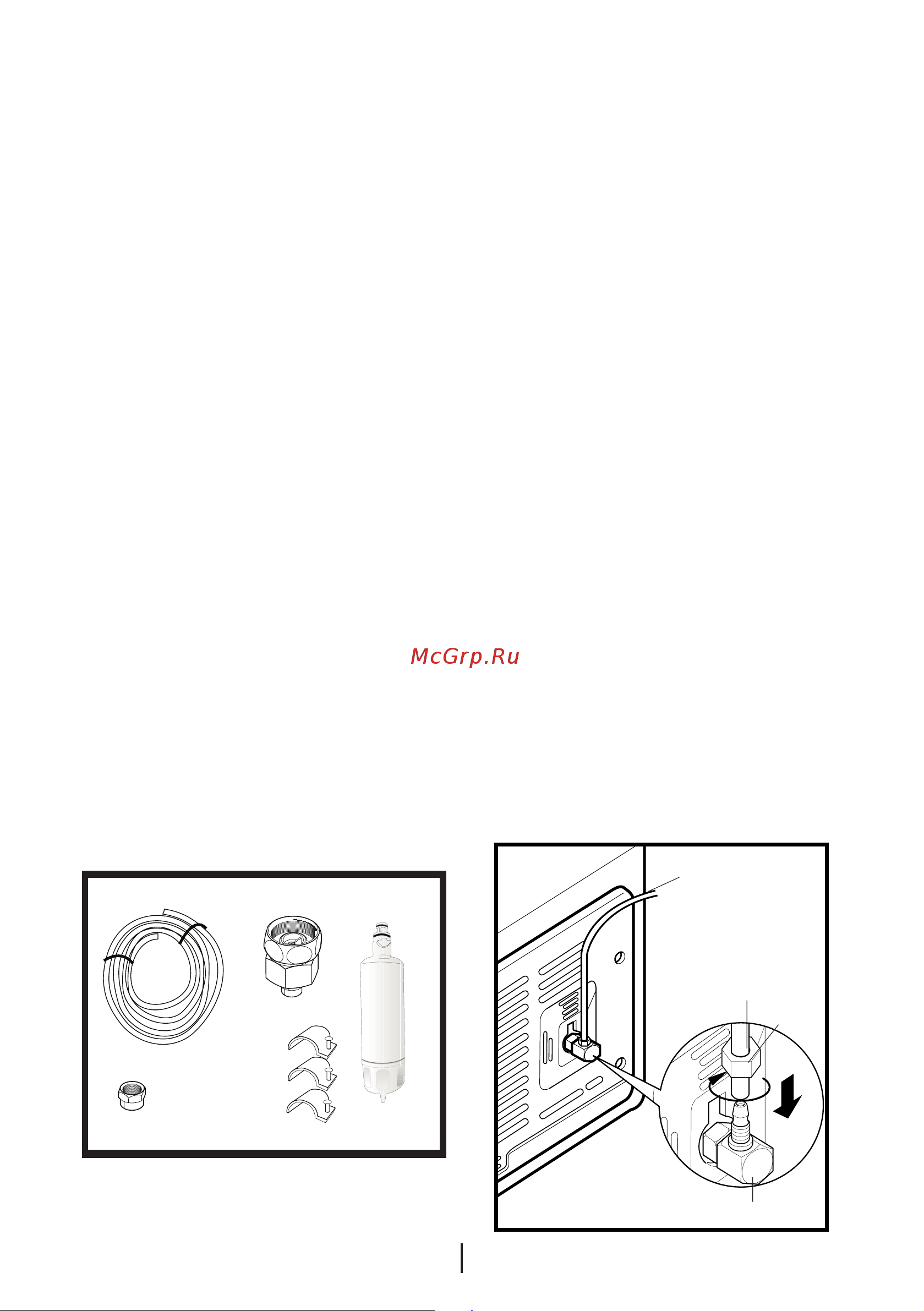

Check that the parts stated below are
supplied with your appliance.
1. Union for connection of the water
pipe to the rear of the appliance. (If it
does not fit, provide it from the nearest
authorized service.)
2. 2 pieces of pipe clips (In case required
to secure the water pipe)
Note: Since the following parts are
not required in use with a bottle, they
may not be found in the product you
purchased.
3. 5-meter long water pipe (1/4 inch in
diameter)
4. Cold mains water valve with mesh filter
(Tap Adapter)
5. Water Filter or externally connectable
filter to be fitted to the bracket inside
the fridge compartment.
Place where the external filter is going to
be fitted should be determined first.
(Applies to the filter being used outside
the refrigerator.) Then, determine the
distance between the filter and the
refrigerator and required hose lengths
from the filter to the refrigerator water
inlet.
Water filter must be hold upright as shown
in the figure. It is important to properly
attach the filter to water inlet and water
outlet points.
After attaching the filter, do not use first 3-4
glasses of water.
Connection of the Water
Pipe to the Refrigerator
1. After installing the union onto the
water pipe, insert the water pipe to
the refrigerator inlet valve by pressing
downwards firmly.
2. Fix union as seen in the opposite
figure, by squeezing by hand on the
refrigerator inlet valve.
(a- Water Pipe, b-Union, c-Valve)
C Note 1: You should not need to
tighten the union with a tool to achieve
water tight assembly. In case of a leak
use a spanner or a pair of pliers to
tighten the union.
3
1
4
2
5
c
a
a
b
1
2
