–15–

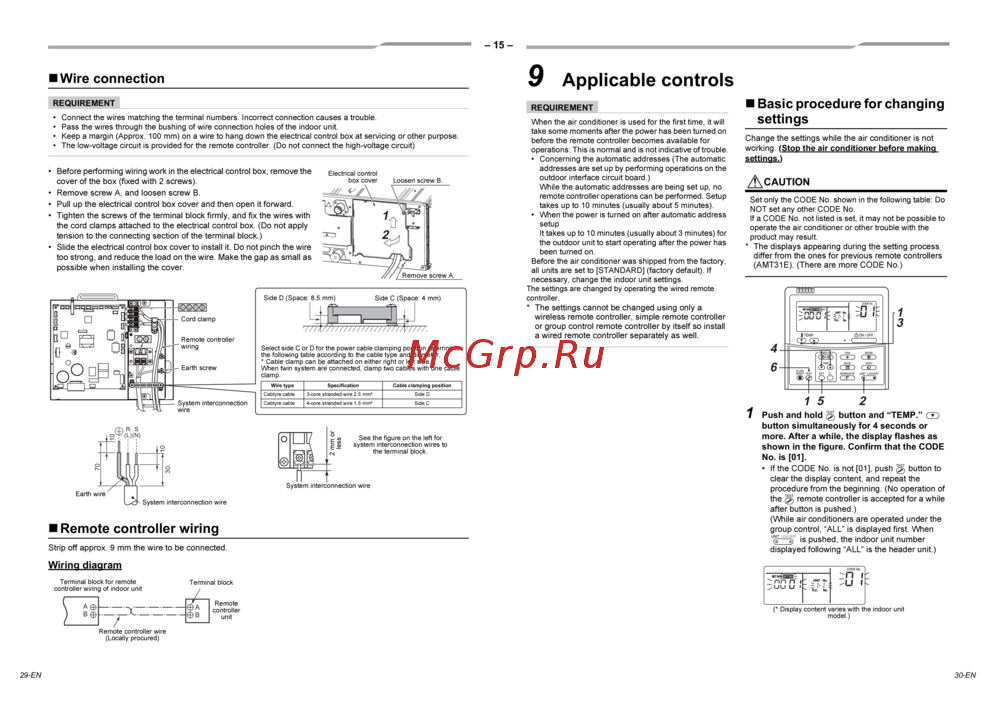

Wire connection
REQUIREMENT
• Connect the wires matching the terminal numbers. Incorrect connection causes a trouble.
• Pass the wires through the bushing of wire connection holes of the indoor unit.
• Keep a margin (Approx. 100 mm) on a wire to hang down the electrical control box at servicing or other purpose.
• The low-voltage circuit is provided for the remote controller. (Do not connect the high-voltage circuit)
•
Remote controller wiring
Strip off approx. 9 mm the wire to be connected.
Wiring diagram
• Before performing wiring work in the electrical control box, remove the
cover of the box (fixed with 2 screws).
• Remove screw A, and loosen screw B.
• Pull up the electrical control box cover and then open it forward.
• Tighten the screws of the terminal block firmly, and fix the wires with
the cord clamps attached to the electrical control box. (Do not apply
tension to the connecting section of the terminal block.)
• Slide the electrical control box cover to install it. Do not pinch the wire
too strong, and reduce the load on the wire. Make the gap as small as
possible when installing the cover.
1
2
Remove screw A.
Loosen screw B.
Electrical control
box cover
NL
BA
System interconnection
wire
Cord clamp
Remote controller
wiring
Earth screw
Select side C or D for the power cable clamping position referring to
the following table according to the cable type and diameter.
* Cable clamp can be attached on either right or left side.
When twin system are connected, clamp two cables with one cable
clamp.
Wire type Specification Cable clamping position
Cabtyre cable 3-core stranded wire 2.5 mm² Side D
Cabtyre cable 4-core stranded wire 1.5 mm² Side C
Side D (Space: 8.5 mm)
Side C (Space: 4 mm)
R
(L)
S
(N)
10
10
30
70
System interconnection wire
Earth wire
2 mm or
less
System interconnection wire
See the figure on the left for
system interconnection wires to
the terminal block.
A
B
A
B
Terminal block
Remote
controller
unit
Terminal block for remote
controller wiring of indoor unit
Remote controller wire
(Locally procured)
9 Applicable controls
REQUIREMENT
When the air conditioner is used for the first time, it will
take some moments after the power has been turned on
before the remote controller becomes available for
operations: This is normal and is not indicative of trouble.
• Concerning the automatic addresses (The automatic
addresses are set up by performing operations on the
outdoor interface circuit board.)
While the automatic addresses are being set up, no
remote controller operations can be performed. Setup
takes up to 10 minutes (usually about 5 minutes).
• When the power is turned on after automatic address
setup
It takes up to 10 minutes (usually about 3 minutes) for
the outdoor unit to start operating after the power has
been turned on.
Before the air conditioner was shipped from the factory,
all units are set to [STANDARD] (factory default). If
necessary, change the indoor unit settings.
The settings are changed by operating the wired remote
controller.
* The settings cannot be changed using only a
wireless remote controller, simple remote controller
or group control remote controller by itself so install
a wired remote controller separately as well.
Basic procedure for changing
settings
Change the settings while the air conditioner is not
working. (Stop the air conditioner before making
settings.)
CAUTION
Set only the CODE No. shown in the following table: Do
NOT set any other CODE No.
If a CODE No. not listed is set, it may not be possible to
operate the air conditioner or other trouble with the
product may result.
* The displays appearing during the setting process
differ from the ones for previous remote controllers
(AMT31E). (There are more CODE No.)
1 Push and hold button and “TEMP.”
button simultaneously for 4 seconds or
more. After a while, the display flashes as
shown in the figure. Confirm that the CODE
No. is [01].
• If the CODE No. is not [01], push button to
clear the display content, and repeat the
procedure from the beginning. (No operation of
the remote controller is accepted for a while
after button is pushed.)
(While air conditioners are operated under the
group control, “ALL” is displayed first. When
is pushed, the indoor unit number
displayed following “ALL” is the header unit.)
1
6
1
3
2
5
4
(* Display content varies with the indoor unit
model.)
29-EN 30-EN
