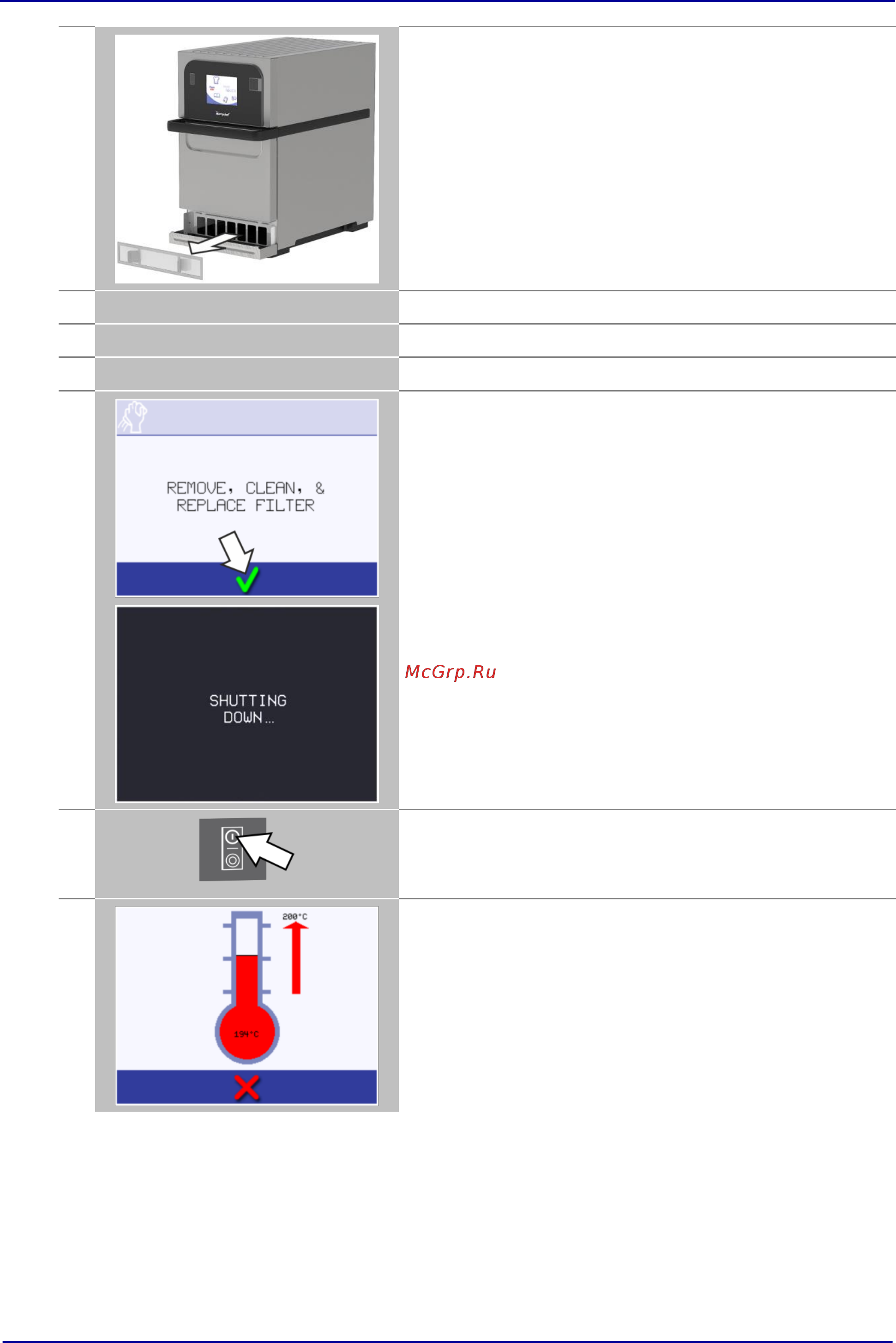

9 Cleaning procedures
eikon e2s Installation and Operating Manual CE 103
8.
Remove the air filter.
9.
Clean the air filter with a damp cloth.
10.
Replace the air filter and tilt the faceplate in its original position.
11.
Clean the oven exterior with a damp cloth.
12.
Press the green check mark to confirm cleaning of the air filter.
The oven switches OFF.
13.
Switch ON the appliance.
If the air filter has not been replaced the screen will display a
warning. Replace the air filter and then press the green tick to
continue.
14.
Preheat the cavity.
Once reaching the preset operating temperature it will take about
30 minutes to cure the protective chemical.
The protective chemical turns light brown when cured.
