Soundmax SM-DVD5112 [15/48] System setup

System setup

1. Press SETUP button to enter the setup menu. In setup mode, press SETUP button again to quit the setup

page.

2. Use LEFT/RIGHT cursor buttons to choose a setup page: General setup page, Audio setup page, Dolby

Digital setup, Video setup page, Preference page.

3. Press DOWN cursor button to enter the setup page selected.

4. Use UP/DOWN cursor buttons to select the option you want to adjust.

5. Press RIGHT cursor button to enter the adjustment list. Use UP/DOWN cursor buttons to select the

adjustment and press ENTER button to confirm and return to options list.

6. To return to setup page list press LEFT cursor button in the options list.

Note: Items in gray can't be set up. The setup is memorized and kept after power off.

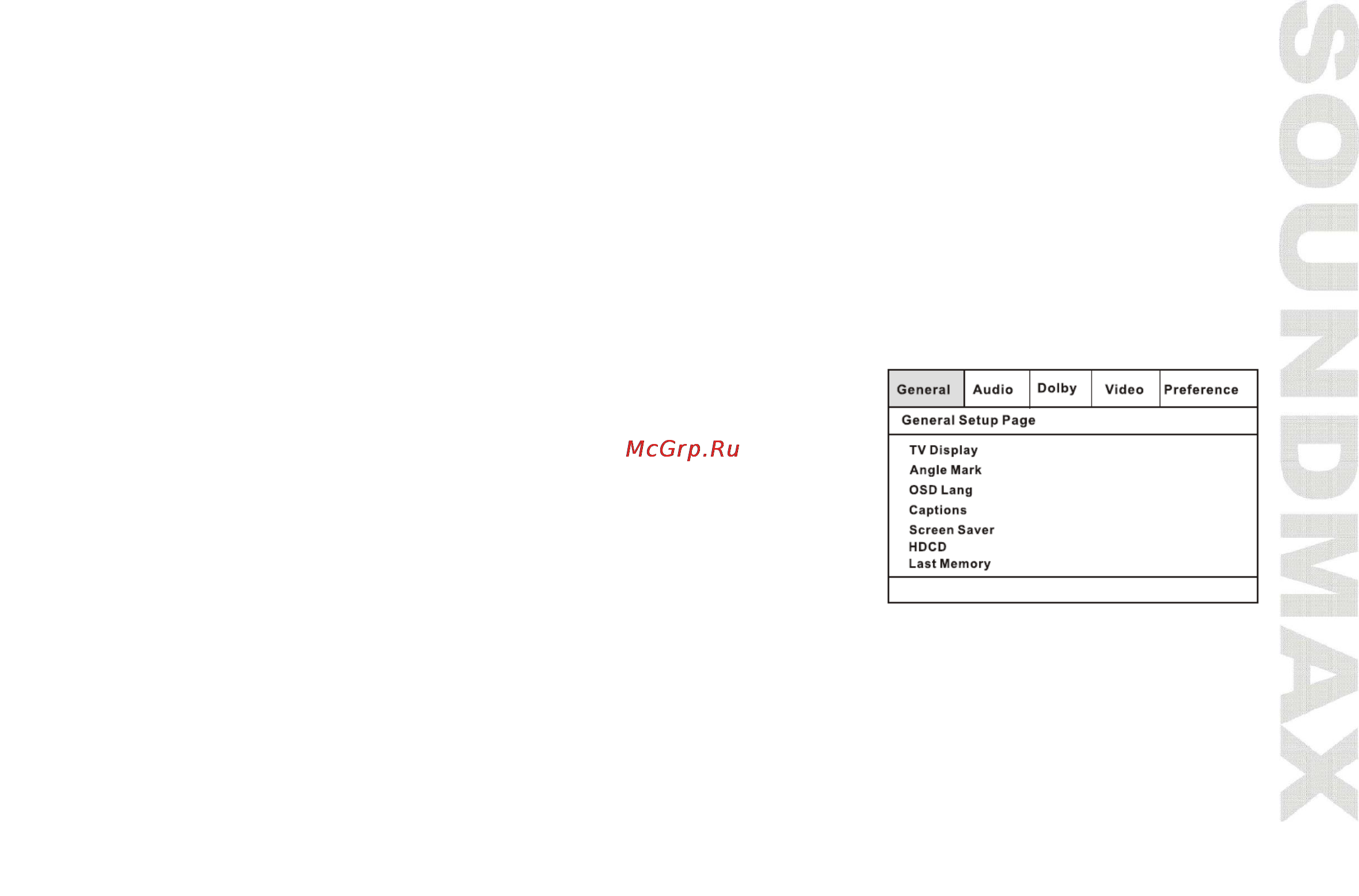

General setup page

 TV Display

4:3/PS: When the unit is connected to the normal TV set, the wide-

screen image is shown on the full screen, but some part is cut off.

4:3/LB: When the unit is connected to the normal TV set, the wide-

screen image is shown and black bars appear on the top and bottom of

screen.

16:9: Use this item when the unit is connected to the normal TV set, if

you want to squeeze the picture.

 Angle Mark

When playing DVD disc with multi-angle view, if selected ON, the angle mark is shown.

 OSD Lang

Select on-screen display language.

 Captions

This function doesn't work when the disc is without caption. If the caption is OFF, press SUBTITLE button on

the remote control to make caption on. The default setup is CAPTION ON.

 Screen Saver
