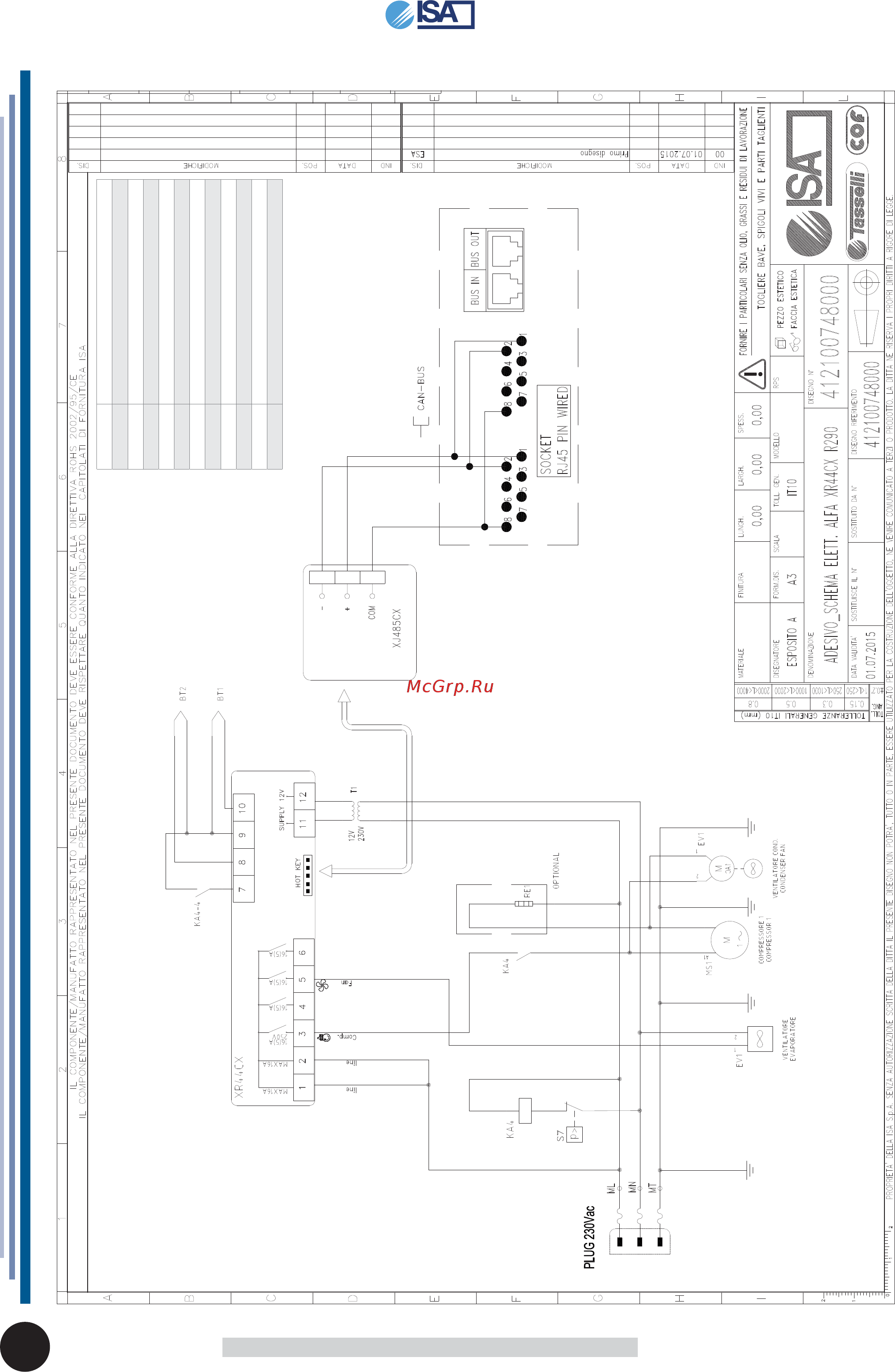

Attachment 4 - WIRING DIAGRAM (412100748000)
BT1 Temperature probe
BT2 Defrosting probe
CE1 Electronic control board
RE1 Heating element
EV1 Condenser fan
EV2 Evaporator fan
KA4 Relay pressostat
CAN-BUS Can-bus
S7 Pressure switch
MS1 Compressor
XS1 Plug supply
T1 Transformer
