INSTALLATION AND COMMISSIONING

This appliance must be earthed.

If replacing the plug connect the terminals as follows:

Green and Yellow wire Earth E

Blue wire Neutral N

Brown wire Live L

Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary

polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)

Push rubber feet into base holes. Install this appliance on a level surface ensuring

all vents are unobstructed. Any partitions, walls or furniture must be of non-

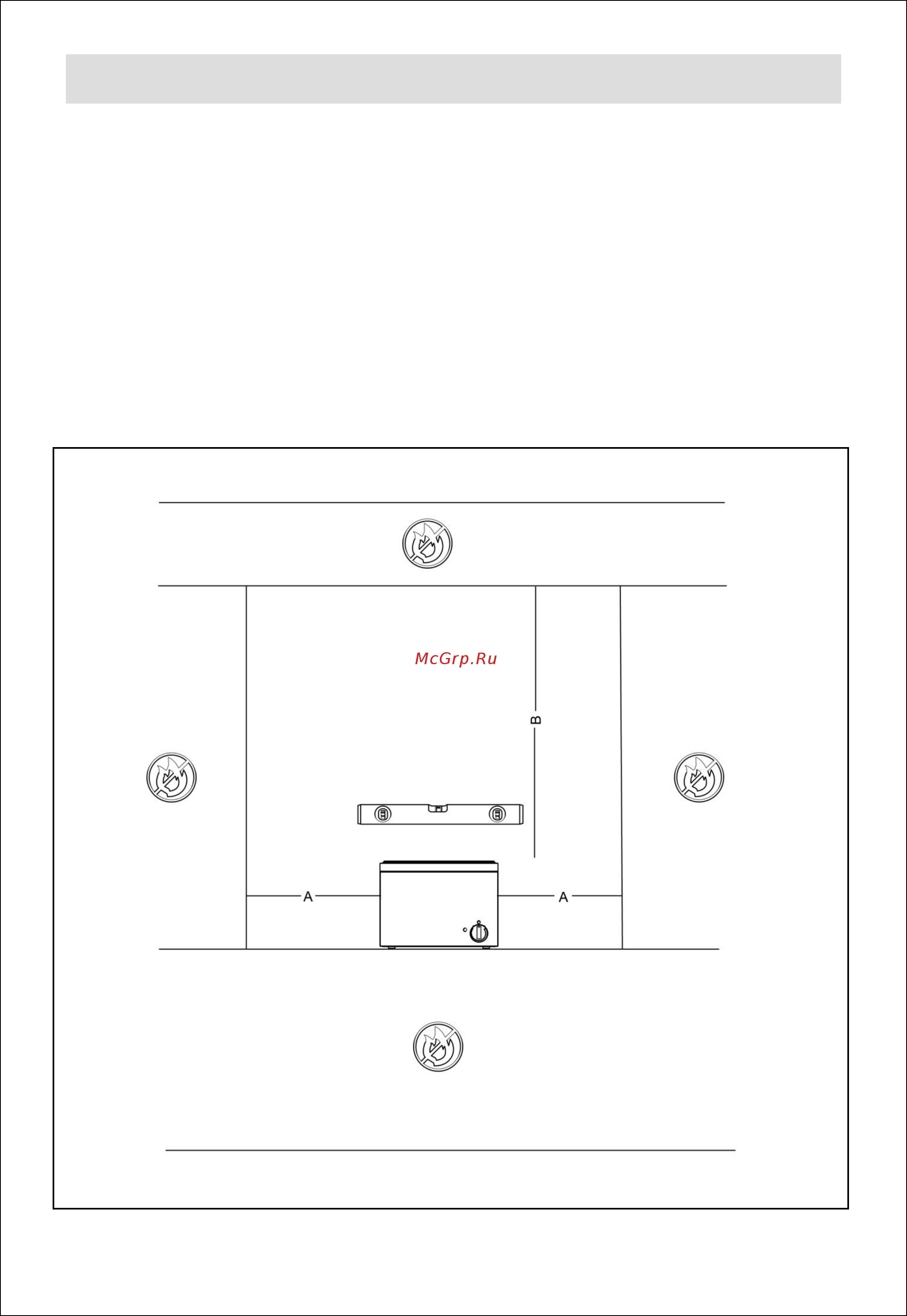

combustible material. Minimum distances A 100mm B 1000mm – see Fig 1.

Fig 1
