Lincat LCG2 [5/7] Operating instructions

IS 315 ECN 3607 Page 5 of 7

Power Ratings

Model

Amps

LCG, LPG, LRG, LCG/S, LPG/S, LRG/S

2.25

9.8

LCG2, LPG2, LRG2

2 x 2.25

2 x 9.8

OPERATING INSTRUCTIONS

Only qualified or trained personnel should use this appliance.

Connect the appliance to an electrical supply. The green neon indicates power to

the appliance.

Turn the control knob to the desired setting – the amber neon illuminates and

extinguishes when temperature is reached.

The amber neon will periodically illuminate as the element cycles.

/S models have a mechanical timer – this does not control the elements.

This appliance is fitted with a safety thermostat, which will cut power to the

appliance under fault conditions. If the green neon illuminates but the appliance

does not heat up, the safety thermostat may need re-setting. Push the red button

on the back of the appliance (Fig 2 – B). This re-set cannot be activated until the

appliance is cool.

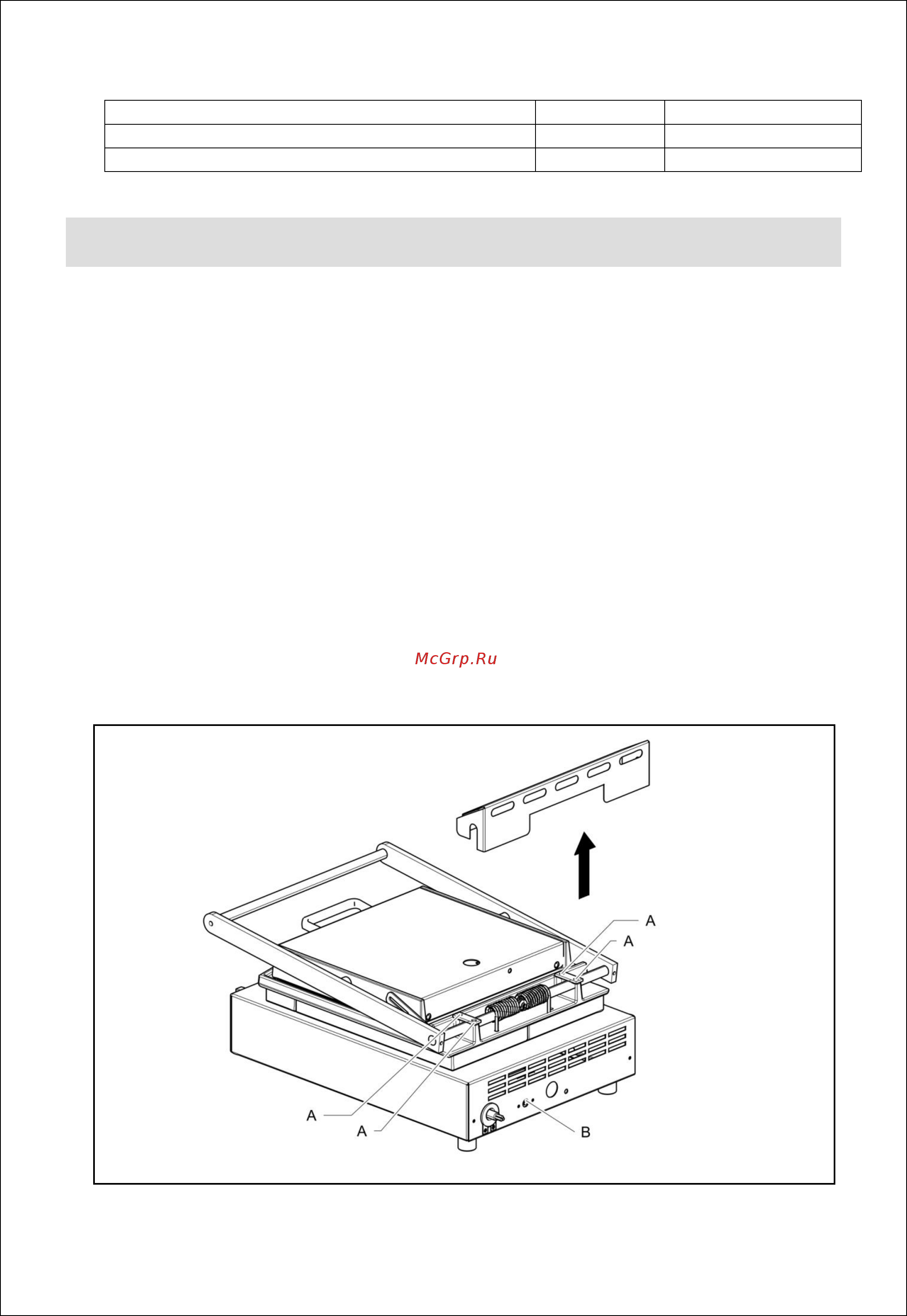

Fig 2
