Lincat LD4 [4/9] Installation and commissioning

IS 280 ECN 3607 Page 4 of 9

INSTALLATION AND COMMISSIONING

This appliance must be earthed.

An equipotential bonding terminal is provided to allow cross bonding with other

If replacing the plug connect the terminals as follows:

Green and Yellow wire Earth E

Blue wire Neutral N

Brown wire Live L

Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary

polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)

Install this appliance on a level surface ensuring all vents are unobstructed. Any

partitions, walls or furniture must be of non-combustible material. Minimum

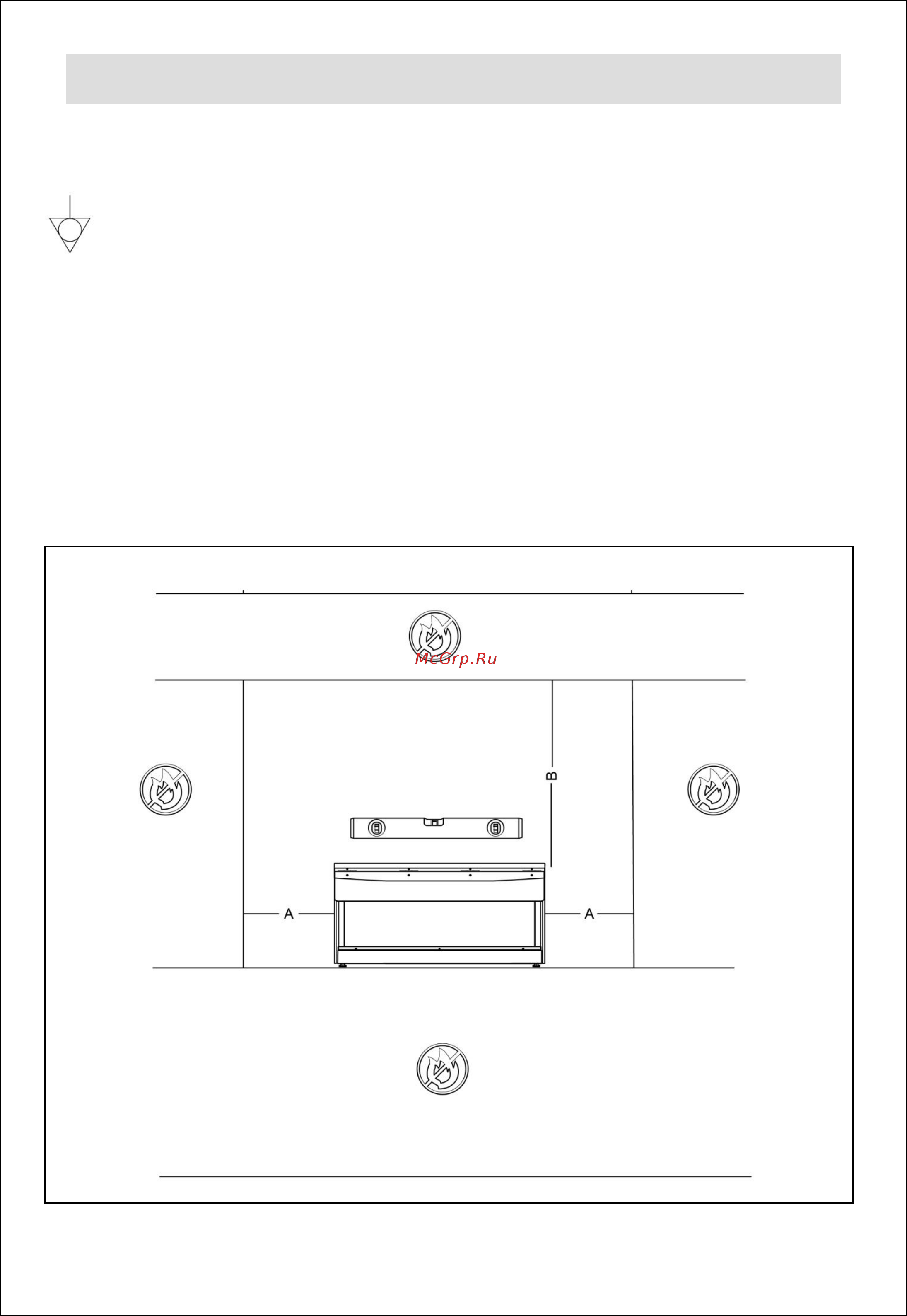

distances A 100mm B 500mm – see Fig 1.
