- 15 -

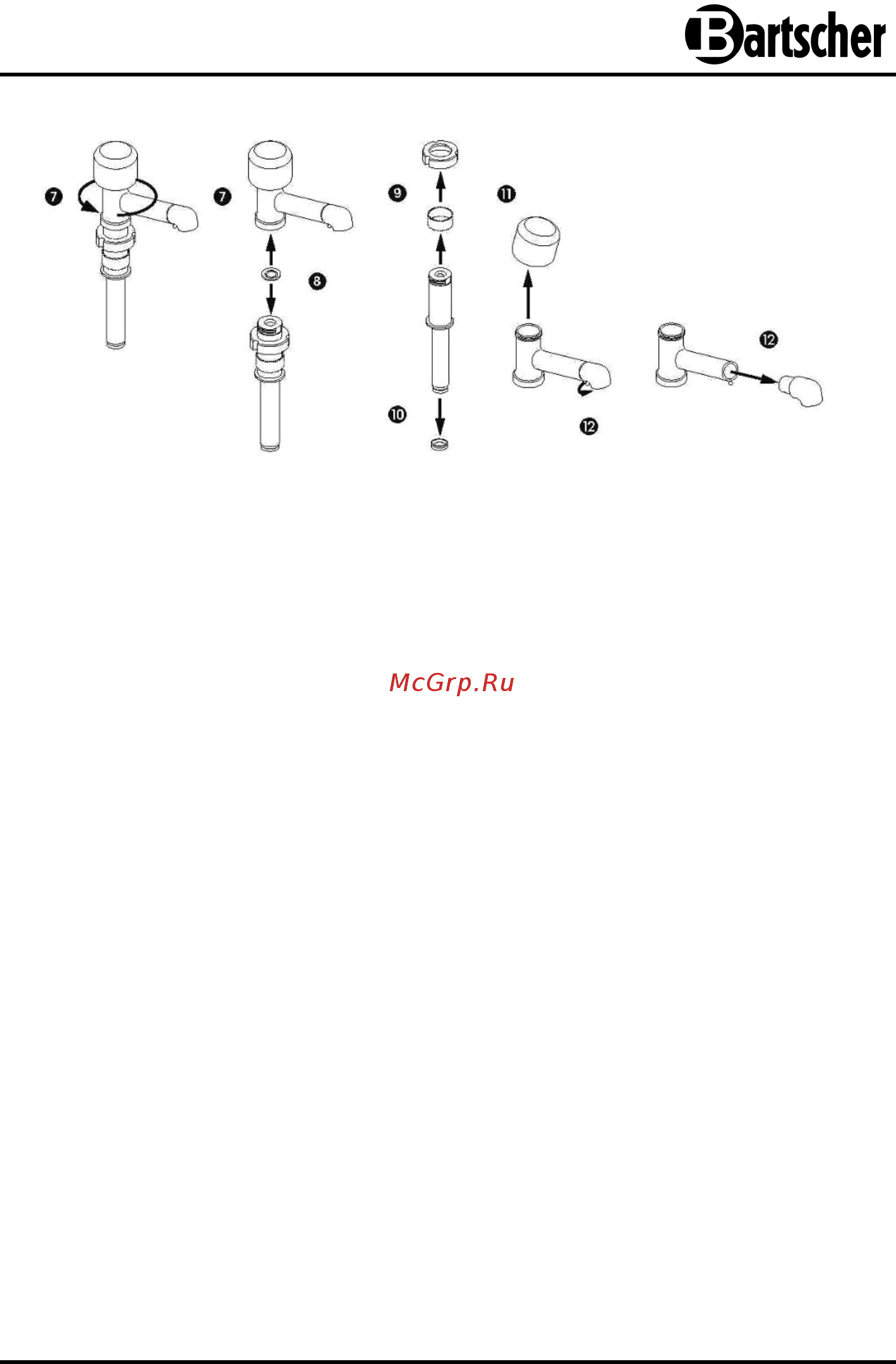

7. Remove discharge tube body from piston by rotating discharge tube body

counterclockwise. Be prepared for ball valve to fall loose when removing discharge

tube body from piston.

8. Remove ball valve from piston, if remaining on end of piston.

9. Remove locking collar and gaging collar(s), if used, from piston by sliding them off.

10. Remove seal from end of piston by rotating and pulling off of lip on piston.

11. Remove knob from discharge tube body by pulling knob at an angle until knob

flanges release from lip on discharge tube body.

12. Remove discharge fitting from discharge tube by releasing fitting loop and pulling

fitting away from discharge tube. Do not use fitting loop on discharge fitting as a

pull.
