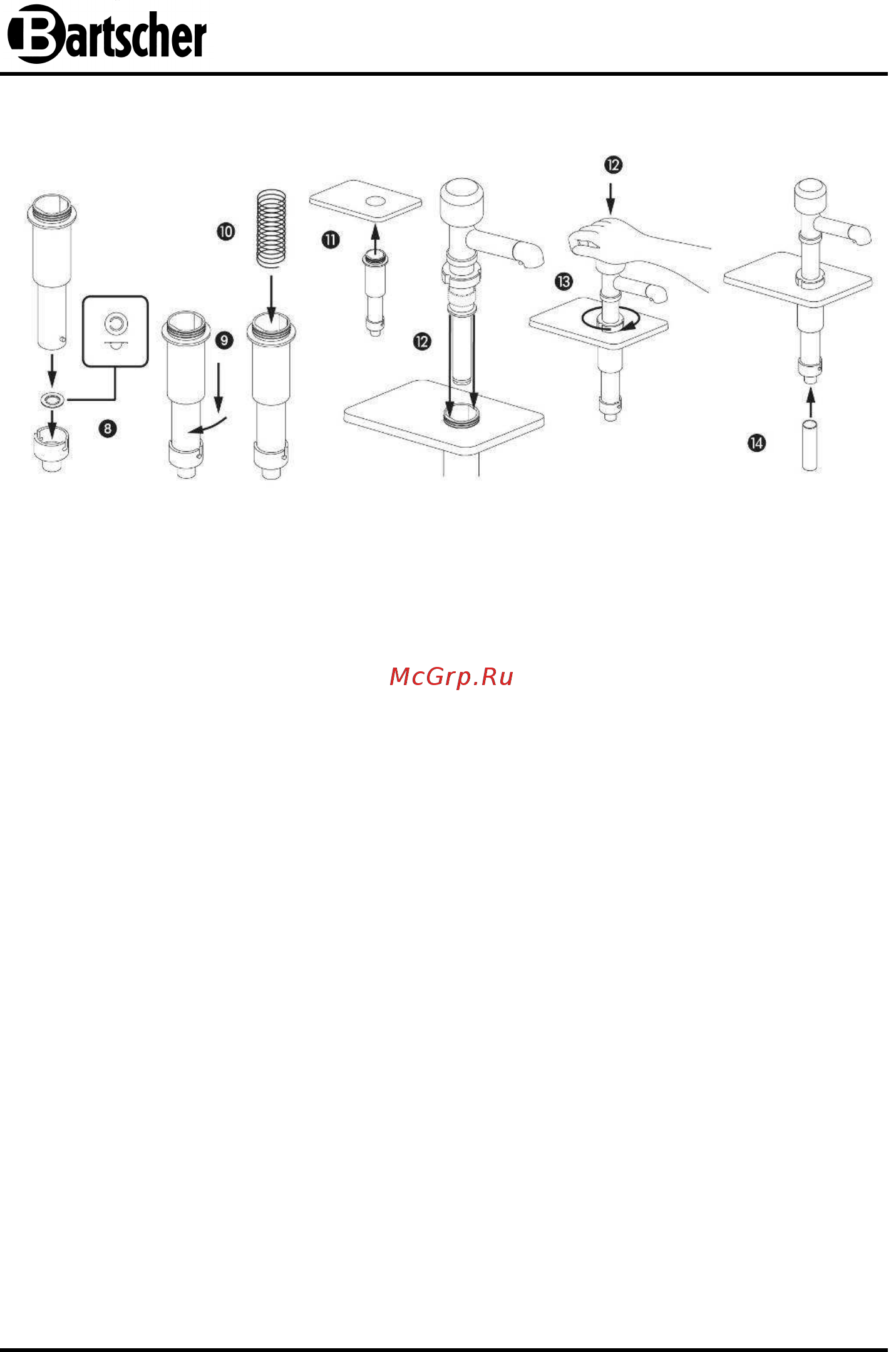

8. Install the other ball valve with the ball side seated down into opening inside

connector.

9. Install bottom end of pump body, with pins, into connector with ball valve in position

resting inside connector. Compress ball valve slightly and rotate pump body into

connector until pins secure into slots in connector.

10. Install spring into pump body.

11. Install lid onto pump body by aligning large hole in lid to rest on threaded lip of pump

body assembly.

12. Install plunger assembly into pump body assembly. Compress pump and rotate until

flats on piston align into position with flats inside cylinder.

13. While compressing pump, rotate locking collar clockwise to secure onto threading of

cylinder.

14. If suction tube is included, install onto bottom of connector. The suction tube may be

cut with scissors to the needed length.
