Curtis CGCE [3/8] Brewer parts identification

Service & Sales

1-800-421-6150

www.wilburcurtis.com

Service & Sales

1-800-421-6150

www.wilburcurtis.com

PART #

DESCRIPTION

1. WC-1809 FAUCET, HOT WATER

2. WC-817 VALVE, DUMP RIGHT 120V 12W

3. WC-889 VALVE, DUMP LEFT 120V 12W

4. WC-2962-101K KIT, FITTING SPRAYHEAD KYNAR

5. WC-29025 SPRAYHEAD, PURPLE

6. WC-826L VALVE, INLET

7. WC-43062

GASKET, LID

8. WC-5527K KIT, PROBE WATER LEVEL O-RING NUT

9. WC-5310 TUBE, 5/16 SILICONE

WATER RELATED HEAT RELATED

PART #

DESCRIPTION

MASTER CONTROL

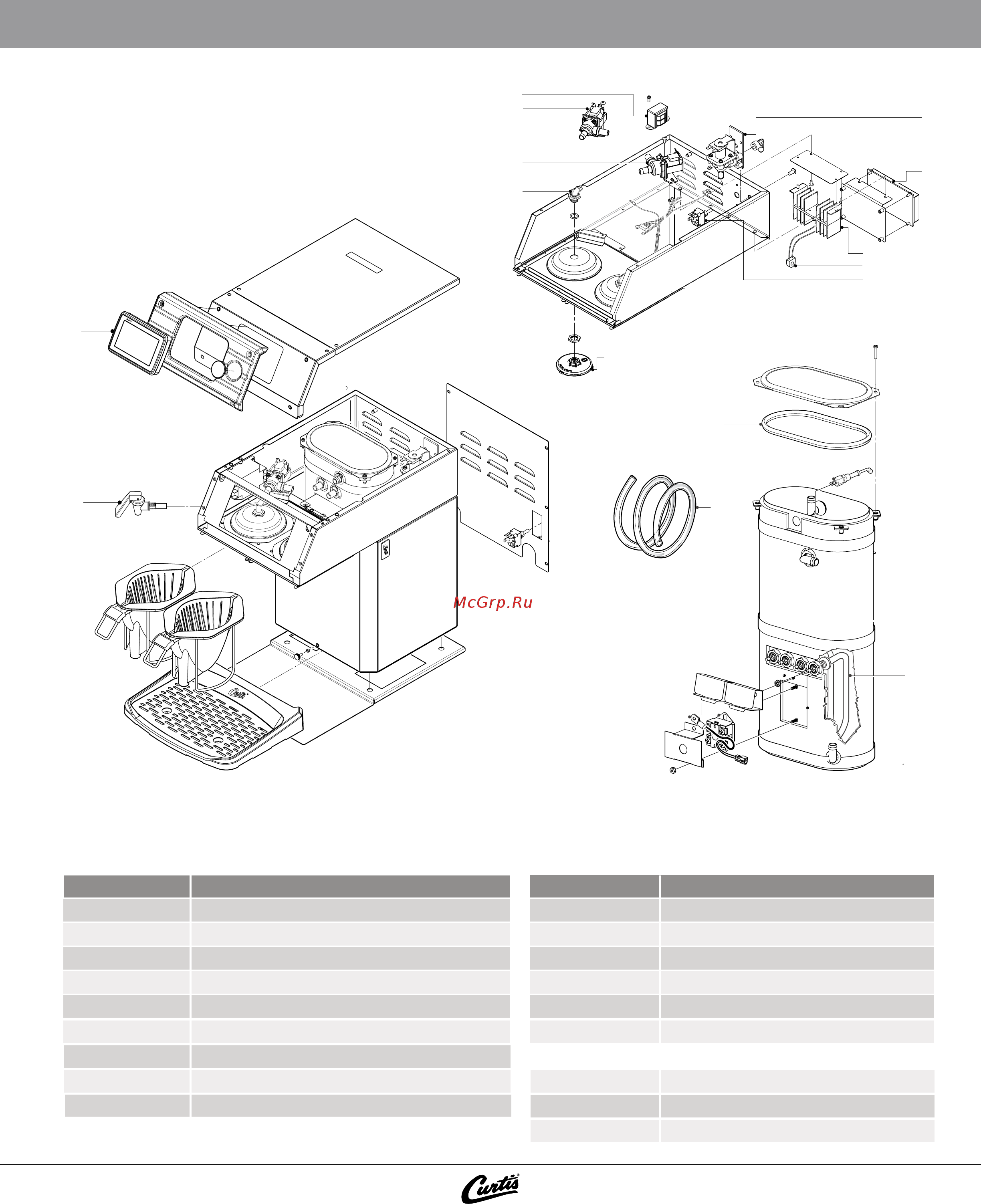

BREWER PARTS IDENTIFICATION

10. WC-589-101 TRANSFORMER, 120/230VAC

11. WC-6193-0 HEATSINK AND TRIAC

12. WC-14045-101 CURRENT SENSOR ASSY G4

13. WC-522 THERMOSTAT, HI LIMIT HEATER

14. WC-1438-101 SENSOR, TEMPERATURE TANK

15. WC-917-04 ELEMENT, HEATING W/ JAM NUT WASHER

16. WC-10000

CONTROL MODULE, G4

17. WC-10001

UNIVERSAL POWER MODULE, G4 (UPM)

18. WC-103 SWITCH, TOGGLE DPST 25A 125/25OVAC

MAIN VIEW

TOP VIEW

TANK VIEW
