5. Configuration of DEVICE ID & mode
- When configuring the Device ID, set up Dip switch on the back panel of the product.
(Different ID should be used when installing the multiple floor distributor.

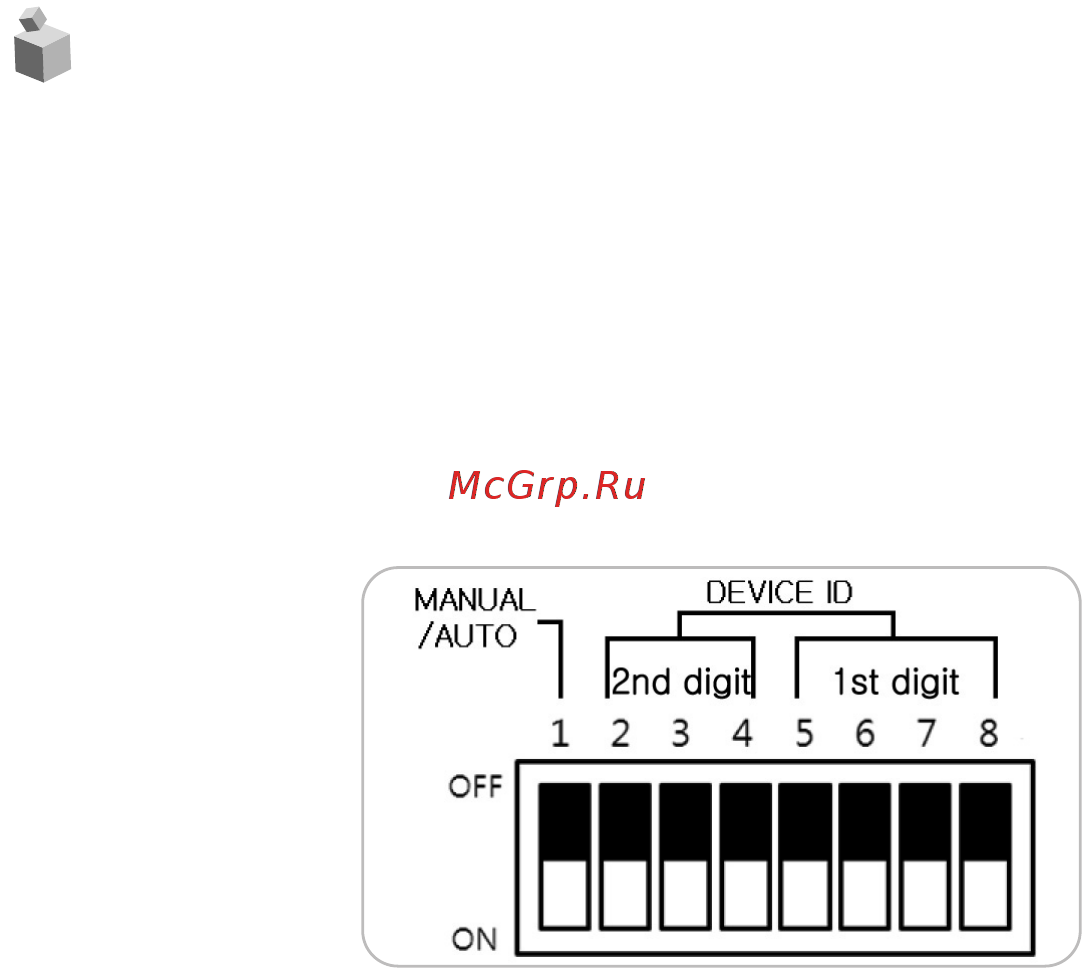

● Functions for each switches
# 1 (Select MANUAL /AUTO) : OFF= MANUAL / ON=AUTO
# 2 ~4 (ID configuration: 10 digit figure) : Composed of BCD code (Refer to picture
below)
# 5~6 (ID configuration: single digit figure) : Composed of BCD code (Refer to picture
below)
