21

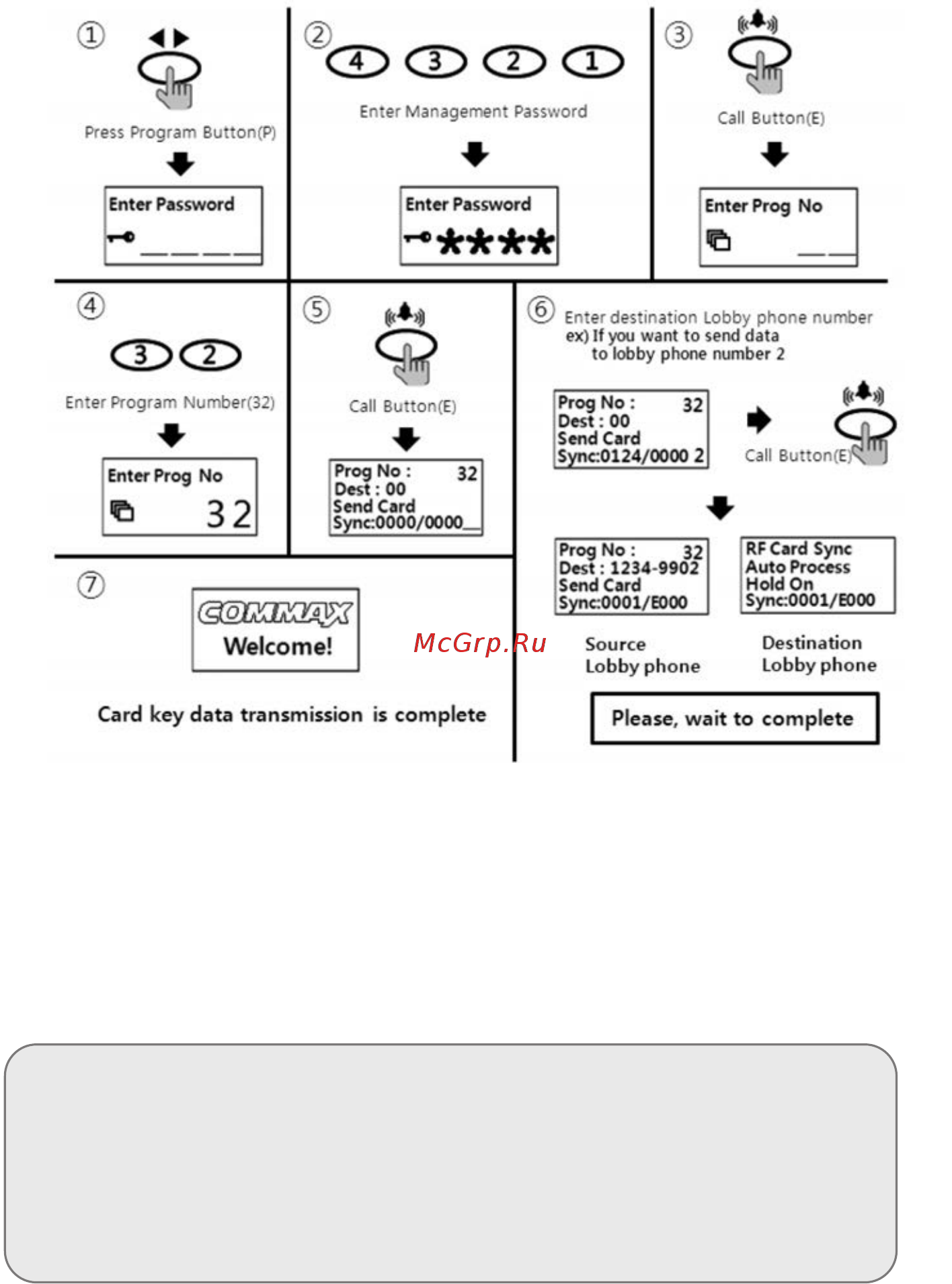

8-7. RF card key data transmission
• P - Management Passwords - E - 32 - E - Press destination lobby phone number - E
① Press Program Button "P"
② Press Management password
③ Press Call Button "E"
④ Press number "32" for data transmission
⑤ Press Call Button "E"
⑥ Press number "destination lobby phone number"
⑦ Press Call Button "E"
<References>
• Data can be sent only if the mode "99" in the program number(23) is
selected & executed the process within 30 seconds.
• You cannot use any other function before it completes(It takes about 5
minutes). If you want to complete more quickly, use the download
program.
