6

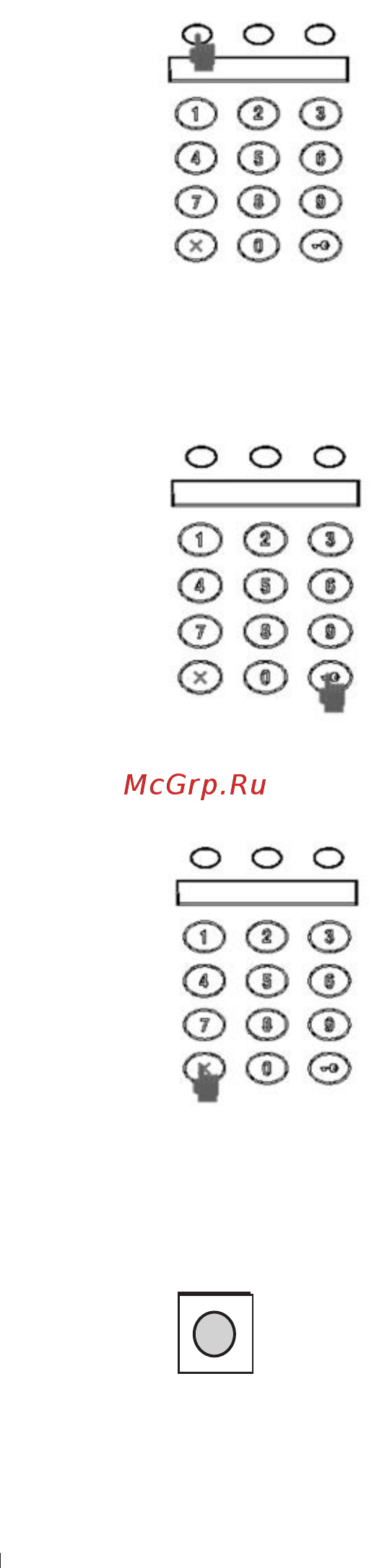

✽ Name searching button ⑥(S : Search)
Tenants name searching button.
✽ Cancel button ⑩(X : Cancel)
When user wants to cancel function, press it.
✽ Reset button ⑮
Reset security guard password or management office password.
When forgot password, press reset button which is on back side of products 15
(Press & Hold over 3 sec. after power on)
✽ Electric key button ⑫(K : Key)
Open door by Password Number.
(Deactivate Password LOCK function only.)
