English
7
/ /
[ SRC / ] Button
• Power / Toggle the audio source
[BAND] Button
• Select tuner band
[MENU] Button
• MP3/WMA mode – Search function.
• CD mode – No function.
• RADIO mode – PTY select.
• AUX mode – No function.
• USB mode – Search function
• iPod mode – iPod menu
[ ] Button
• Press to eject disc.
[ , ] Buttons
• Previous / next track
• Search (long press)
[Open] Button
• Unlock the front panel.
[PS / AS] Button
• Scan play / Preset scan
• Auto memory store (long press)
[SOUND] Button
• Sound effect setting
[VOLUME] Knob
• Adjust volume level / Conrm (press)
[TA] Button
• Trafc announcement
[1~6] Buttons
• [1] Button: Scan play / Preset station 1.
• [2] Button: Repeat play / Preset station 2.
• [3] Button: Random play / Preset station 3.
• [4] Button: Play / Pause / Top play (long
press) / Preset station 4.
• [5] Button: Previous folder / Preset station 5.
10 tracks down (long press)
• [6] Button: Next folder / Preset station 6.
10 tracks up (long press)
[D] Button
• Display switch
• System setup (long press)

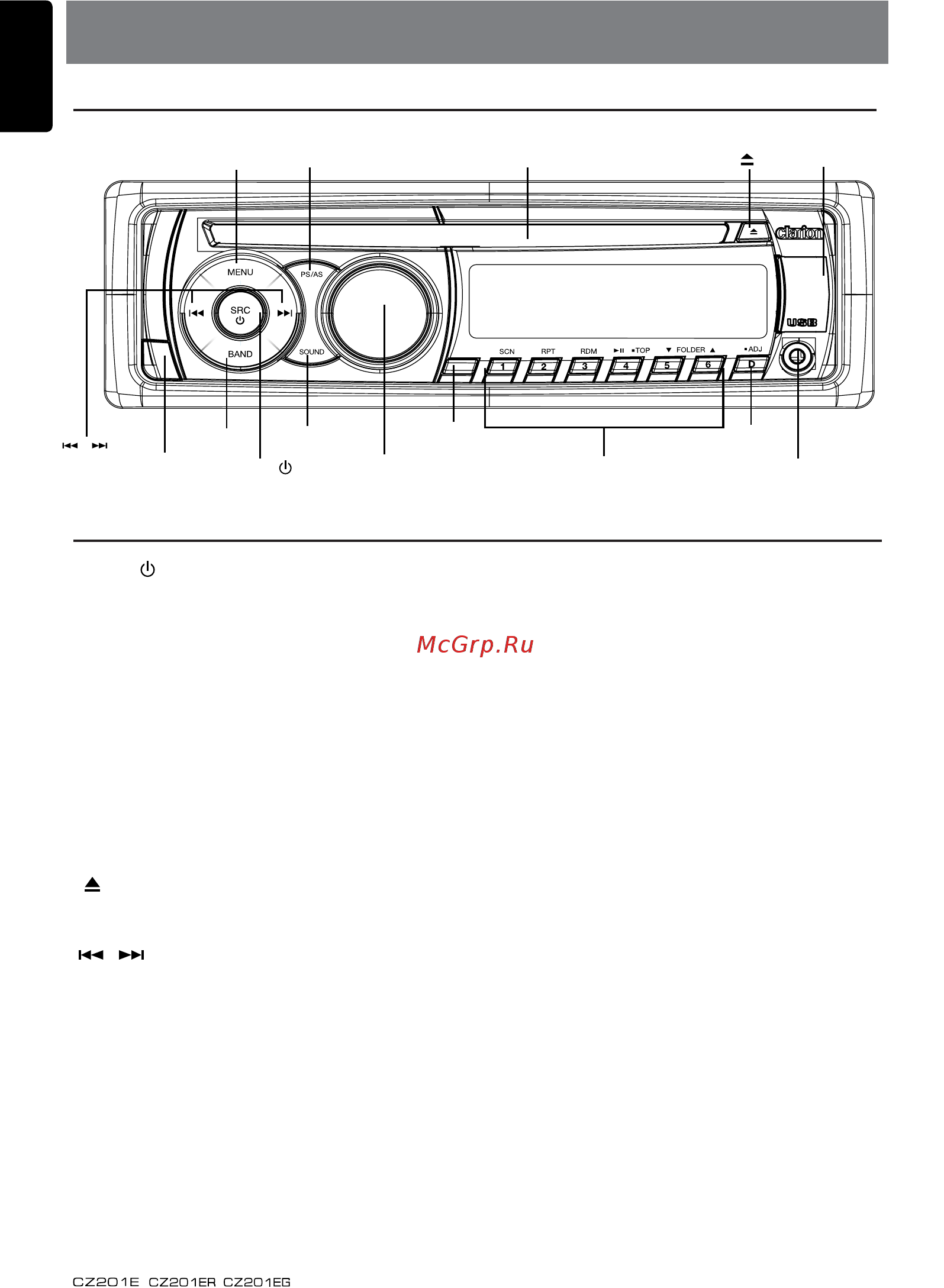

3. CONTROLS
Operational Panel
Names of Buttons
[ , ]
[OPEN]
[BAND]
[MENU]
Disc Slot
[ ]
[PS/AS]
[SOUND]
[VOLUME]
[1~6]
AUX Jack
USB connector
[TA]
TA
[ SRC / ]
[D]
Disc Slot
AUX Jack
USB Connector
